Removal and Installation - Seat Lumbar Actuator: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lumbar knob.
  2. Remove the slide knob and recline knob.
  3. Remove the two screws and separate seat cushion outer finisher (LH) (1) from the seat.
    GNSDB121676Courtesy of NISSAN NORTH AMERICA, INC.

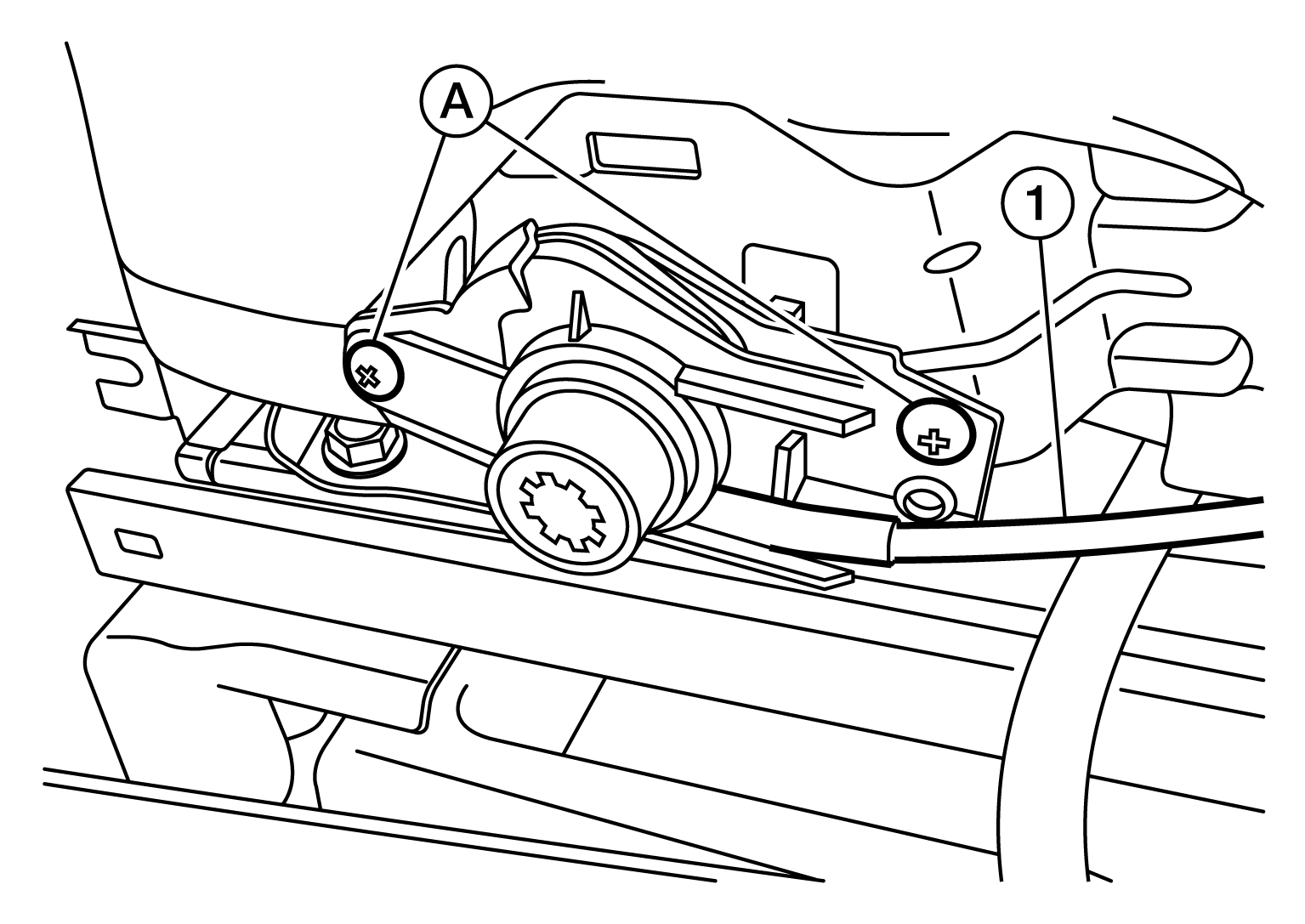

  4. Remove the two lumbar actuator screws (A) and disconnect the cable (1).
    GNSALJIA0605Z-605Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove the lumbar actuator.
