Removal and Installation - Seat Drawer: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the seat drawer all the way out and lift the drawer upward and pull.
    GNSALJIA0645Z-645Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove the two front drawer cover screws (A).
    GNSALJIA0646Z-646Courtesy of NISSAN NORTH AMERICA, INC.

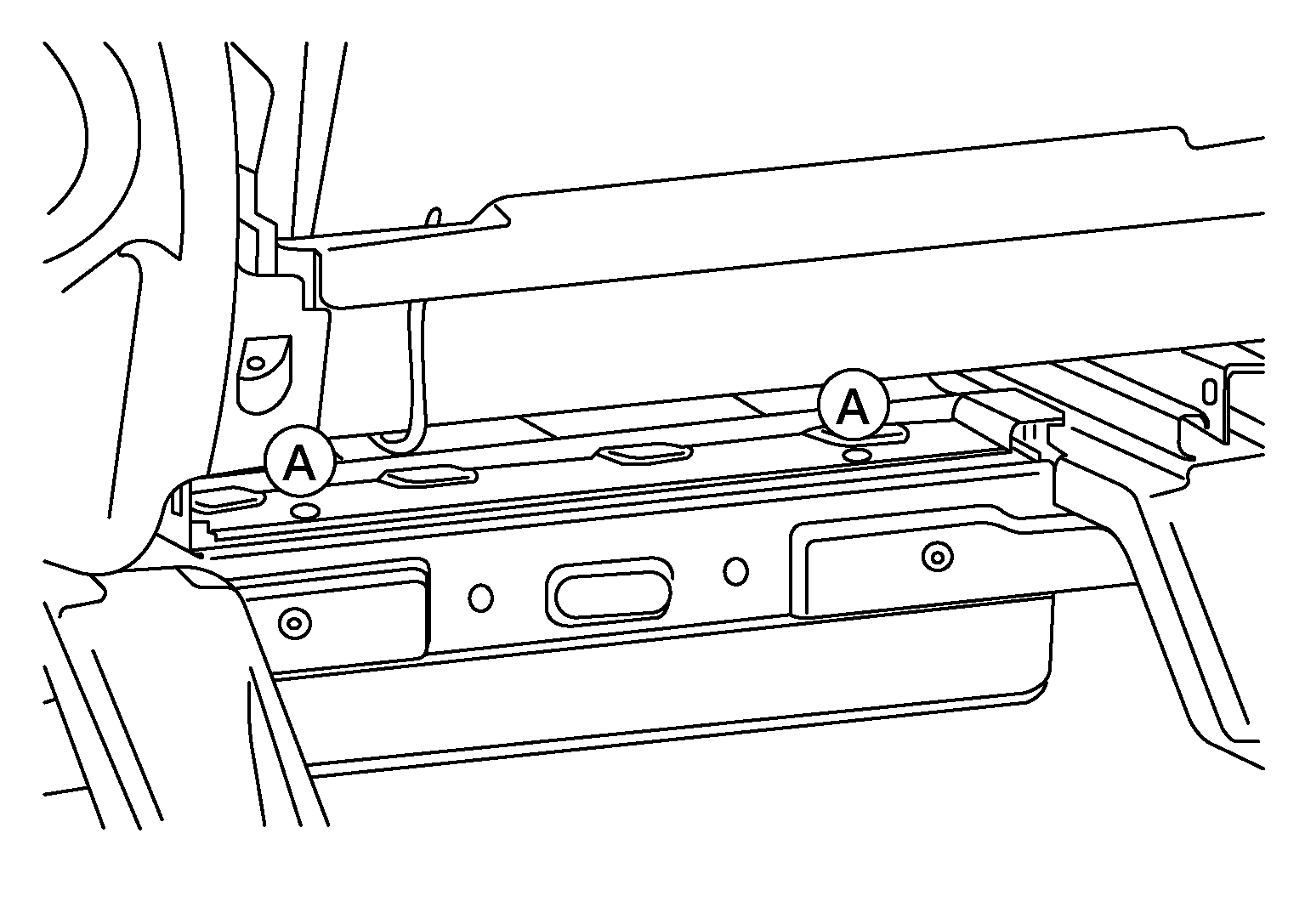

  3. Remove the two rear drawer cover screws (A).
    GNSDB115160Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the drawer cover.

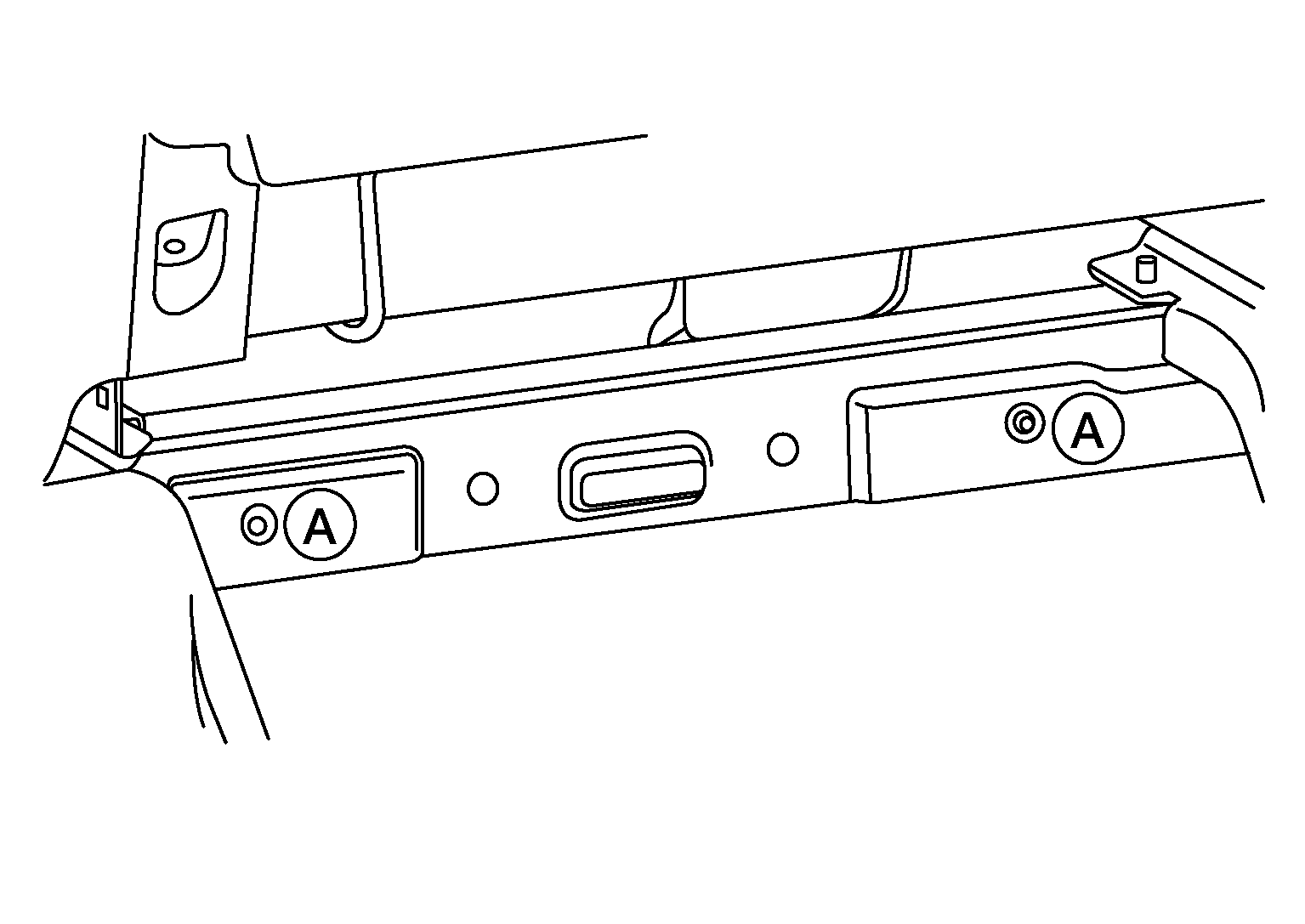

  5. Remove the two rear drawer guide screws from the reinforcement (A).
    GNSDB122359Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove the two front drawer guide screws from the reinforcement.
  7. Remove the drawer guides.
