Removal and Installation - Power Seat Switch: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lumbar knob.
  2. Remove the slide knob and recline knob.

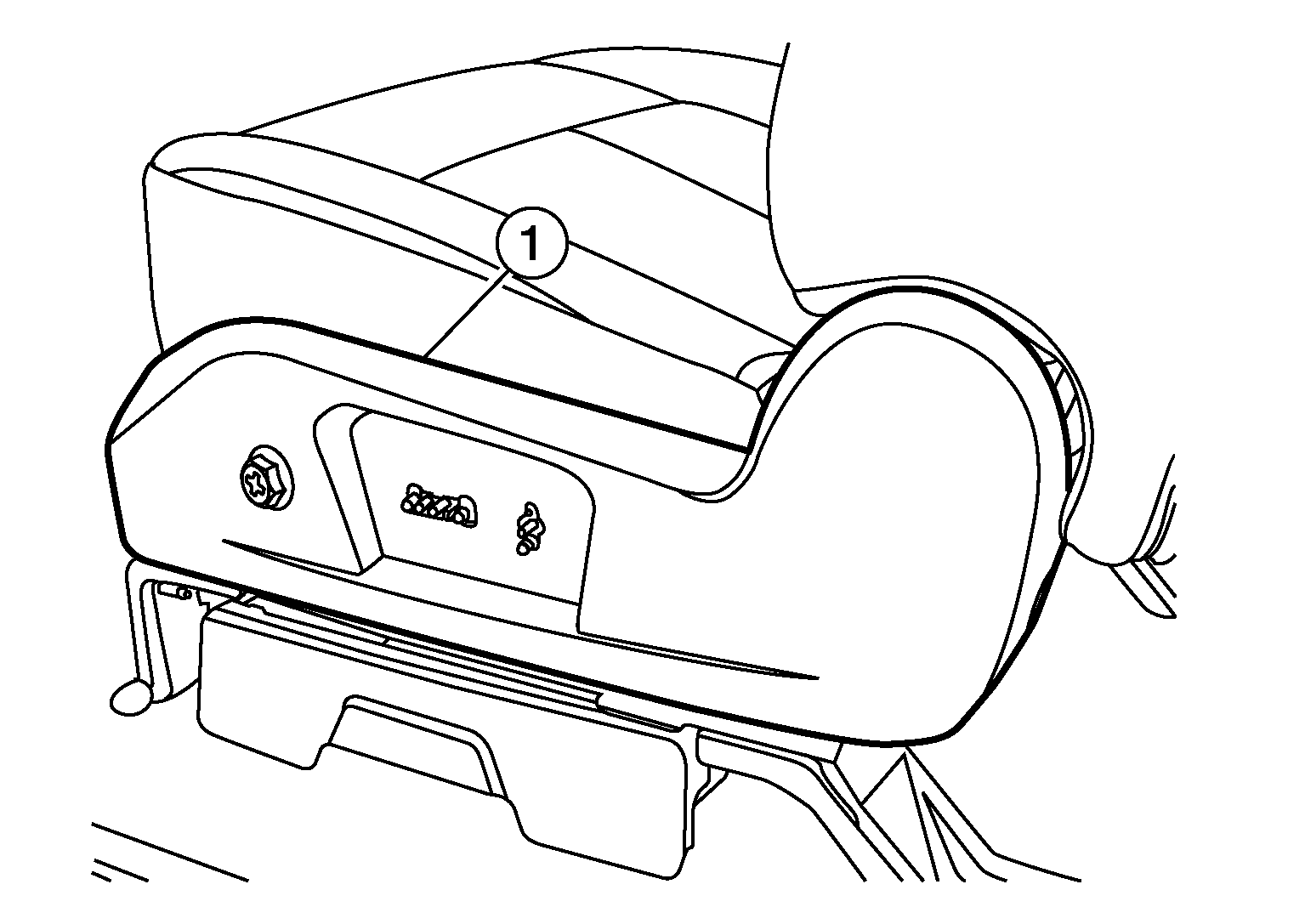

  3. Remove the two screws and separate seat cushion outer finisher (LH) (1) from the seat.
    GNSDB121676Courtesy of NISSAN NORTH AMERICA, INC.

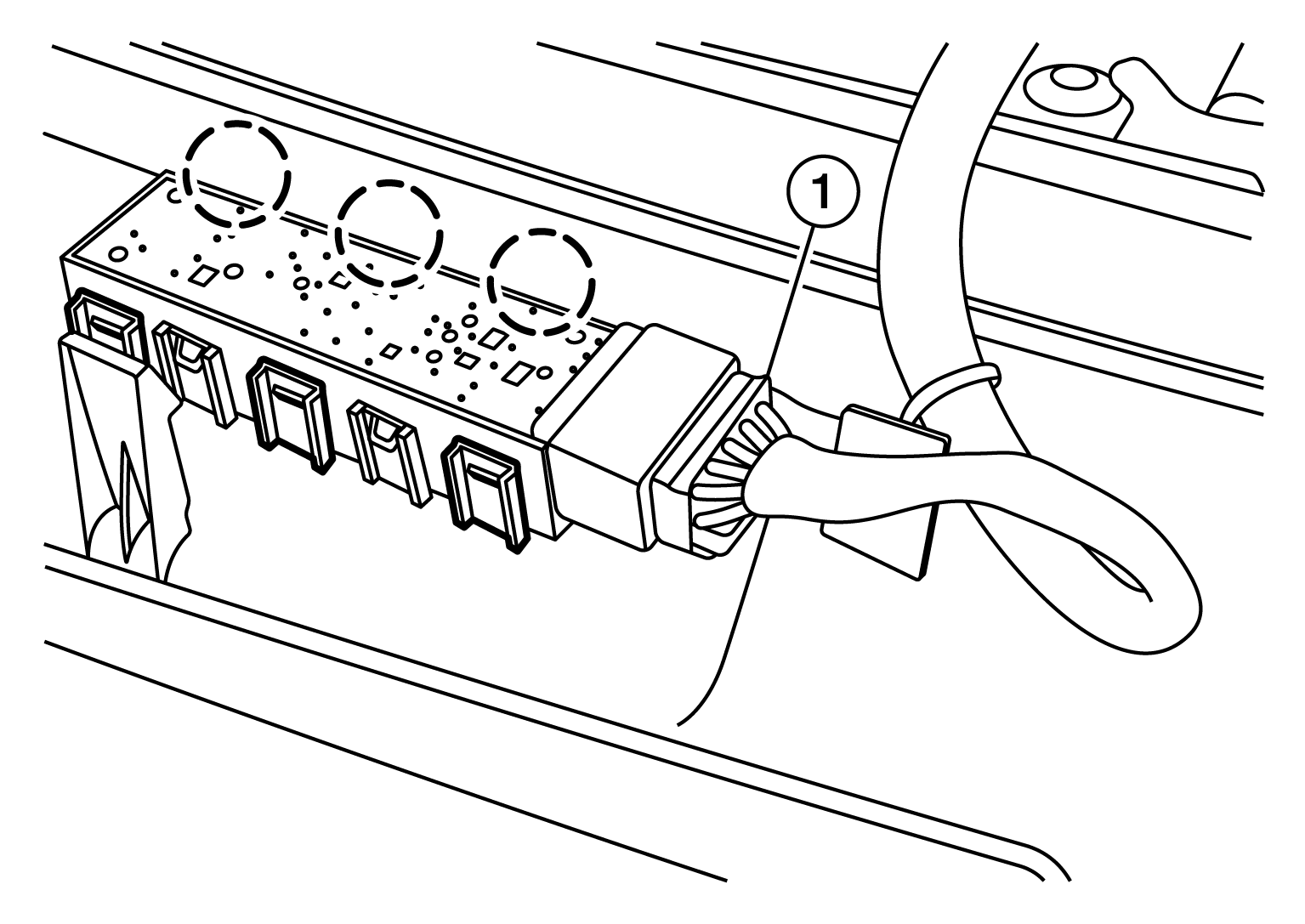

  4. Disconnect the harness connector (1) from seat switch assembly and release the seat switch assembly retainers and remove the seat switch assembly.
    GNSDB113766Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Seat switch assembly retainers
