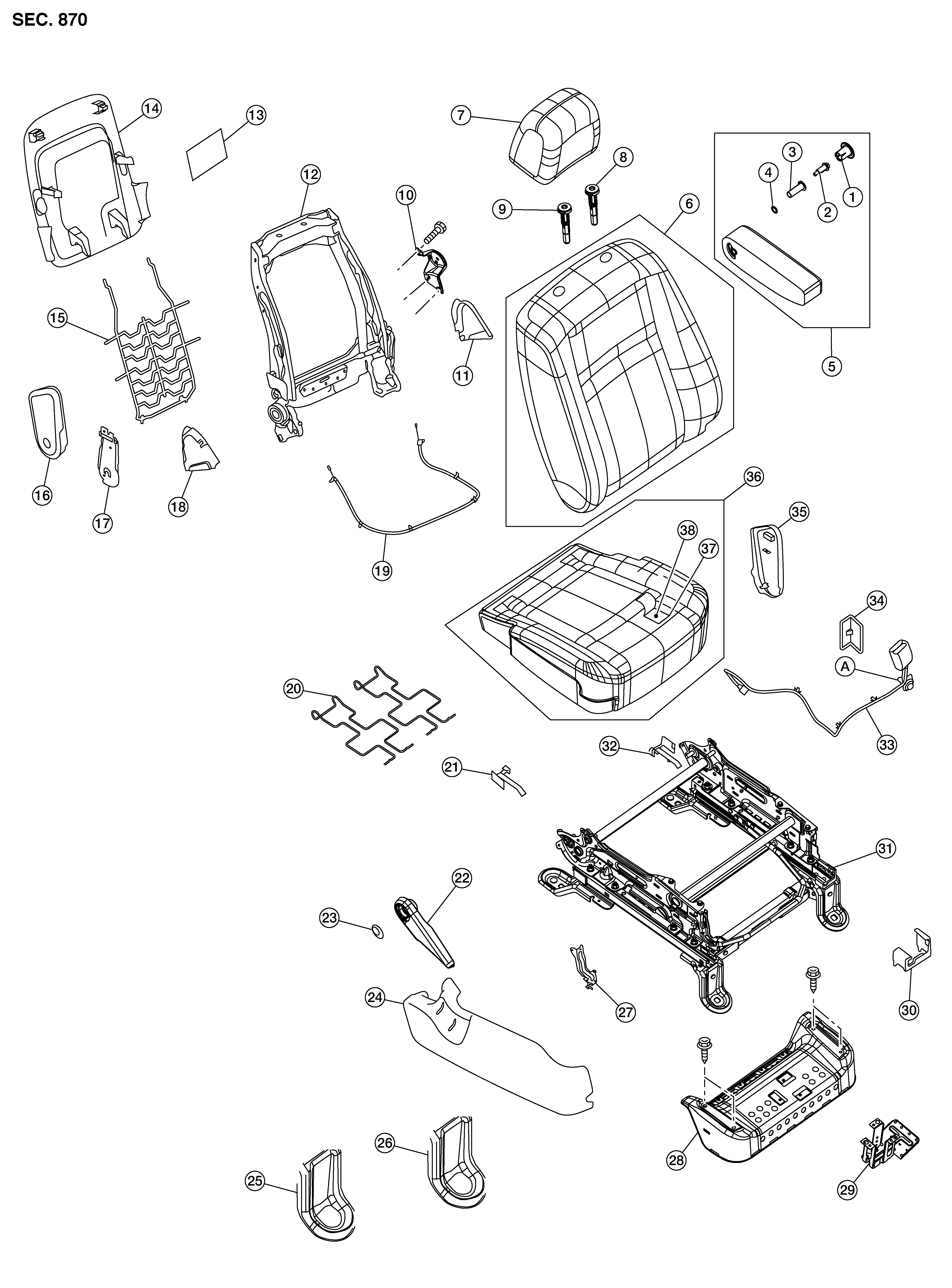

Passenger's Seat

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Armrest bolt cover (if equipped)	2.	Armrest bolt (if equipped)	3.	Armrest insert (if equipped)
4.	Armrest washer (if equipped)	5.	Armrest assembly (if equipped)	6.	Seatback cushion assembly
7.	Headrest	8.	Headrest holder (locked)	9.	Headrest holder (free)
10.	Armrest bracket	11.	Seat cushion outer finisher (LH)	12.	Seatback frame assembly
13.	Upper seat frame cover	14.	Seatback board	15.	Seatback spring
16.	Seat cushion outer finisher (RH)	17.	Fold flat mechanism cover	18.	Seat cushion inner finisher (RH)
19.	Recline/fold flat cable	20.	Seat cushion spring	21.	Rear inner slide finisher (RH)
22.	Recline/fold flat lever	23.	Recline/fold flat lever cover	24.	Seat cushion outer finisher (RH)
25.	Slide rail finisher (RH)	26.	Slide rail finisher (LH)	27.	Seat cushion outer bracket finisher (RH)
28.	Seat cushion frame	29.	Wiring harness bracket	30.	Front inner slide cover
31.	Seat adjuster assembly	32.	Rear inner slide finisher (LH)	33.	Seat belt buckle
34.	Seat cushion inner finisher (LH)	35.	Fold flat inner finisher (LH)	36.	Seat cushion assembly
37.	Seat cushion trim	38.	Seat cushion pad	A.	Refer to Front Seat Belt
