Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

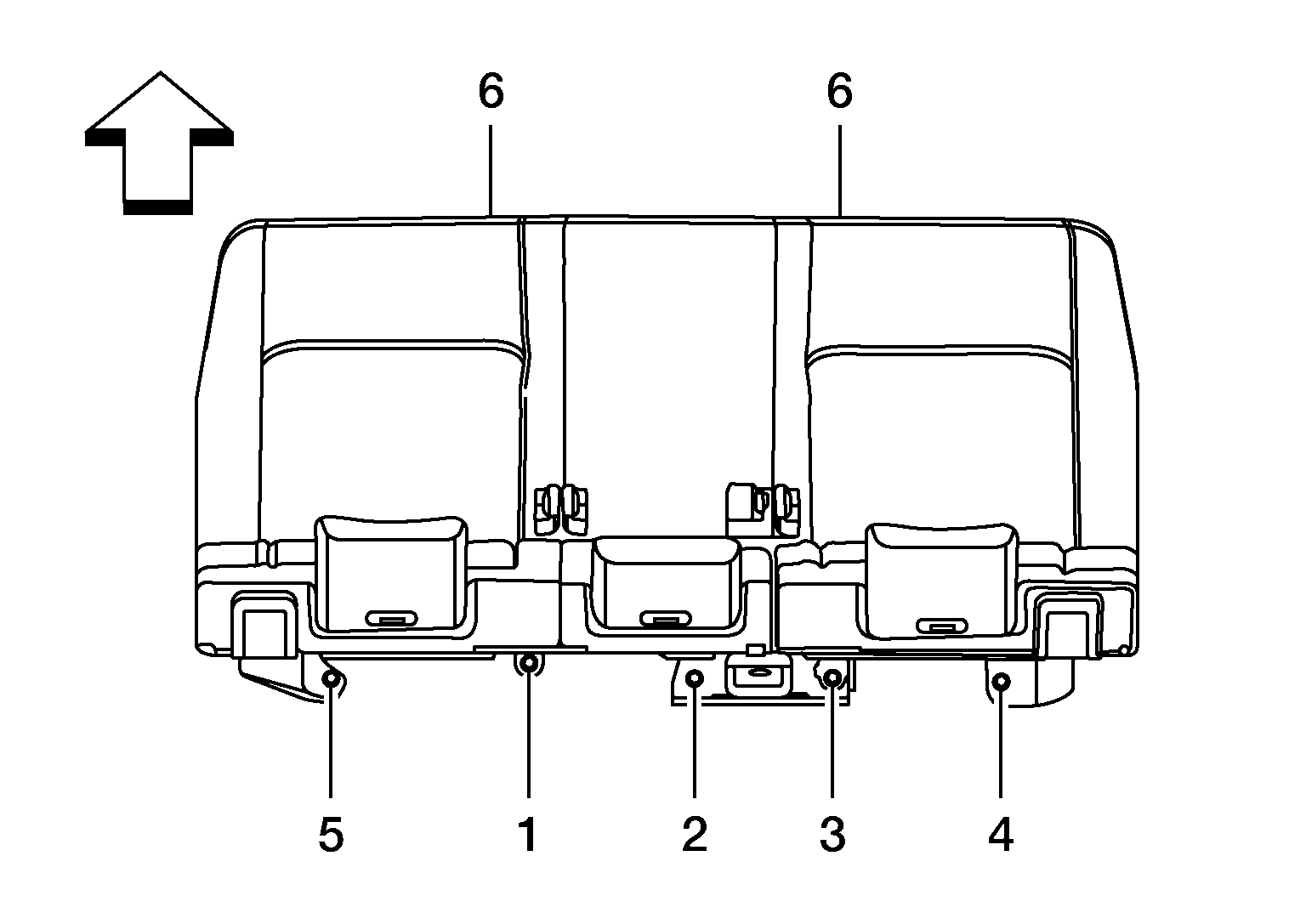

  1. Pull both pull straps to release the seat rear floor latches from the rear seat rail.
    GNSALJIA0741Z-741Courtesy of NISSAN NORTH AMERICA, INC.

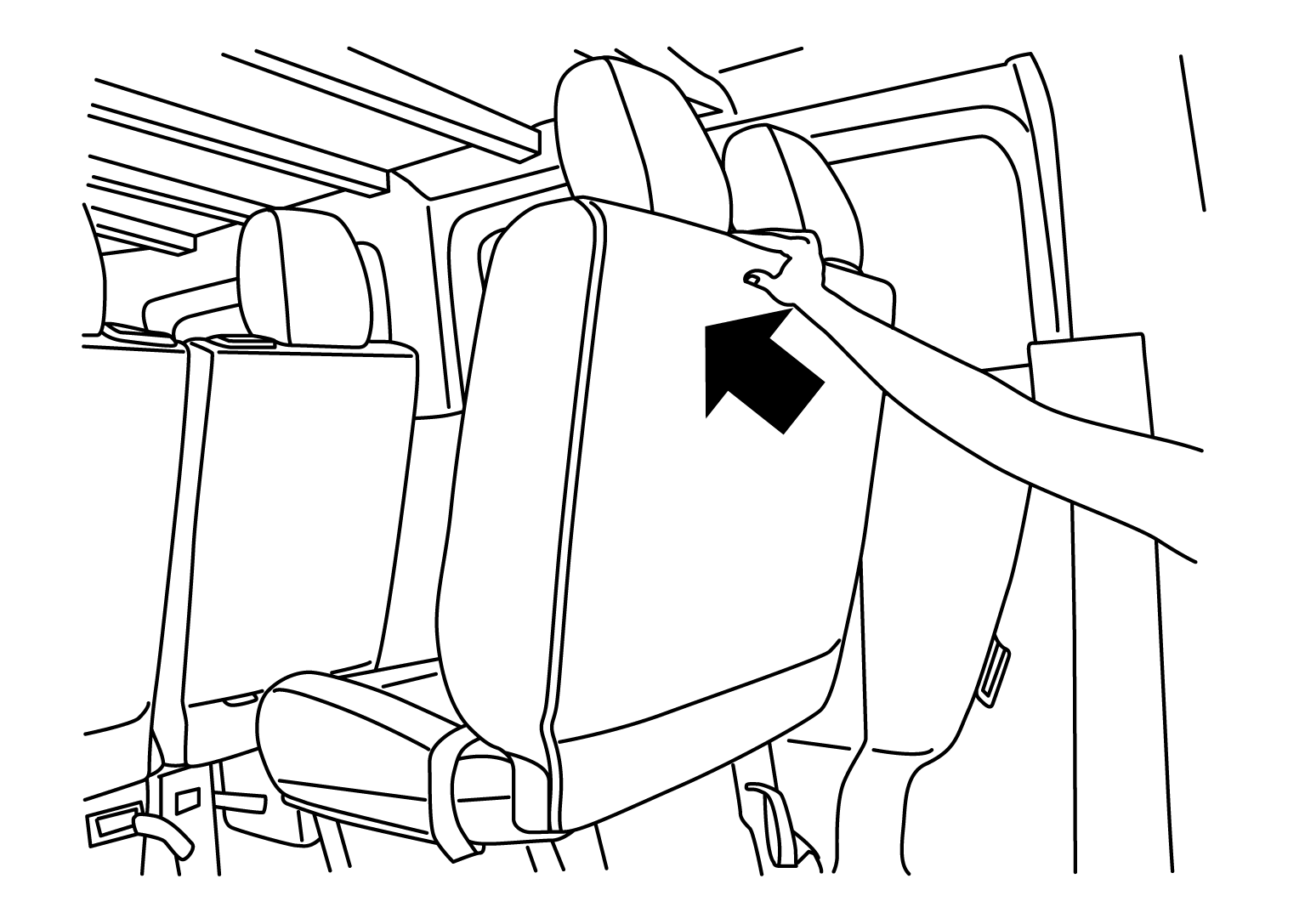

  2. With a rocking motion, push upper edge of the seatback forward while lifting each seat rear floor latch out of the rear seat rail.
  3. With an assistant, while tilted forward, evenly pull the entire seat assembly rearward to disengage the front hooks from the rear seat rail.
    GNSALJIA0742Z-742Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the seat from the vehicle through the back door opening.
