Front Headlining: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front door welt (LH/RH). Refer to Removal and Installation - Front Door .
  2. Remove the slide door welt. Refer to Removal and Installation - Slide Door .
  3. Remove front pillar finisher (LH/RH). Refer to Removal and Installation .
  4. Remove center pillar upper finisher (LH/RH). Refer to Removal and Installation .
    NOTE: For RH side, remove slide door assist grip.
  5. Remove the front room/map lamp.
    • For high roof models, release the pawls beginning at the front edge, using a suitable tool (A), and remove the front room/map lamp (1) from headlining; then disconnect the harness connectors.
      GNSAWJIA0642Z-642Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL : Front

      SYMBOL : Pawl

    • For standard roof models, release the metal clips beginning at the front edge, using a suitable tool (A), and remove the front room/map lamp (1) from headlining; then disconnect the harness connectors.
      GNSDB121879Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL : Metal clip

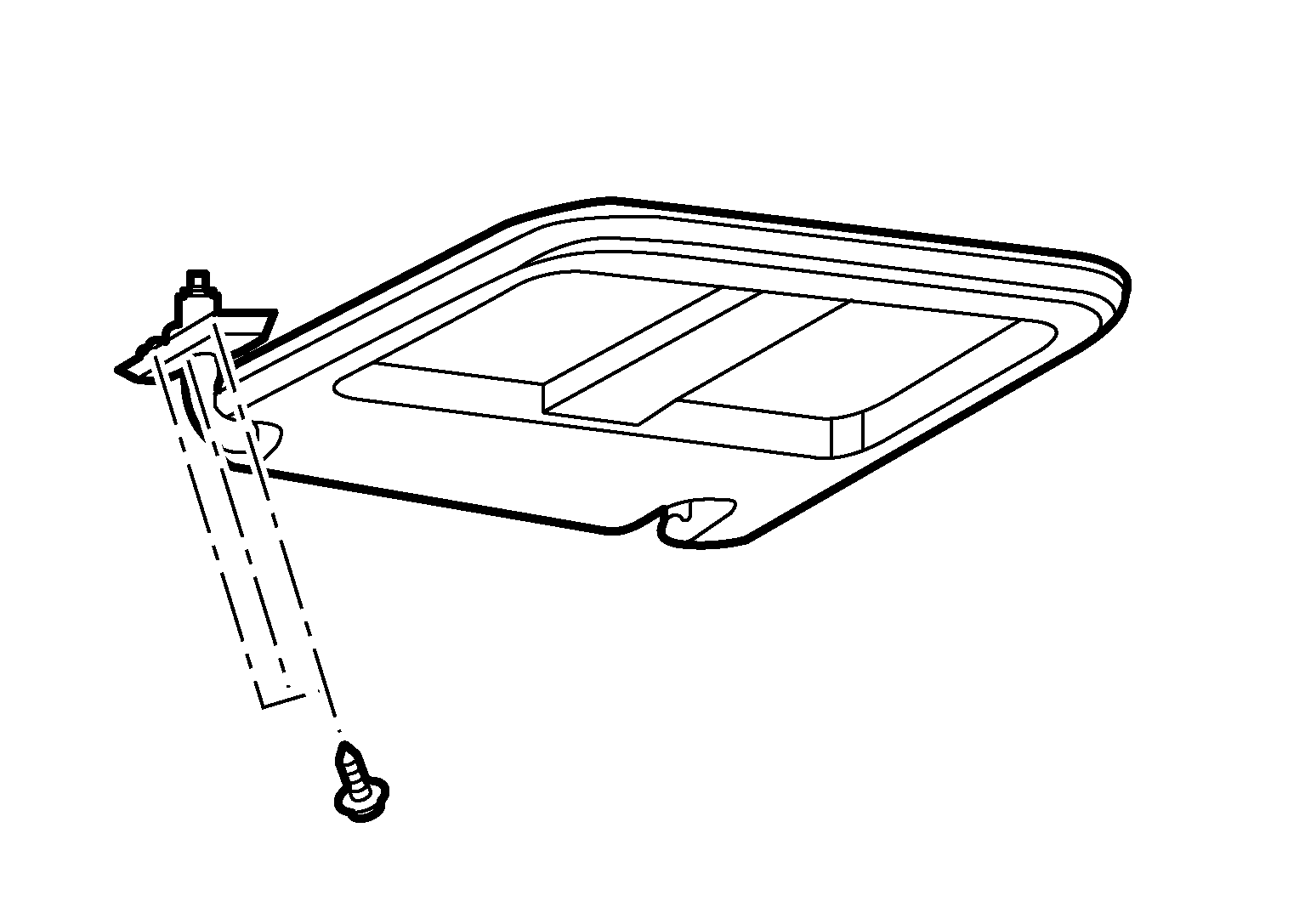

  6. Remove the screws, then remove sun visor assemblies (LH/RH).
    GNSAWJIA0643Z-643Courtesy of NISSAN NORTH AMERICA, INC.

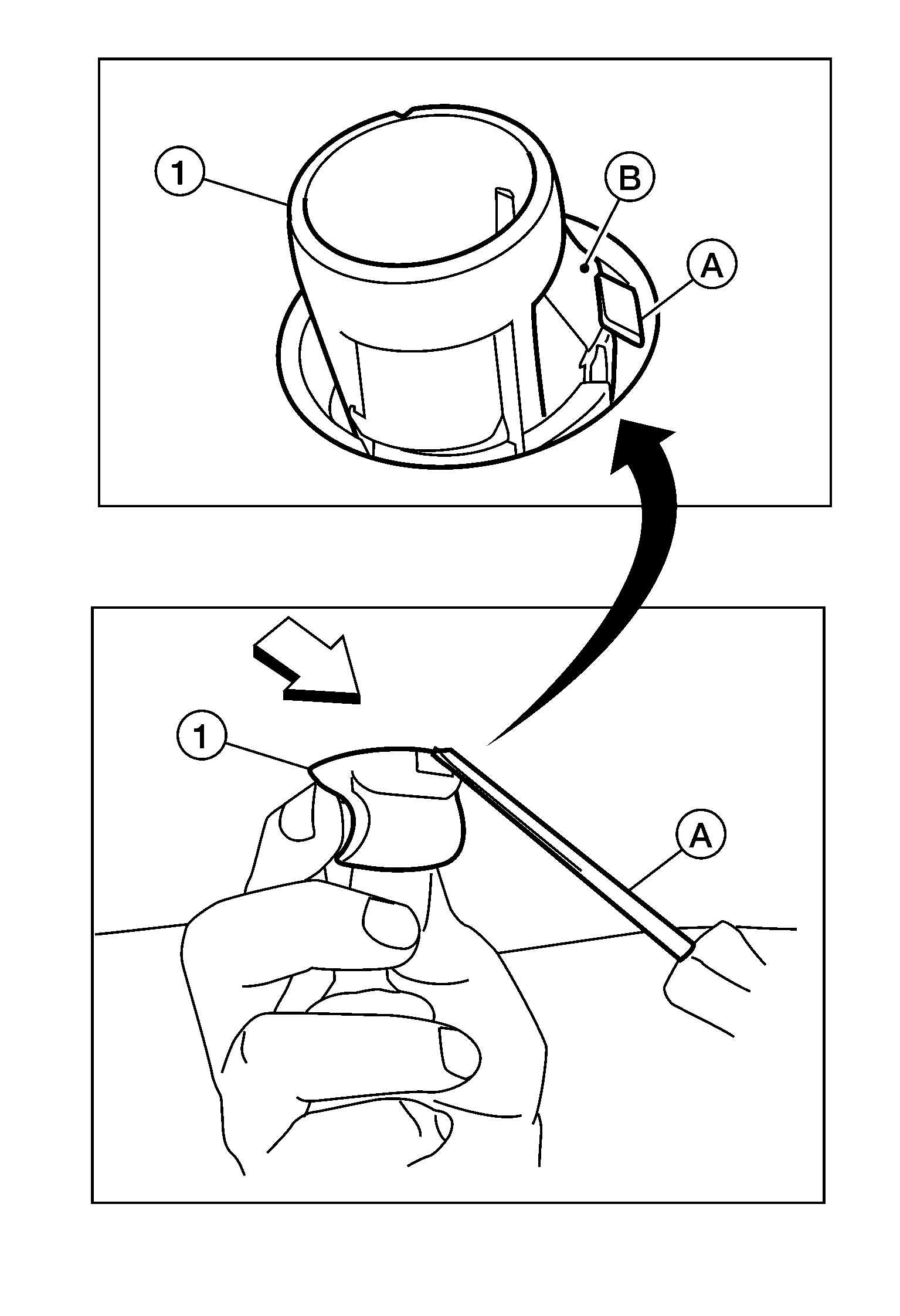

  7. Insert a suitable thin tool (A) at approximately a 30 degree angle into the sun visor holder notch on the front of the sun visor holder (1) and press in the locking tab (B) to release it. While holding in lock tab (B), turn the sun visor holder (1) 90 degrees to release it from the headliner.
    GNSALJIA0537Z-537Courtesy of NISSAN NORTH AMERICA, INC.
    • If the sun visor holder (1) does not fully rotate, make sure that the suitable thin tool (A) is pressing in on the locking tab (B) and is not positioned under locking tab (B). Reinsert the suitable thin tool (A) as necessary to release the locking tab (B).
    • SYMBOL : Front
    CAUTION: Do not force the sun visor holder when removing as the locking tab may be damaged if the suitable thin tool is not positioned correctly.
  8. Remove the headlining.
    1. For high roof models:
      1. Remove the bolts and release the pawls, then remove overhead roof console.
      2. Release the clips and remove the headlining.

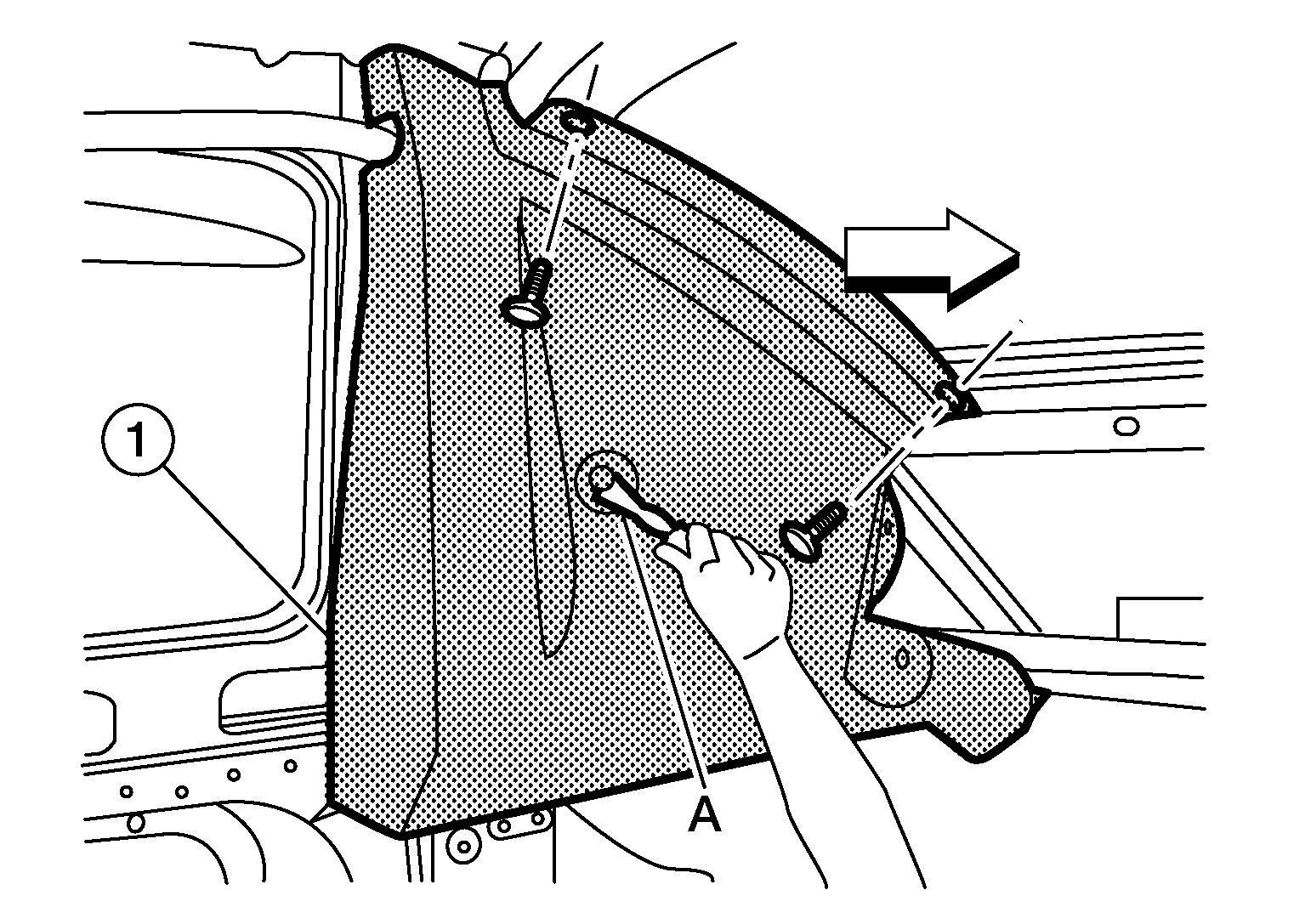

      3. Release the clips, using a suitable tool (A), then remove the LH/RH side headlining.
        GNSAWJIA0638Z-638Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL : Front

        NOTE: For RH side headlining only, remove the screws then remove the cargo hook.
    2. For standard roof models:
      1. Release the clips and remove the headlining.

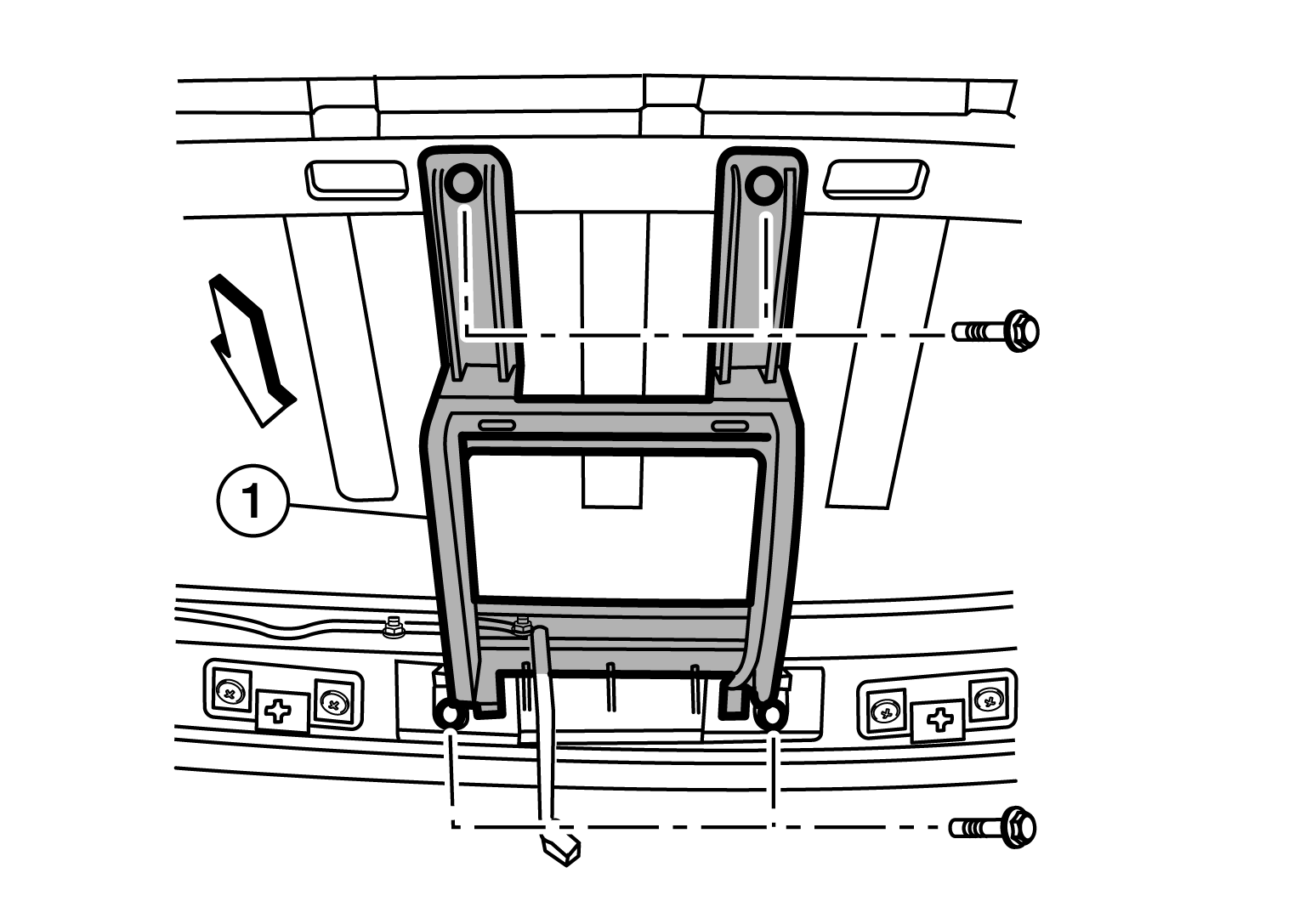

      2. Remove the bolts, then remove the front room/map lamp bracket (1) from the roof.
        GNSDB120225Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL : Front
