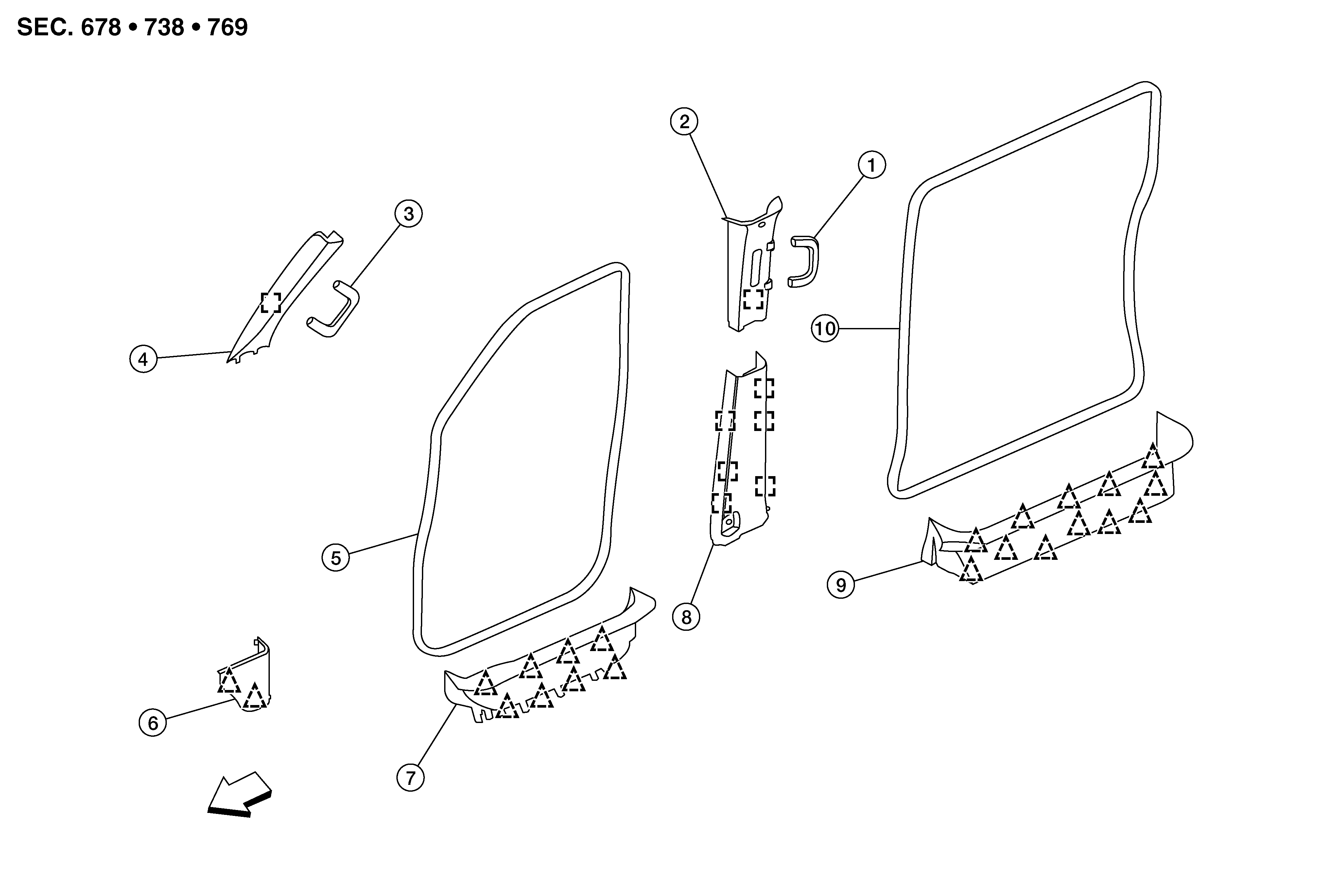

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Slide door assist grip
|
2.
|
Center pillar upper finisher
|
3.
|
Front assist grip
|
|
4.
|
Front pillar finisher
|
5.
|
Front door welt
|
6.
|
Lower dash side finisher
|
|
7.
|
Front door kicking plate
|
8.
|
Center pillar lower finisher
|
9.
|
Slide door kicking plate
|
|
10.
|
Slide door welt
|
|
Metal clip
|
|
Clip
|
