Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Assembly is in the reverse order of disassembly.

NOTE:
  • Install oil pump inner rotor with the groove facing the oil pump cover side.
  • Install the oil pump outer rotor with the punch mark facing the oil pump cover side.

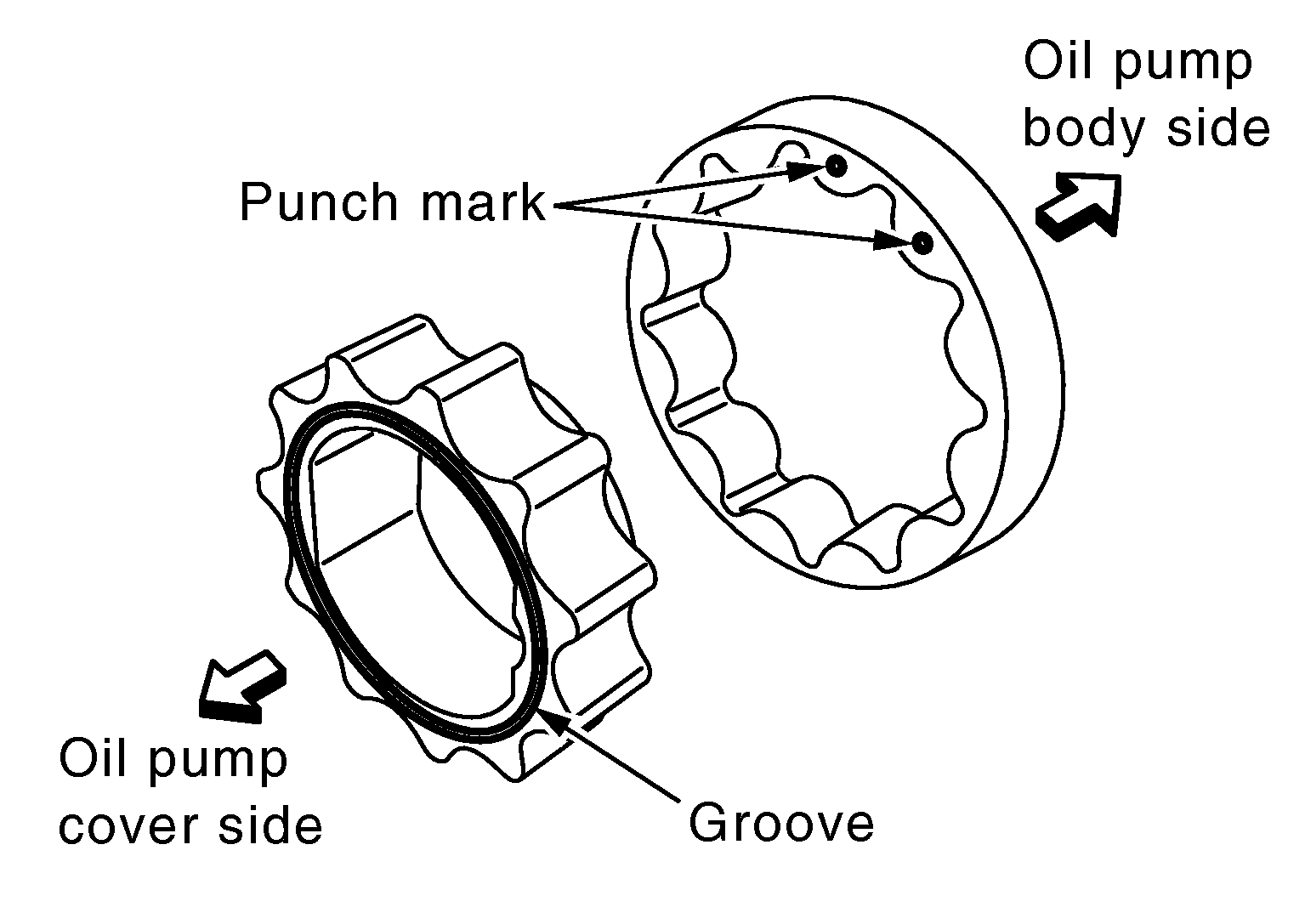

G04146906Courtesy of NISSAN NORTH AMERICA, INC.
