Exploded View

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

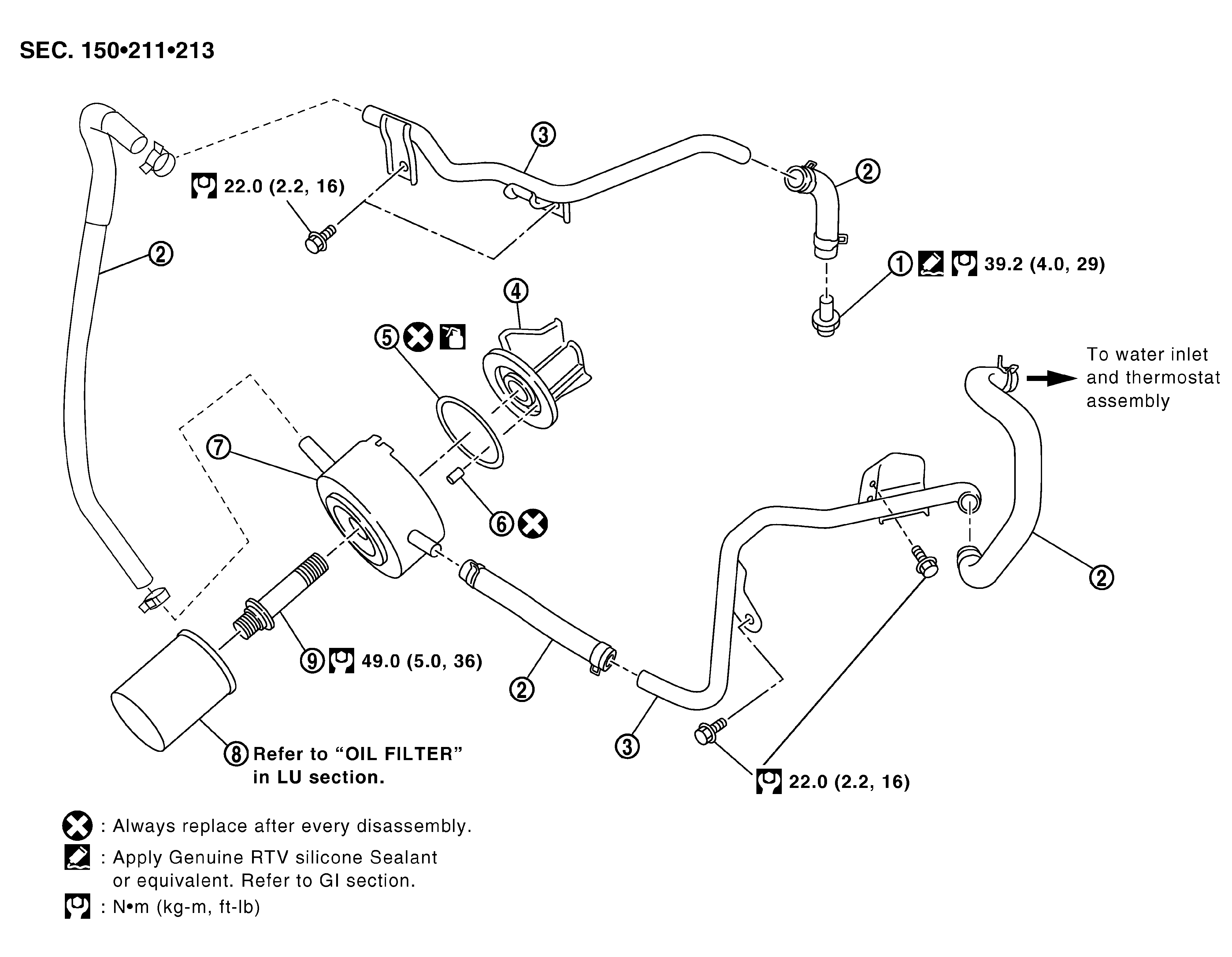

Fig 1: Oil Cooler Replacement Components With Torque Specifications
G04146899Courtesy of NISSAN NORTH AMERICA, INC.

1.

Water connector

2.

Water hose

3.

Water pipe

4.

Oil pan (upper) front side

5.

O-ring

6.

Relief valve

7.

Oil cooler

8.

Oil filter

9.

Connector bolt
