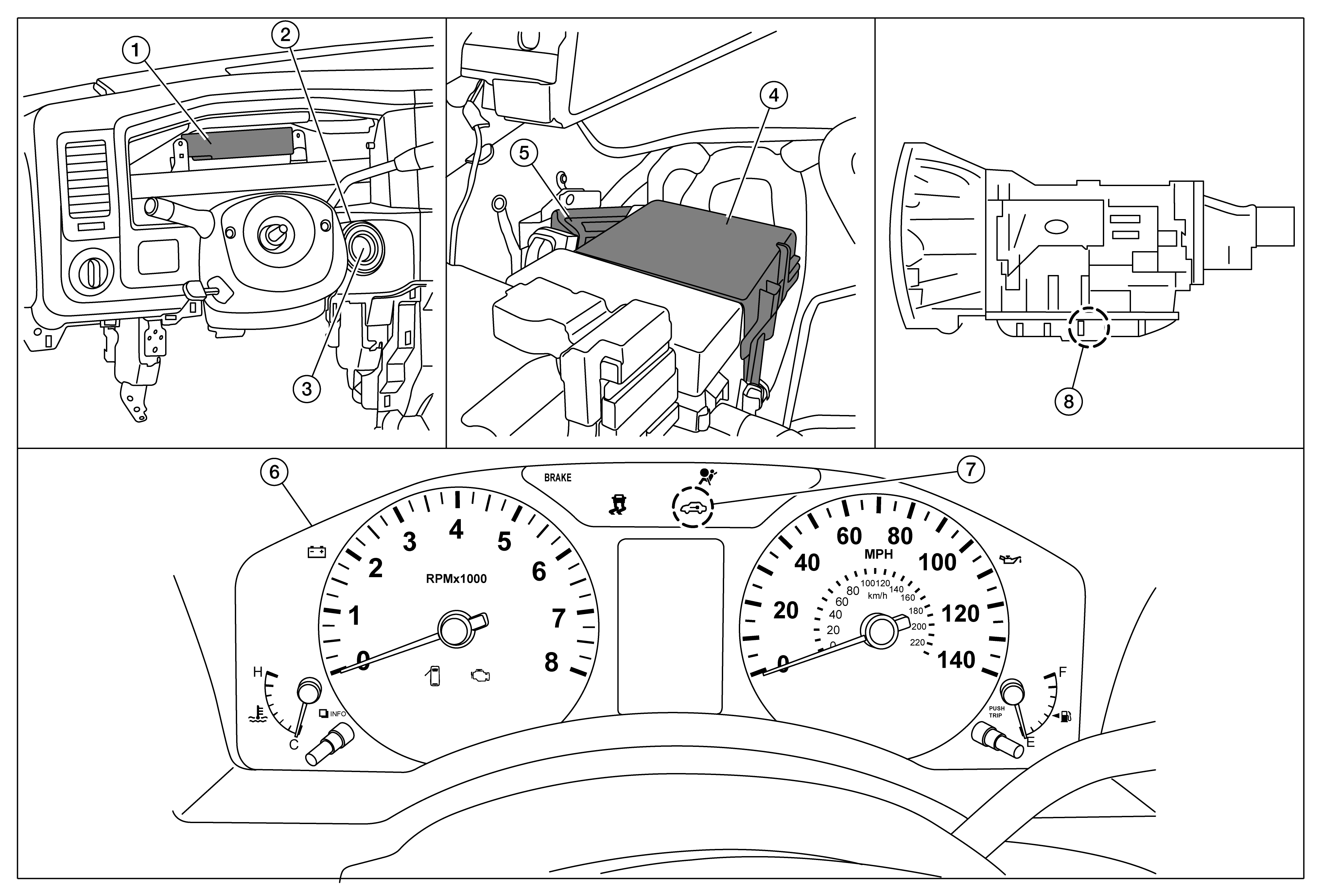

Component Parts Location
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
BCM
(view with steering wheel and combination meter removed)
|
2.
|
NATS antenna amp.
|
3.
|
Ignition switch
|
|
4.
|
IPDM E/R
|
5.
|
ECM
|
6.
|
Combination meter
|
|
7.
|
Security indicator lamp
|
8.
|
A/T assembly (with built in TCM)
|
