Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. Refer to Battery Disconnect .
  2. Remove cluster lid A. Refer to Removal and Installation .

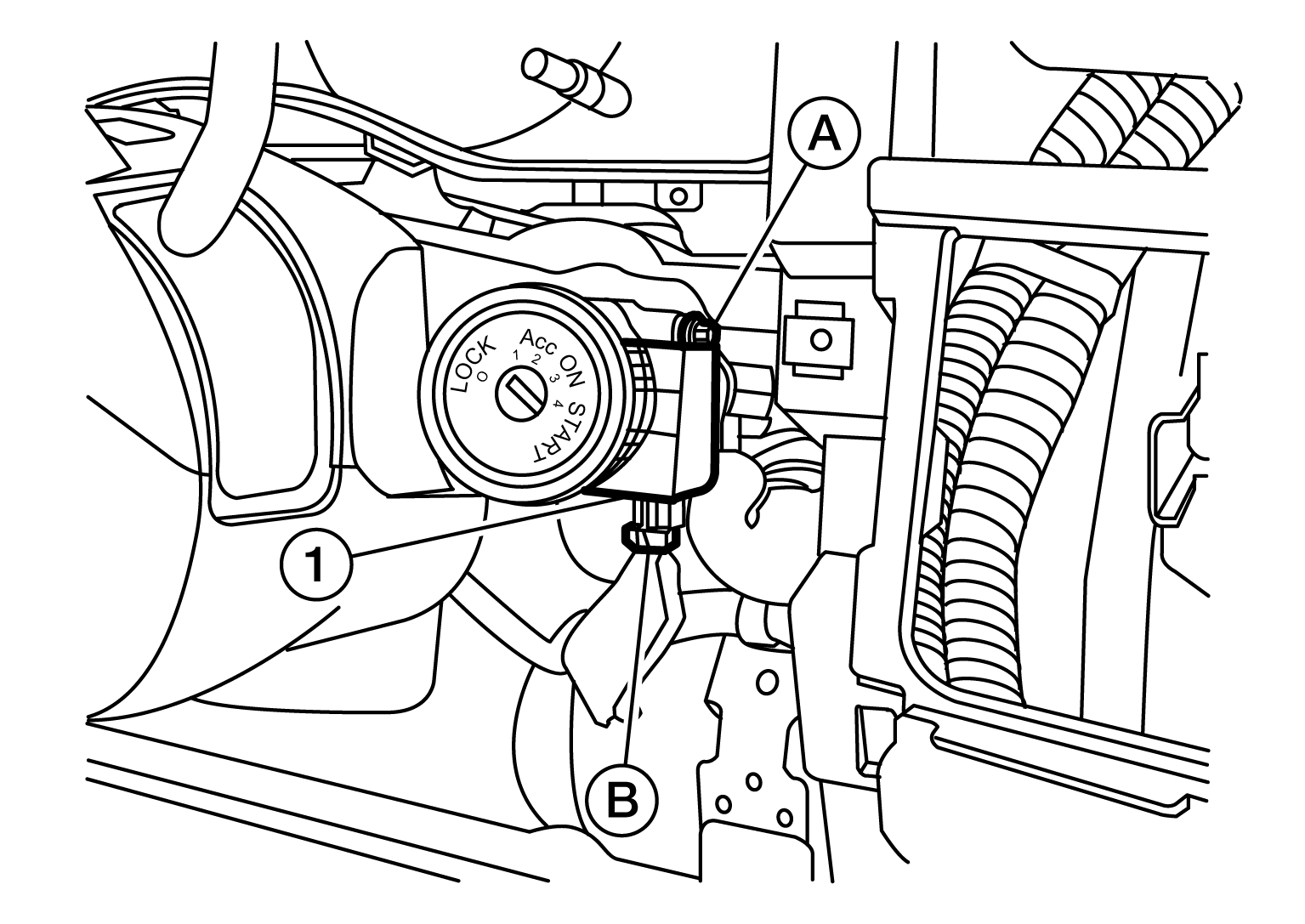

  3. Disconnect the harness connector (B) from NATS antenna amp. (1).
    GNSDB124254Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the NATS antenna amp. bolt (A) and the NATS antenna amp. (1).
