Seat Belt Retractor - RH Seat

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Removal

  1. Remove the third row RH seat. Refer to Removal and Installation .
  2. Remove the seat rear floor latch cover screws, then remove the seat rear floor latch cover from the seat cushion frame. Refer to Disassembly and Assembly - RH Seat .

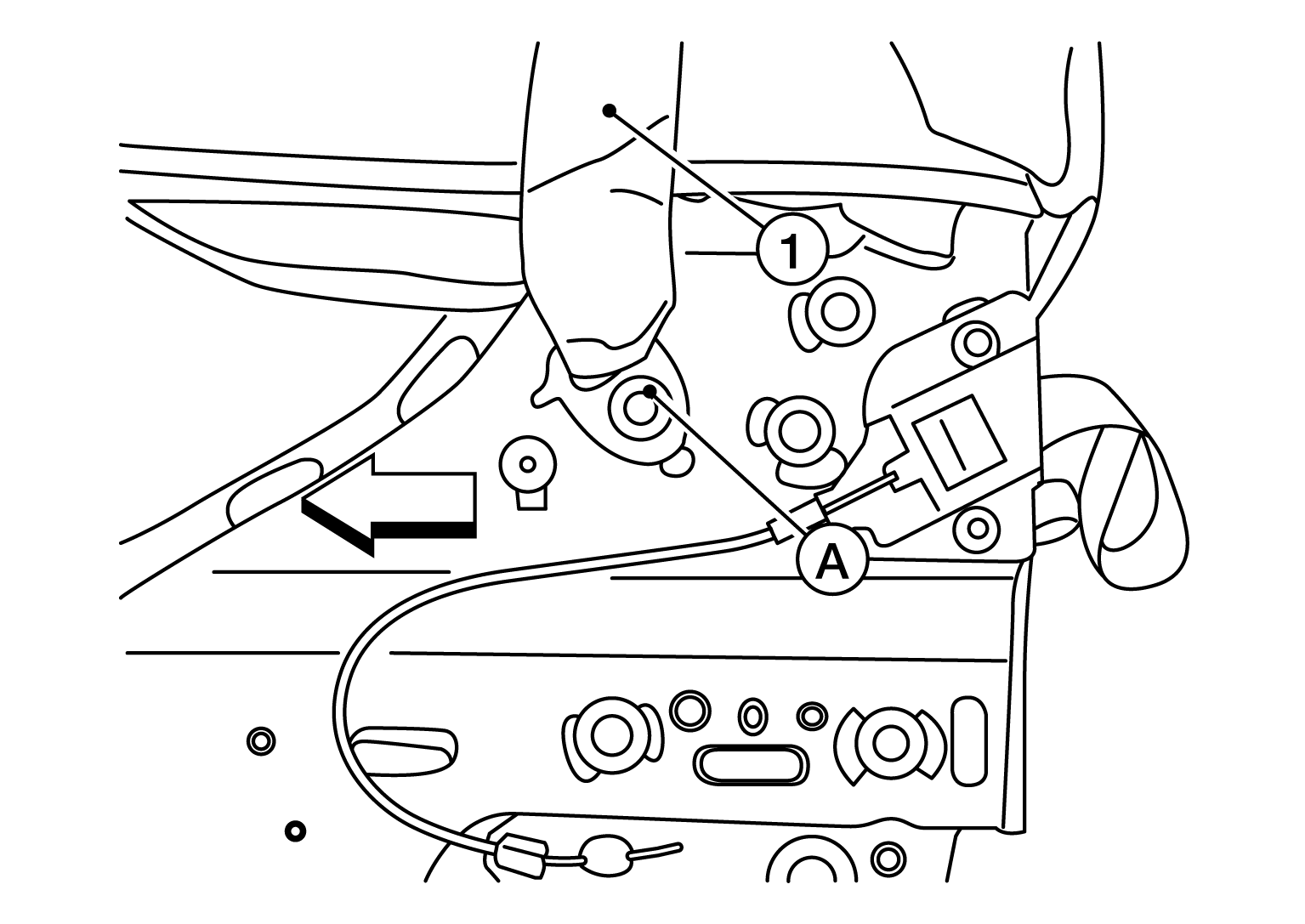

  3. Remove seat belt retractor lower anchor bolt (A) from the seat belt (1).
    GNSDB112831Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

  4. Remove the RH seat seatback trim. Refer to Disassembly and Assembly - RH Seat .
  5. Release the push pin and remove the seat belt retractor shield.
  6. Remove the seat belt retractor upper anchor bolt (A), then remove the seat belt retractor (1).
    GNSDB118429Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

Installation

Installation is in the reverse order of removal.
