Seat Belt Retractor - LH Bench Seat

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Removal

  1. Remove the third row LH bench seat. Refer to Removal and Installation .
  2. Remove seat belt retractor.

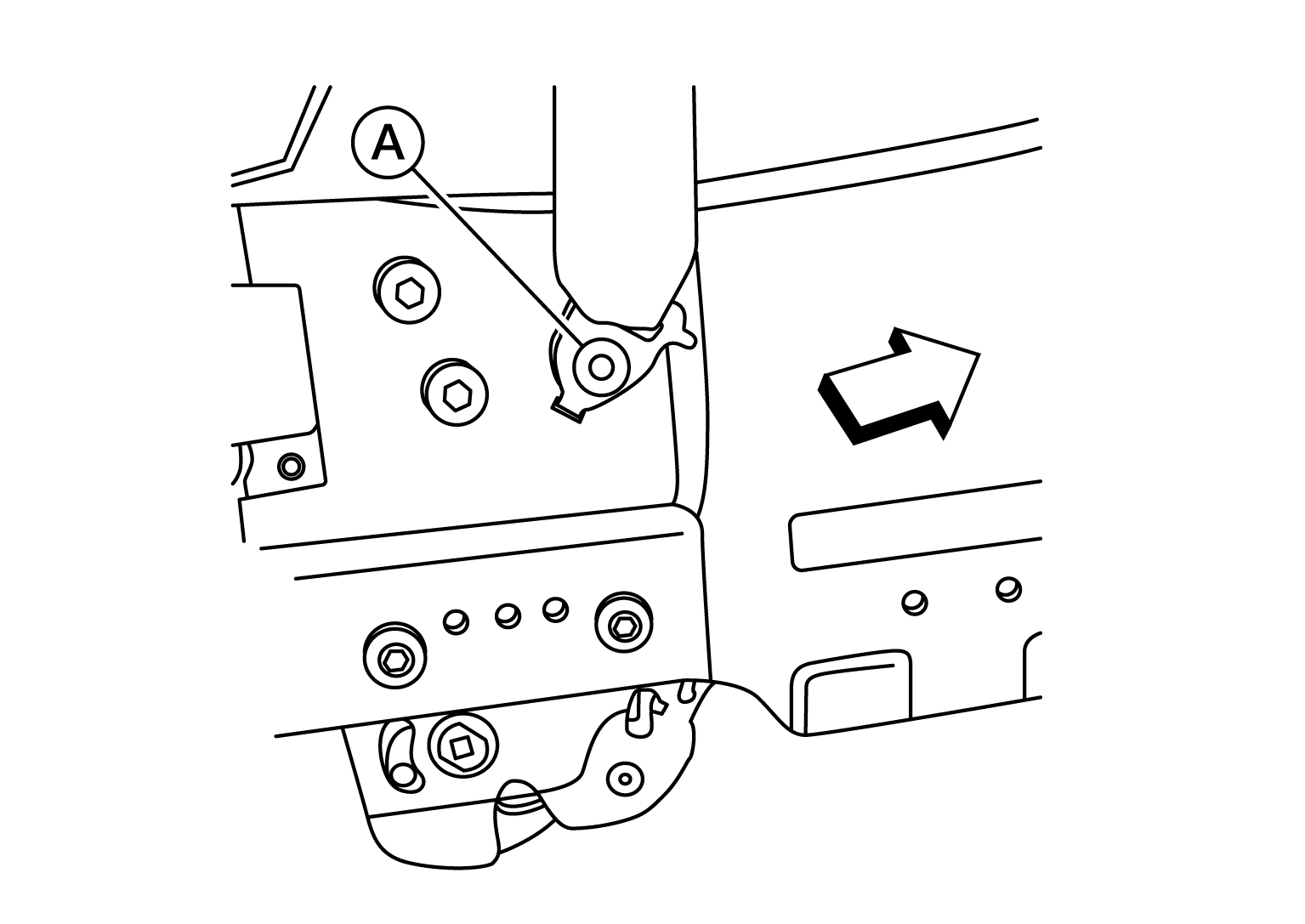

    1. For seat belt retractor (LH), remove the lower anchor bolt (A) from the seat belt.
      GNSDB117308Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL : Front

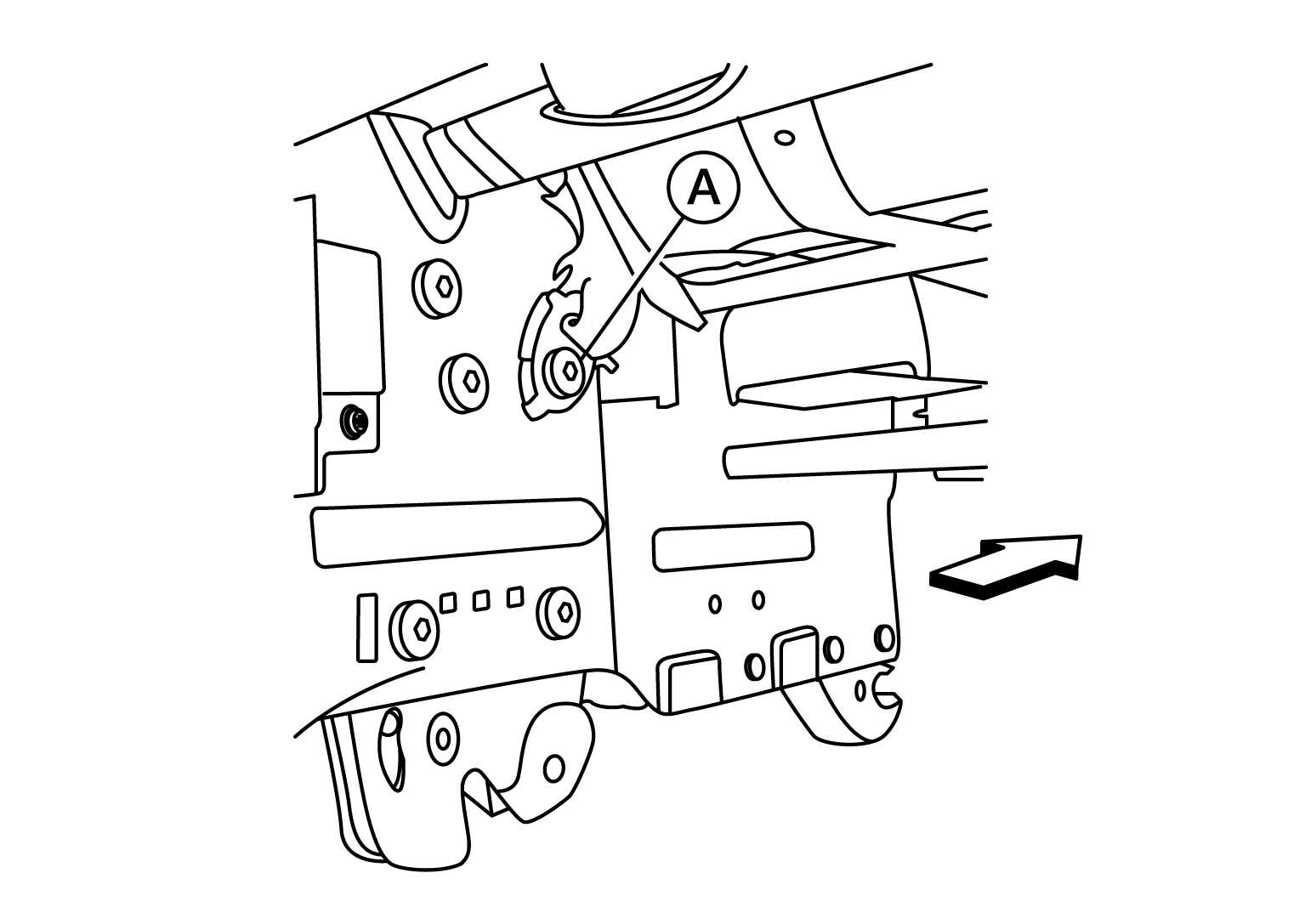

    2. For seat belt retractor (center), remove the lower anchor bolt (A) (along with the seat belt buckle-center), then thread the seat belt through the opening in the seat cushion trim.
      GNSDB111951Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL : Front

  3. Remove the LH bench seat seatback trim, refer to Disassembly and Assembly - LH Bench Seat .
  4. Release the push pin and remove the seat belt retractor shield.

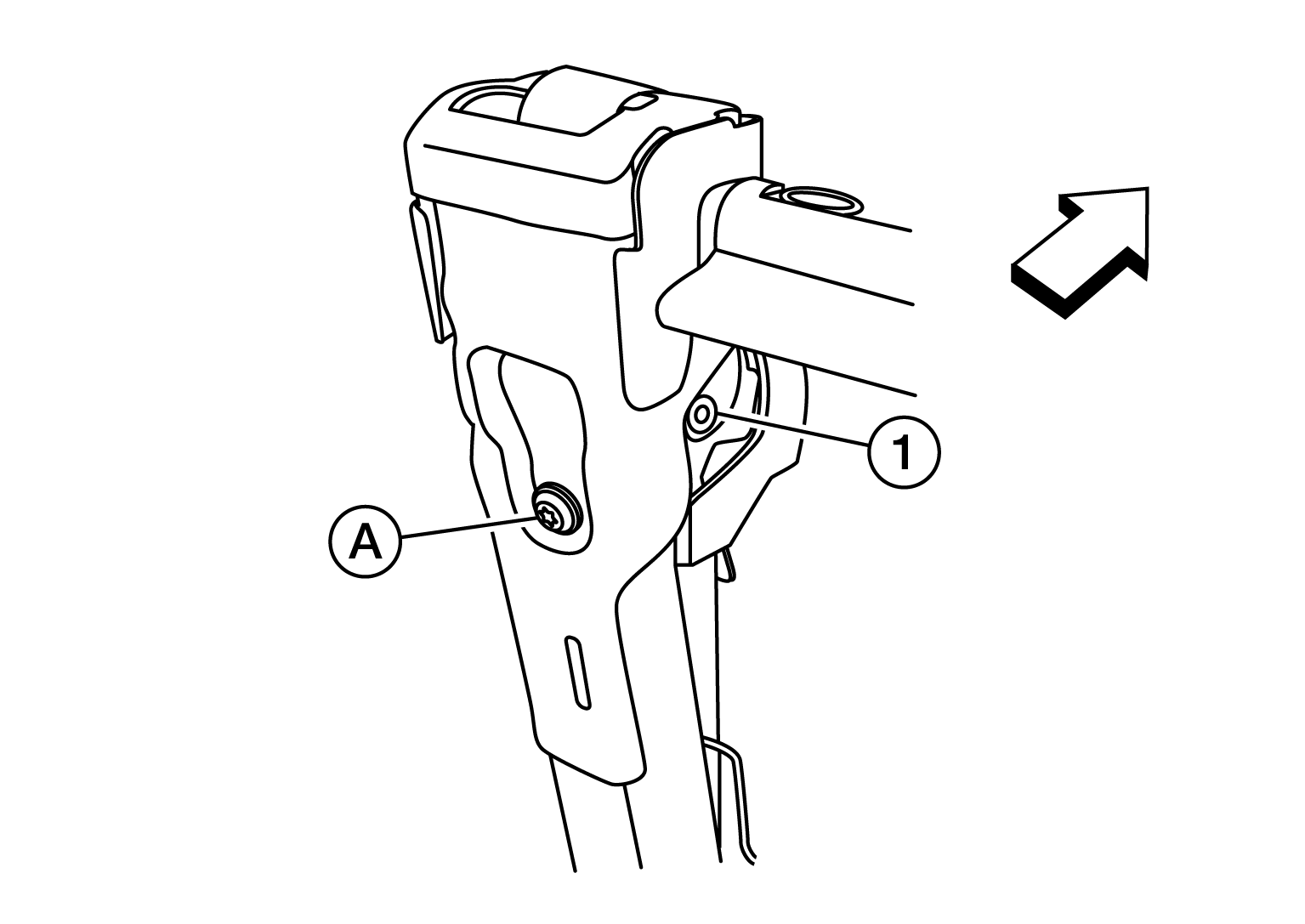

  5. Remove the seat belt retractor upper anchor bolt (A), then remove the seat belt retractor (1).
    GNSDB118429Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

Installation

Installation is in the reverse order of removal.
