Seat Belt Buckle - RH Seat

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Removal

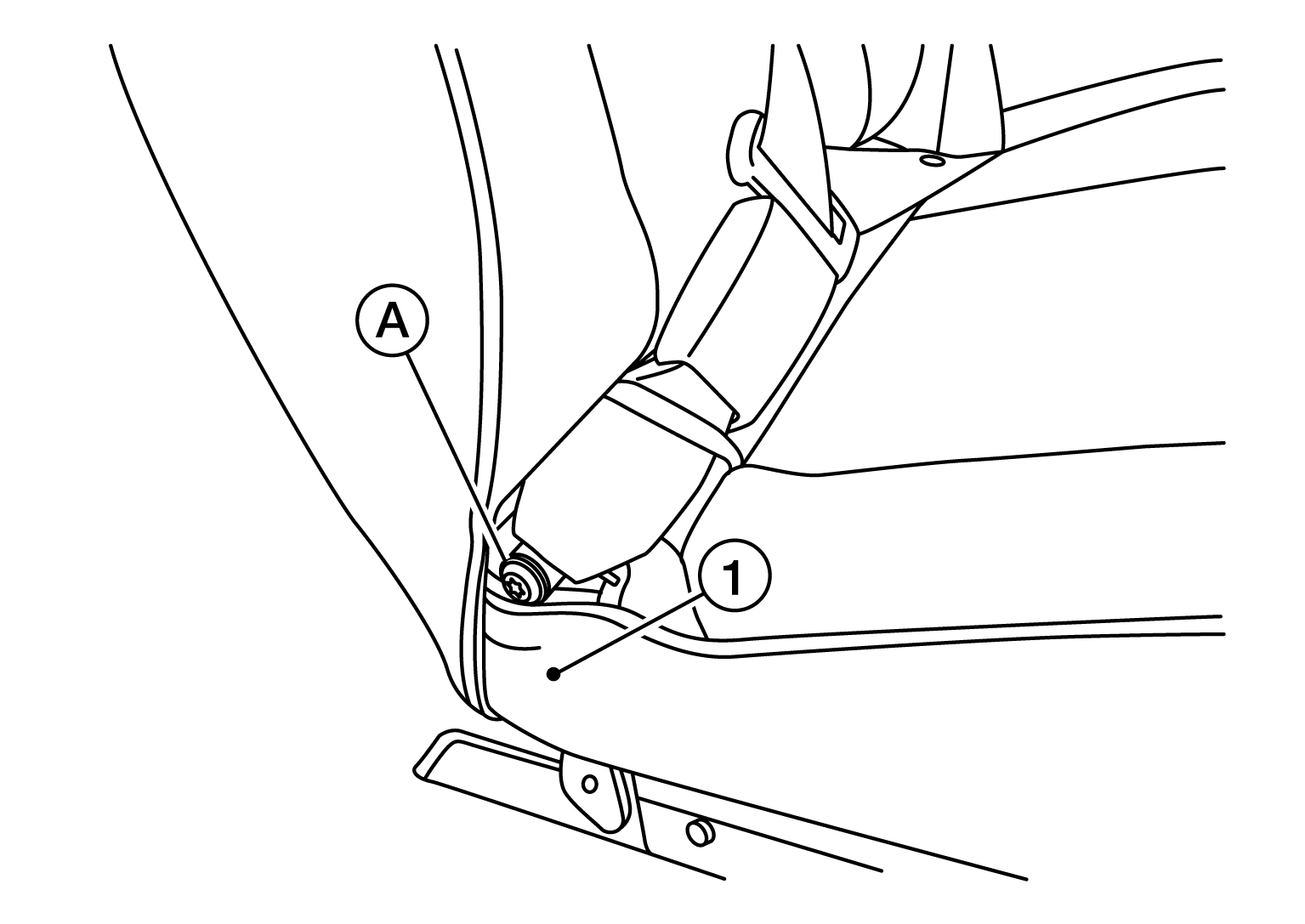

Pull back the seat cushion trim (1) enough to expose the seat belt buckle anchor bolt (A).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove seat belt buckle anchor bolt (A), then remove the seat belt buckle.

Installation

Installation is in the reverse order of removal.
