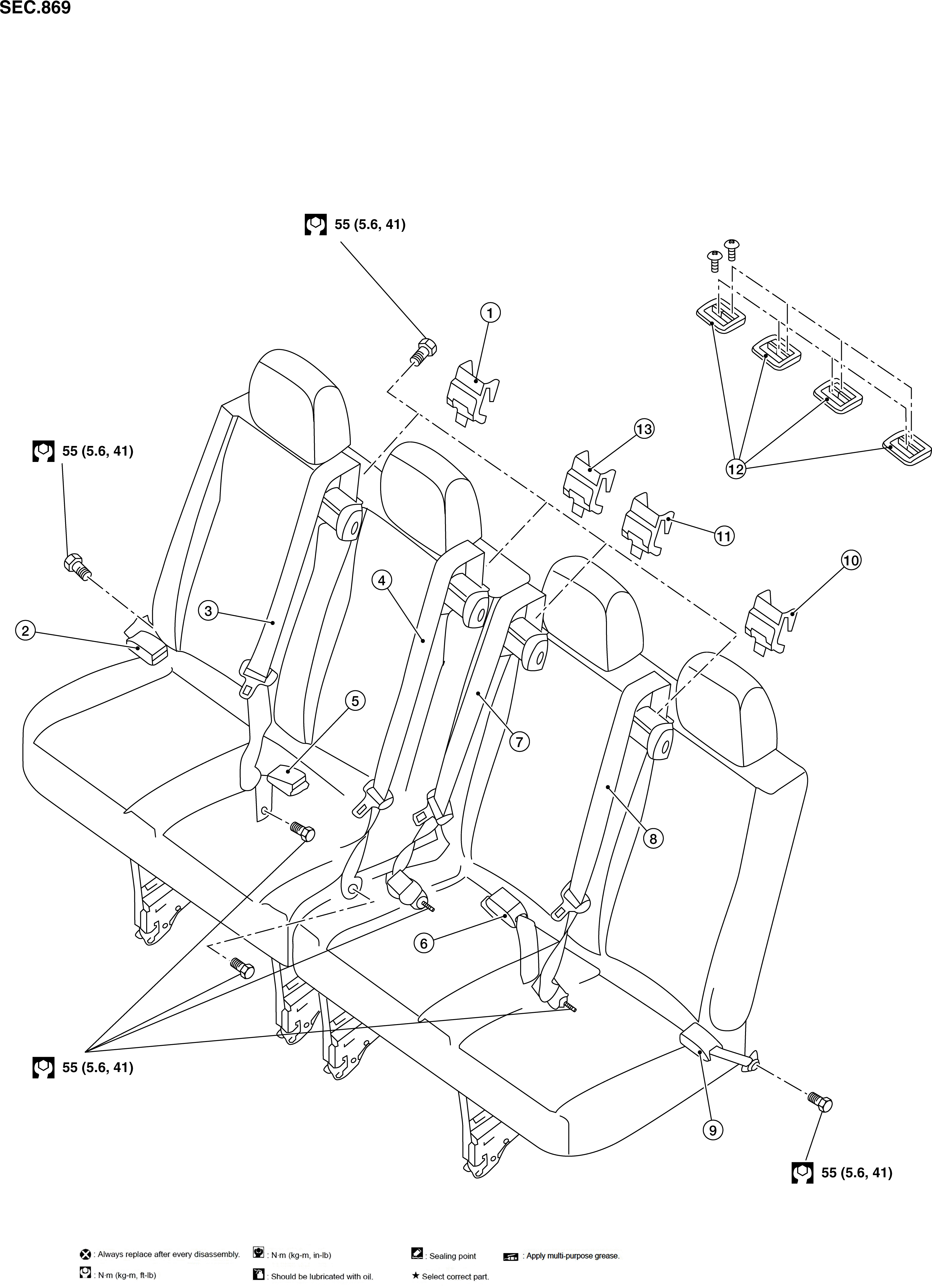

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Seat belt retractor shield (RH) |
2. |
Seat belt buckle (RH) |
3. |
Seat belt retractor (RH) |
|
4. |
Seat belt retractor (RH center) |
5. |
Seat belt buckle (RH center) |
6. |
Seat belt buckle (LH center) |
|
7. |
Seat belt retractor (LH center) |
8. |
Seat belt retractor (LH) |
9. |
Seat belt buckle (LH) |
|
10. |
Seat belt retractor shield (LH) |
11. |
Seat belt retractor shield (LH center) |
12. |
Seat belt escutcheon |
|
13. |
Seat belt retractor shield (RH center) |
