Front Seat Belt Retractor Off-Vehicle Check
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front seat belt retractor. Refer to Front Seat Belt .

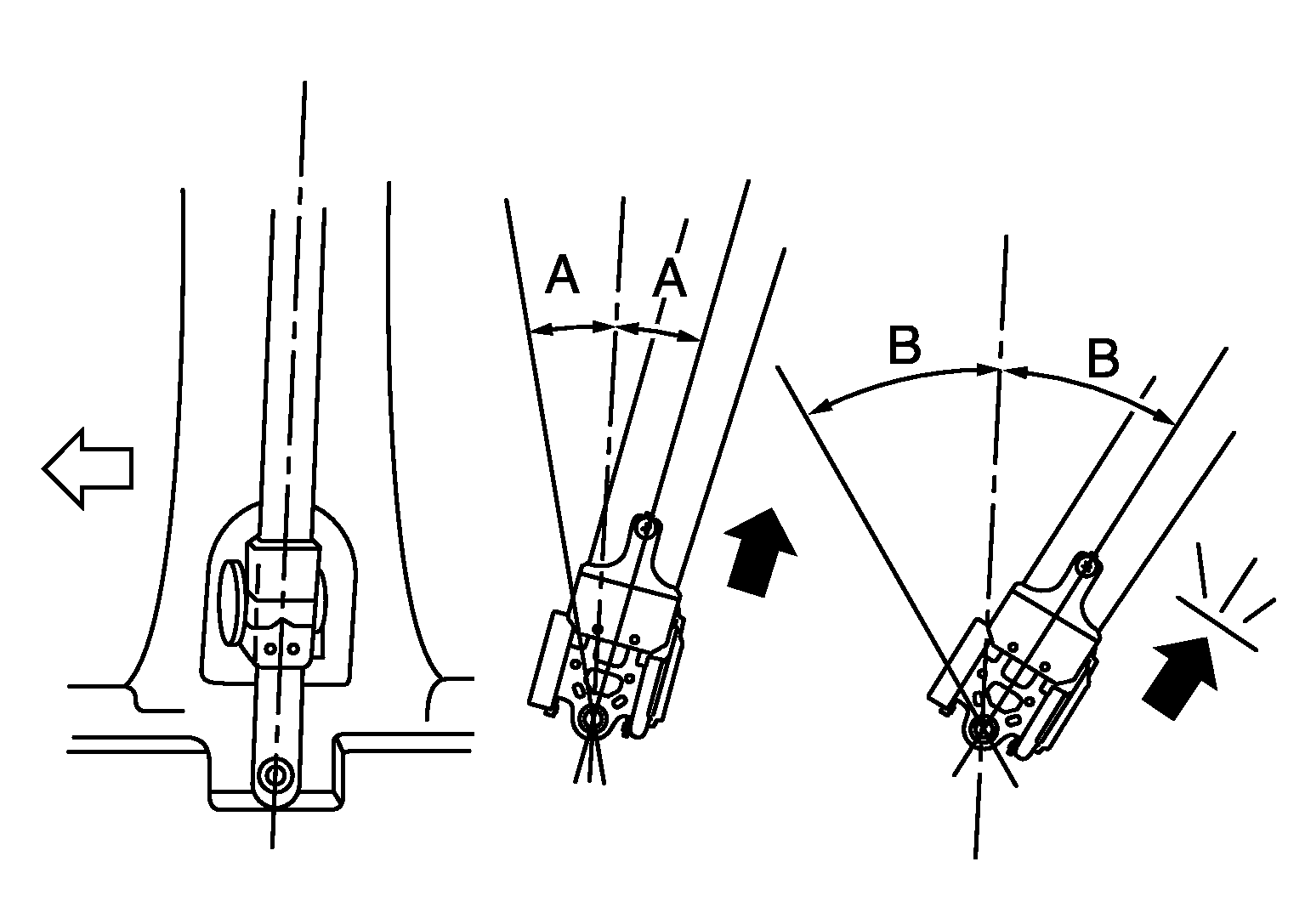

- Slowly pull out webbing while tilting the seat belt retractor forward from the mounted position without twisting the seat belt retractor as shown.
A : The webbing can be pulled out if the retractor is tilted 15 deg. degree or less.
B : The webbing can not be pulled out if the retractor is tilted 27 deg. degrees or more.
NOTE: A and B show tilting angles.: Front
- Replace the seat belt retractor if it does not operate within specifications.
