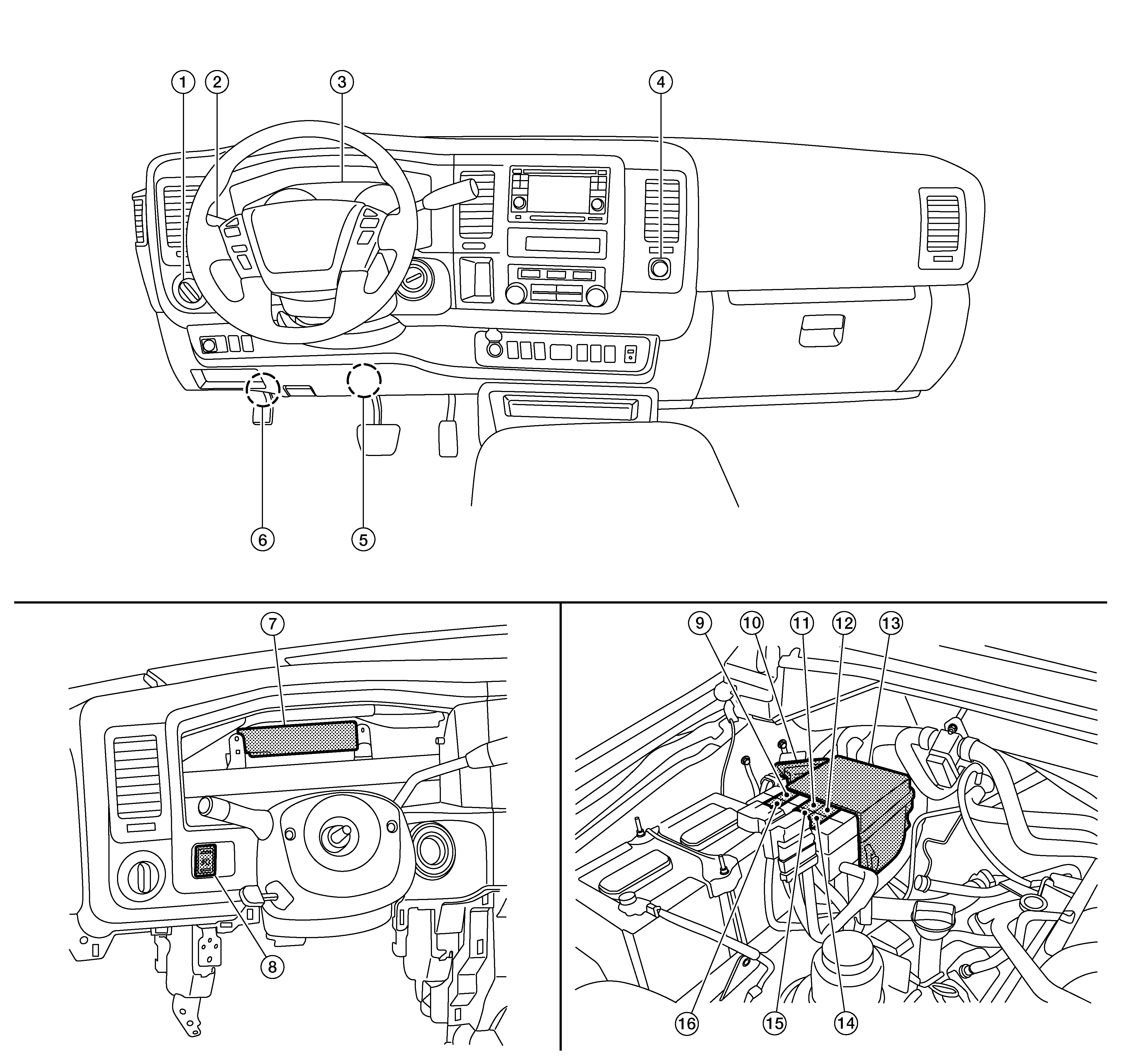

Component Parts Location
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Lighting switch |
2. |
Combination switch (high beam and turn signal switch) |
3. |
Combination meter |
|
4. |
Hazard switch |
5. |
Stop lamp switch |
6. |
Parking brake switch |
|
7. |
BCM (view with instrument panel removed) |
8. |
Front fog lamp switch (passenger van, if equipped) |
9. |
Daytime running light relay 1 |
|
10. |
ECM |
11. |
Trailer tow relay 1 (if equipped) |
12. |
Trailer tow relay 2 (if equipped) |
|
13. |
IPDM E/R |
14. |
Trailer turn relay RH (if equipped) |
15. |
Trailer turn relay LH (if equipped) |
|
16. |
Daytime running light relay 2 |
