Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

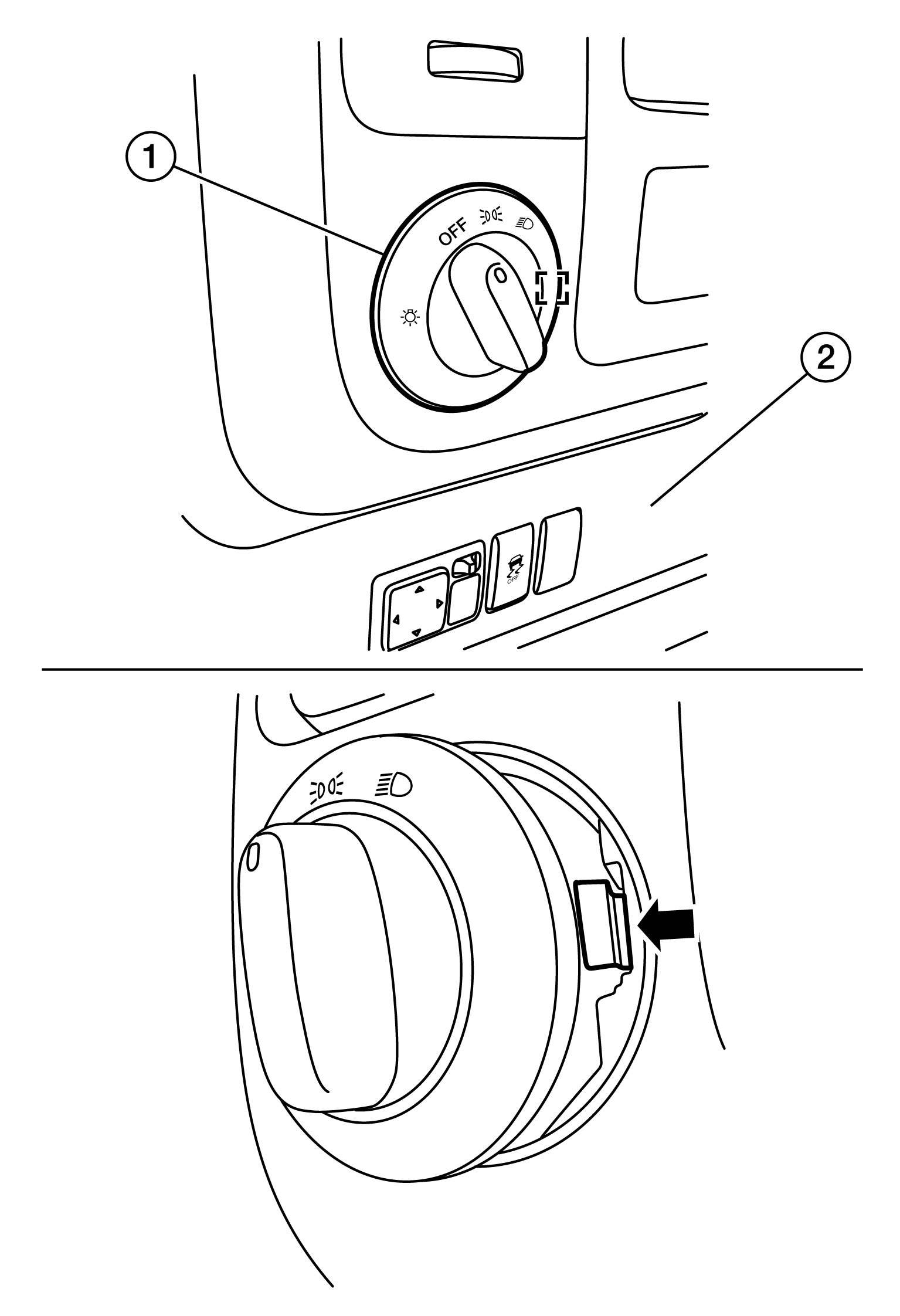

  1. Remove the instrument lower panel LH (2). Refer to Removal and Installation .
    GNSALLIA0988Z-988Courtesy of NISSAN NORTH AMERICA, INC.
  2. Release the metal clip SYMBOL . and remove the lighting switch (1) from the instrument panel.

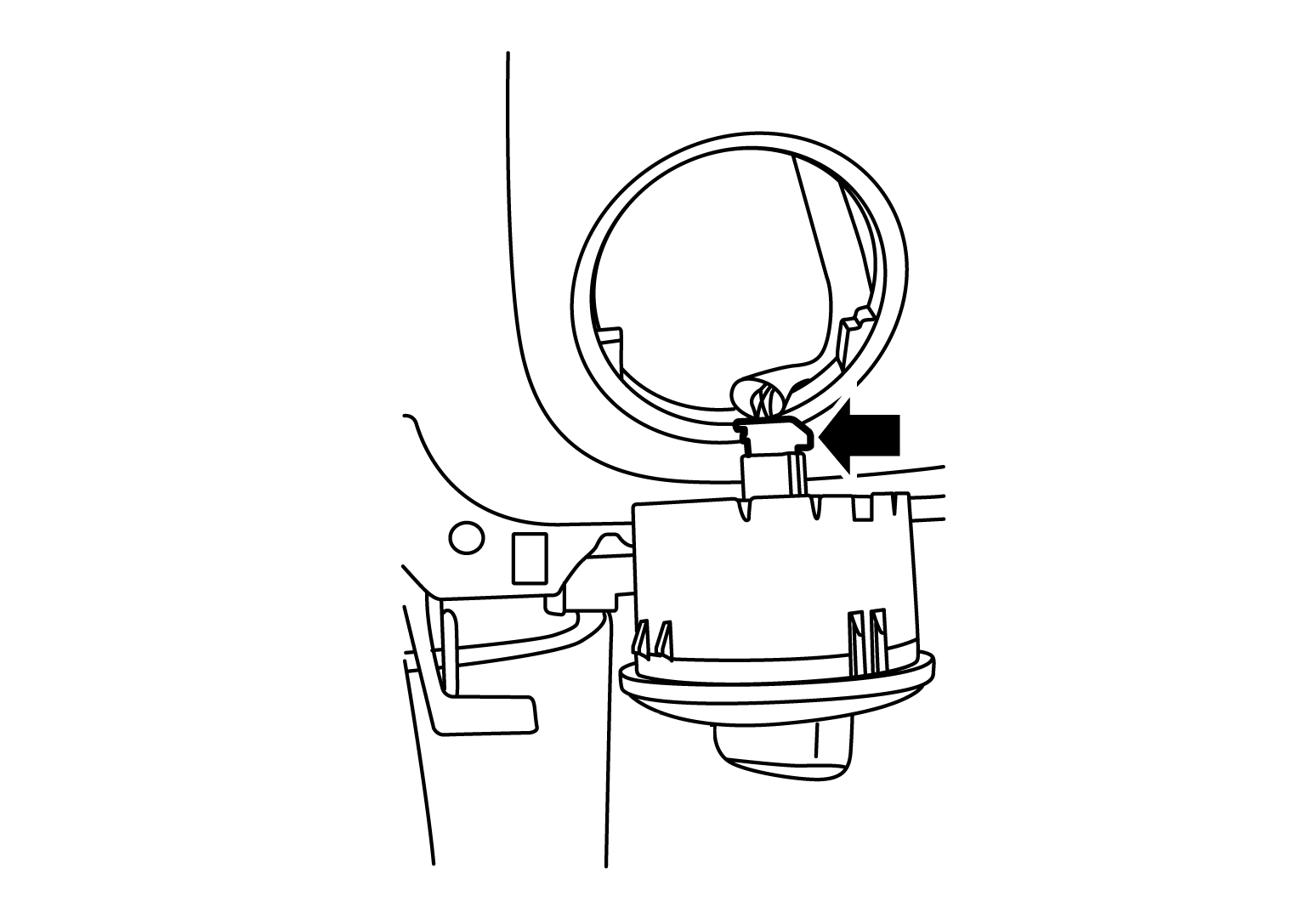

  3. Disconnect the harness connector SYMBOL from the lighting switch and remove.
    GNSALLIA0989Z-989Courtesy of NISSAN NORTH AMERICA, INC.
