Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the back door finisher. Refer to Removal and Installation .

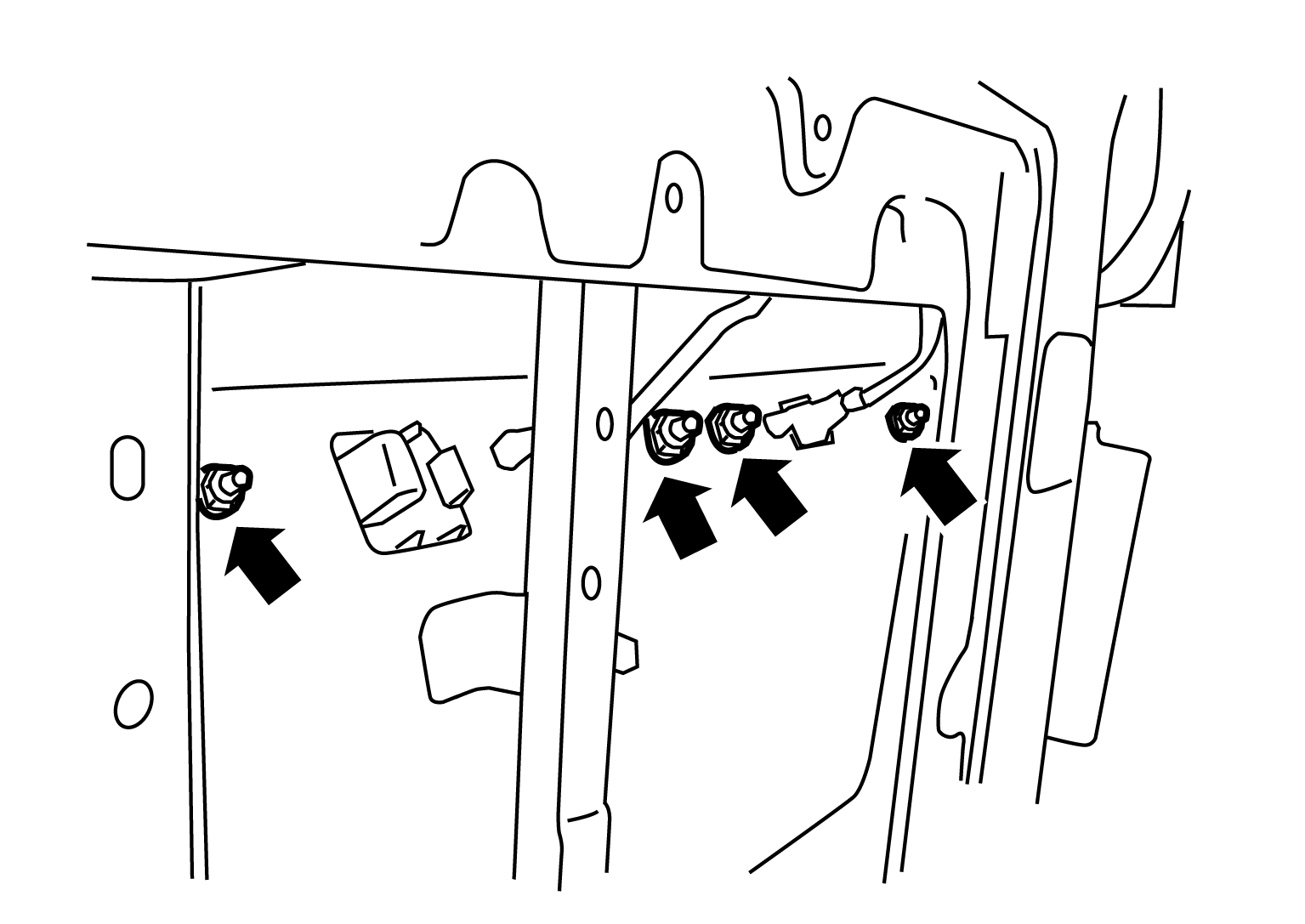

  2. Remove the four license plate lamp finisher nuts SYMBOL using a suitable tool and remove.
    GNSALLIA0996Z-996Courtesy of NISSAN NORTH AMERICA, INC.

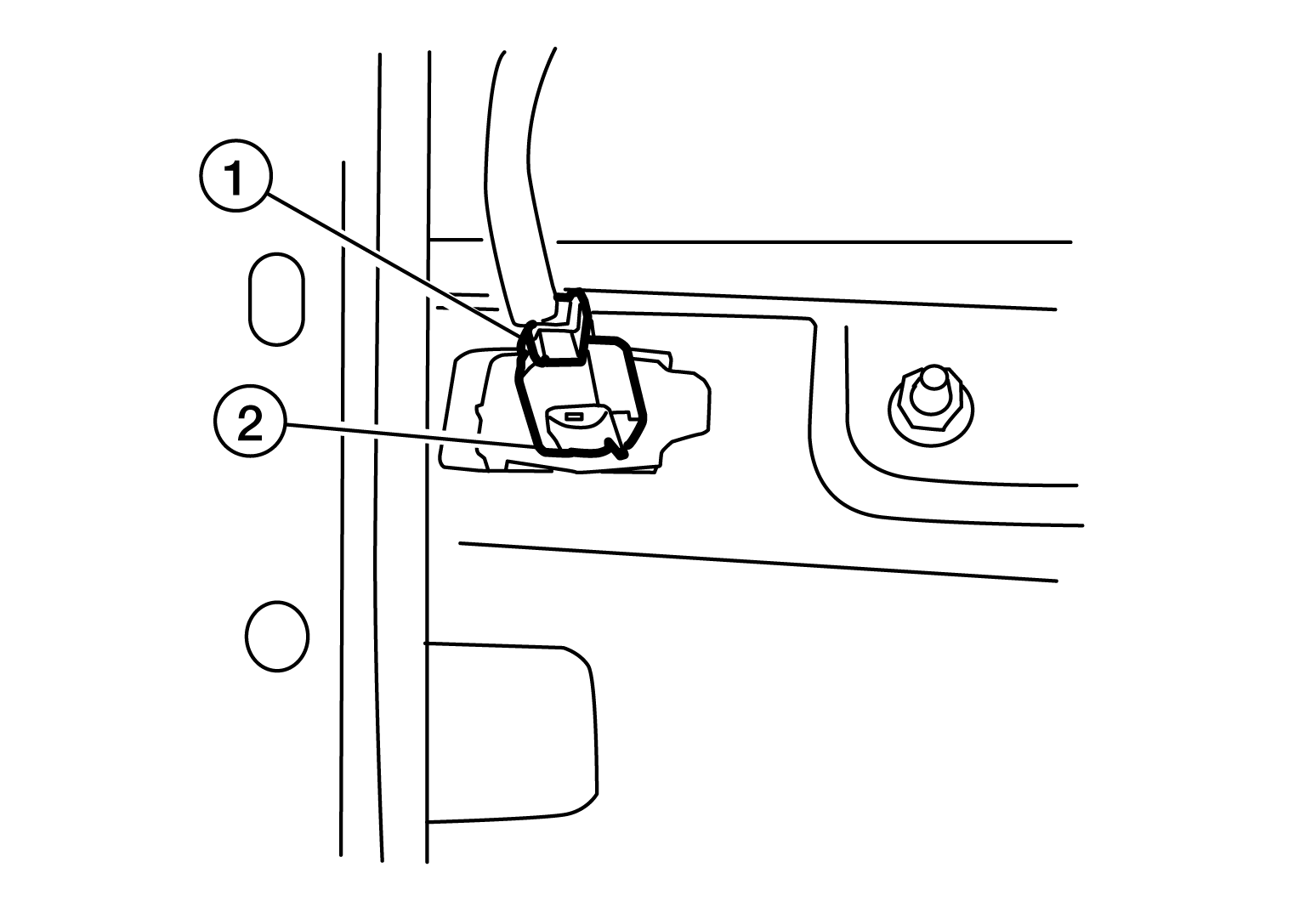

  3. Disconnect the harness connector (1) from the license plate lamp socket (2).
    GNSALLIA0998Z-998Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: RH license lamp shown; LH similar.

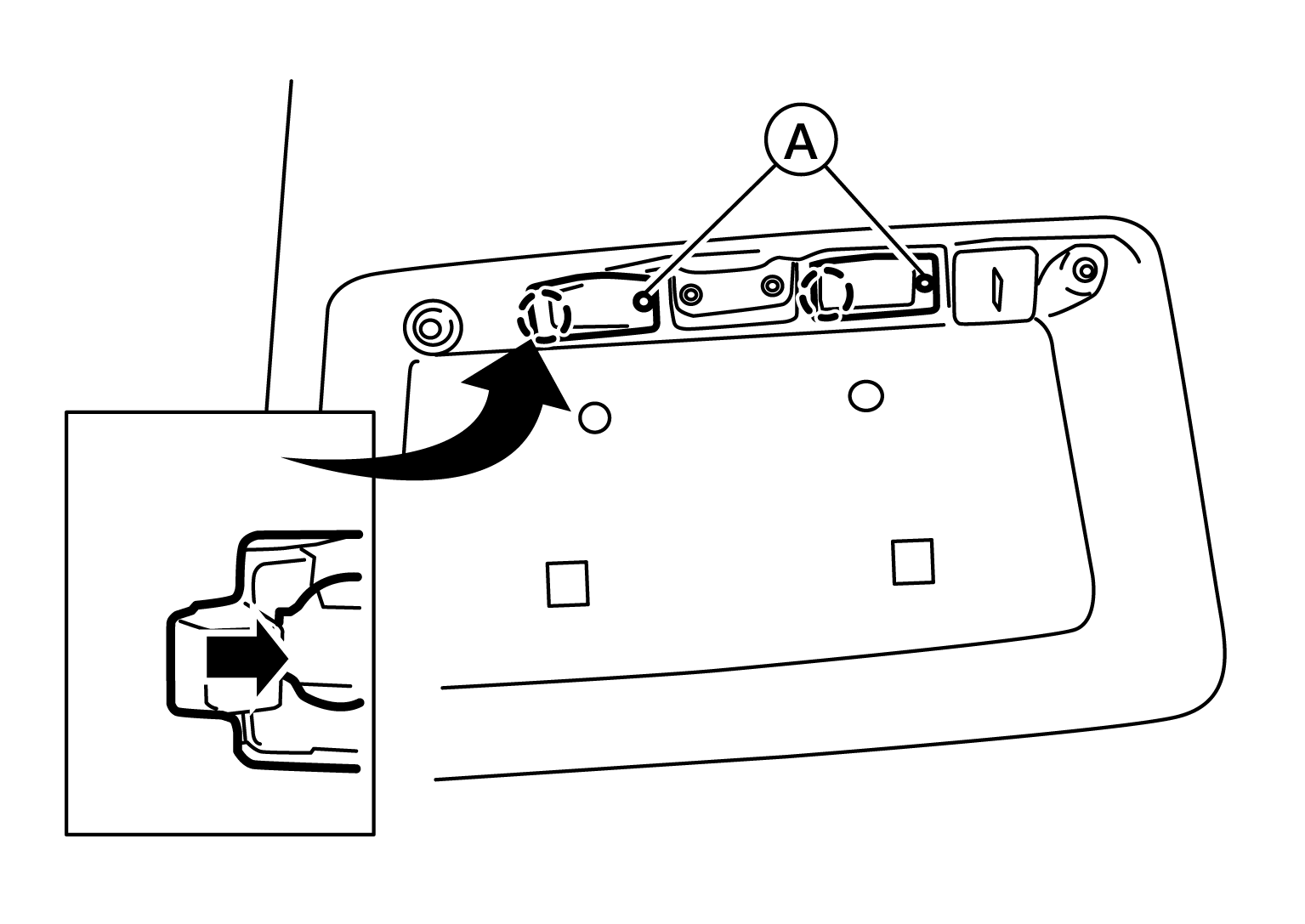

  4. Remove screws (A) and release the pawl SYMBOL to remove license plate lamp housing.
    GNSALLIA0997Z-997Courtesy of NISSAN NORTH AMERICA, INC.
