Bulb Replacement: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not touch bulb while it is lit or right after being turned off. Burning may result.
CAUTION:
  • Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to bulb.
  • Do not leave the bulb out of the lamp reflector for a long time because dust, moisture, smoke, etc. may affect the performance of the lamp.
  1. Remove the back door finisher. Refer to Removal and Installation .

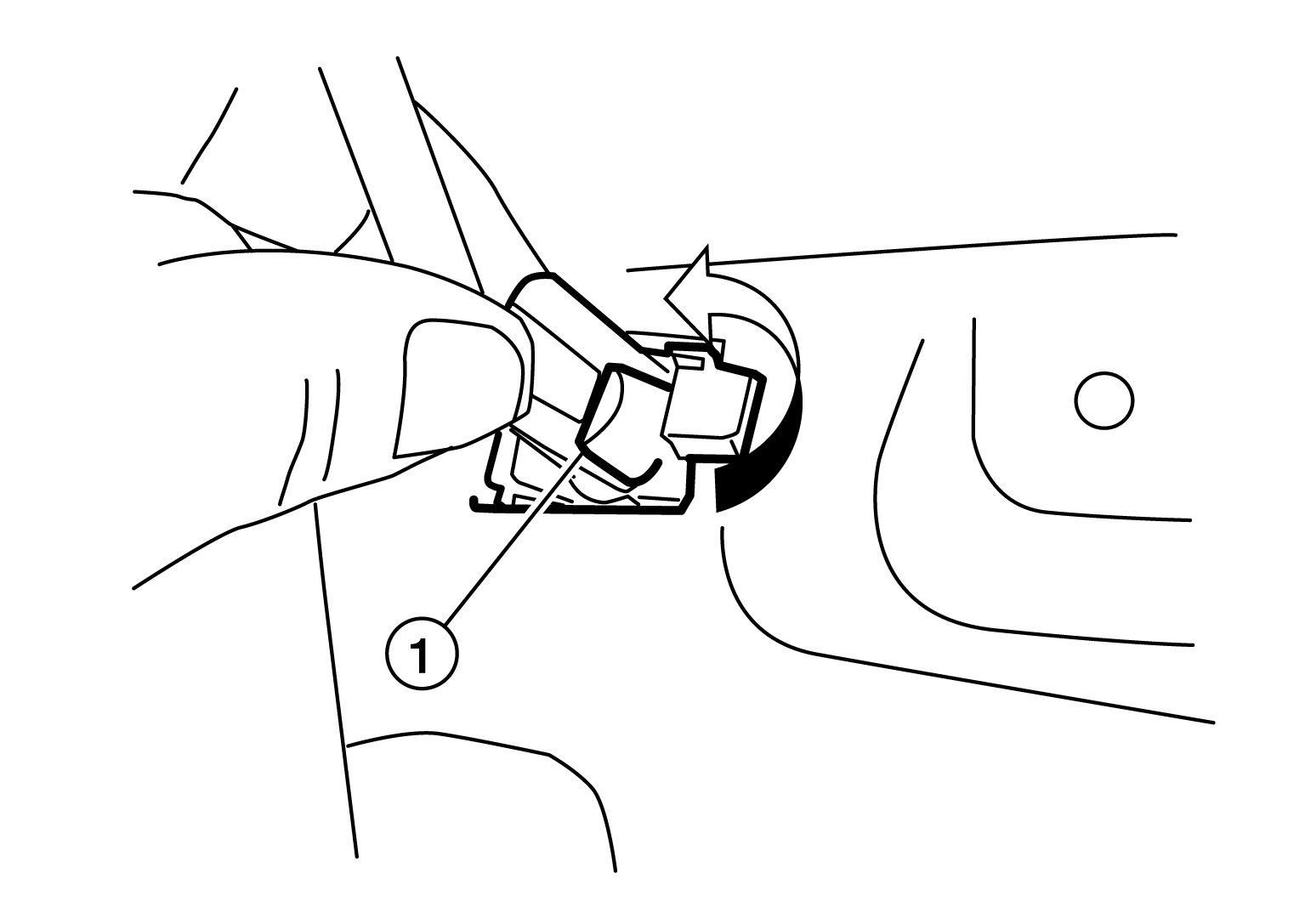

  2. Rotate license plate lamp socket (1) counterclockwise and remove.
    GNSALLIA0999Z-999Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove license plate lamp bulb from bulb socket.
