Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center ventilator grille (RH). Refer to Removal and Installation .

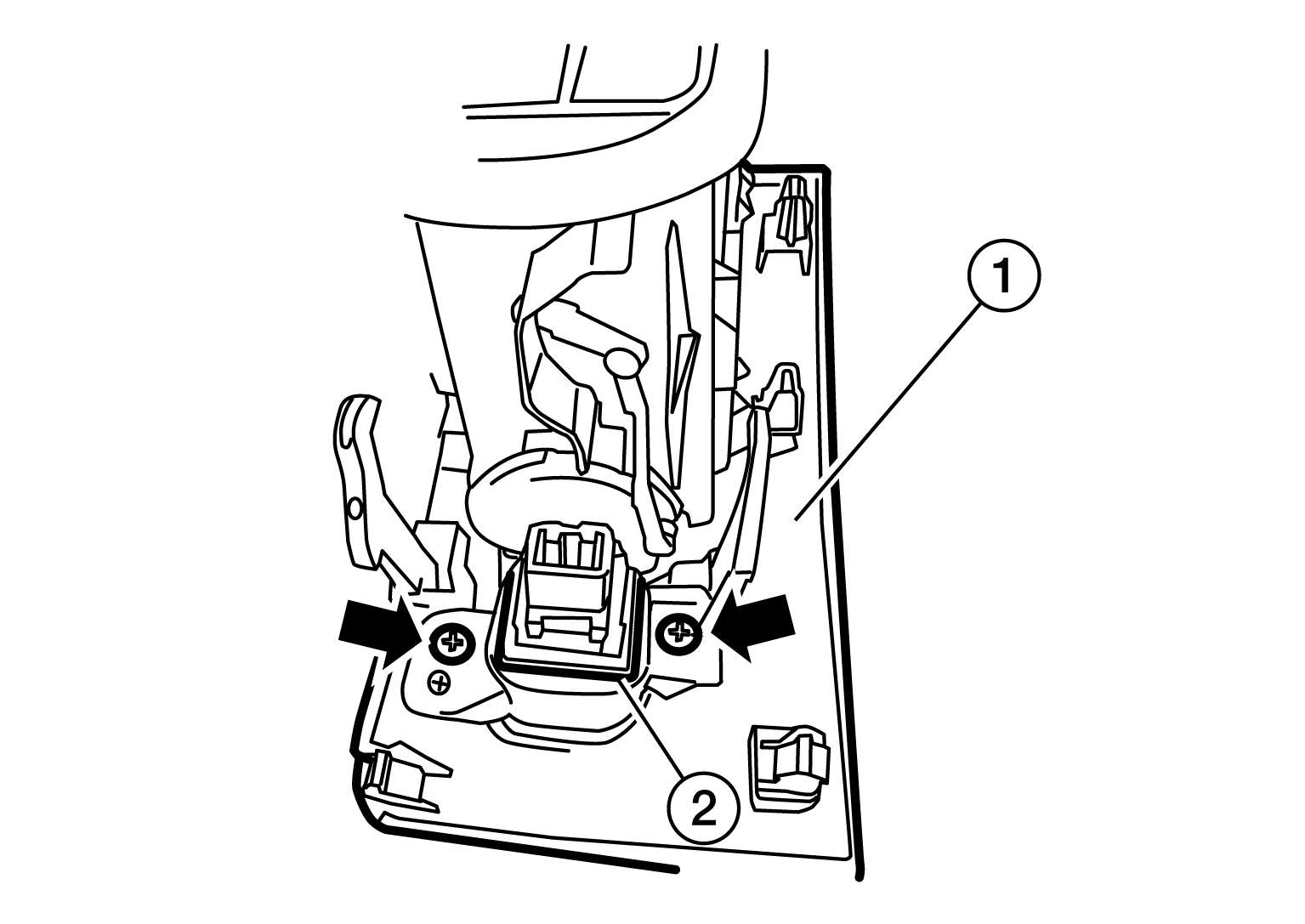

  2. Remove the hazard switch bracket screws SYMBOL .
    GNSALLIA0994Z-994Courtesy of NISSAN NORTH AMERICA, INC.

    (1) Center ventilator grille (RH)

    (2) Hazard switch

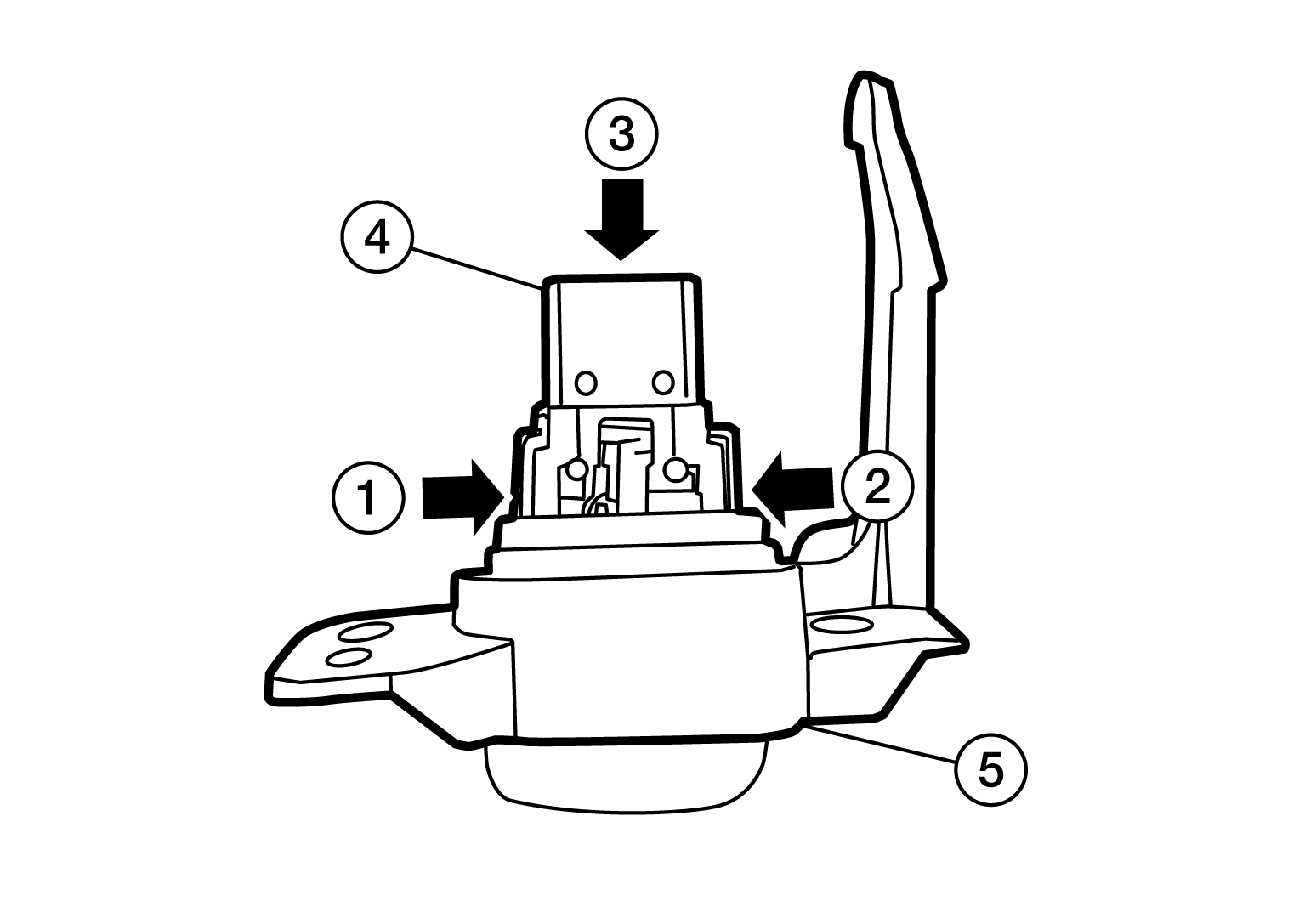

  3. Release the pawls in the order shown, then remove the hazard switch (4) from the hazard switch bracket (5).
GNSALLIA0995Z-995Courtesy of NISSAN NORTH AMERICA, INC.
