Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid A. Refer to Removal and Installation .

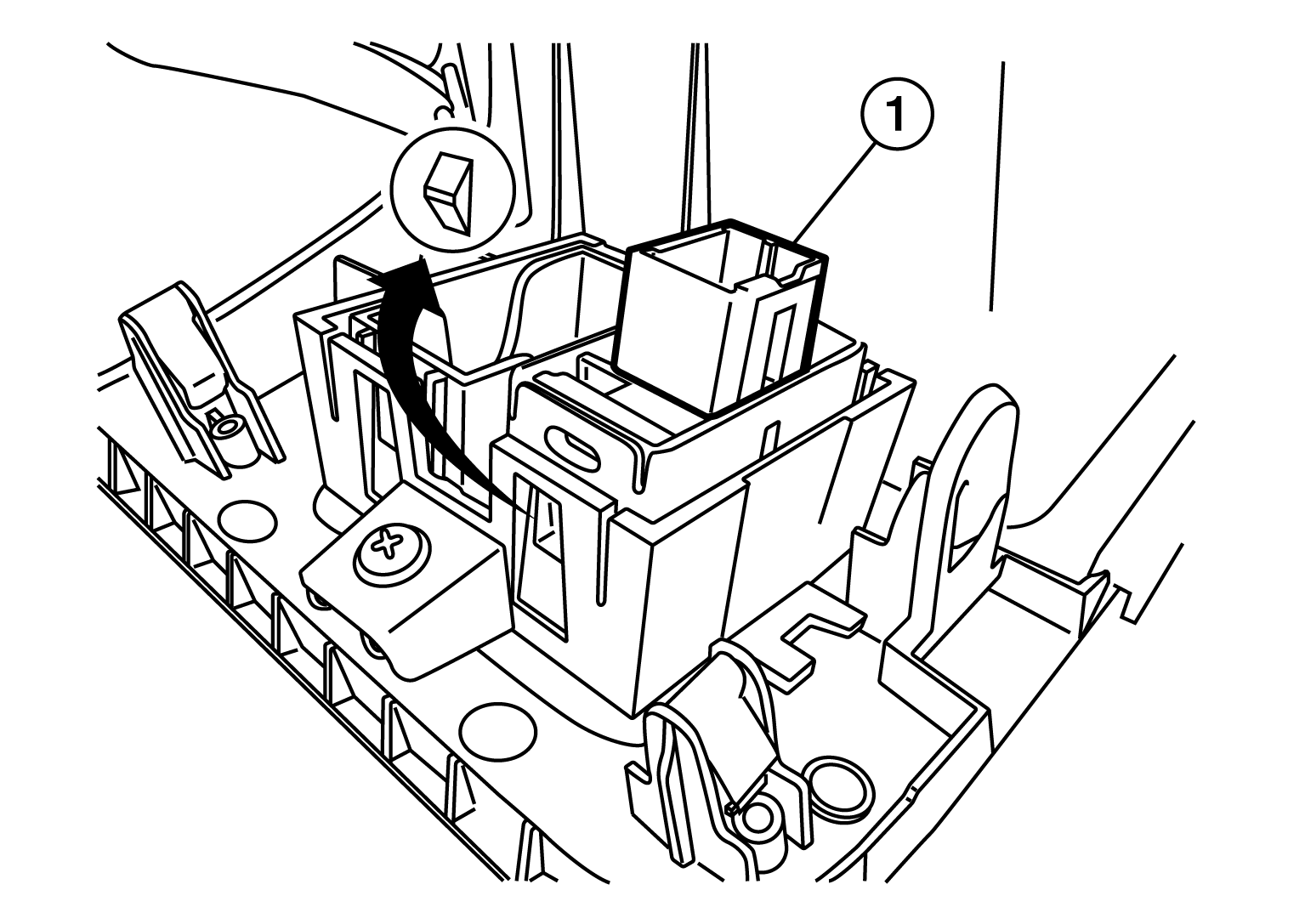

  2. Release the pawls and remove the front fog light switch (1).
    GNSALLIA1069Z-069Courtesy of NISSAN NORTH AMERICA, INC.
