Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove upper front fascia. Refer to Removal and Installation - Upper Front Fascia .
  2. Remove the two front combination lamp upper screws.

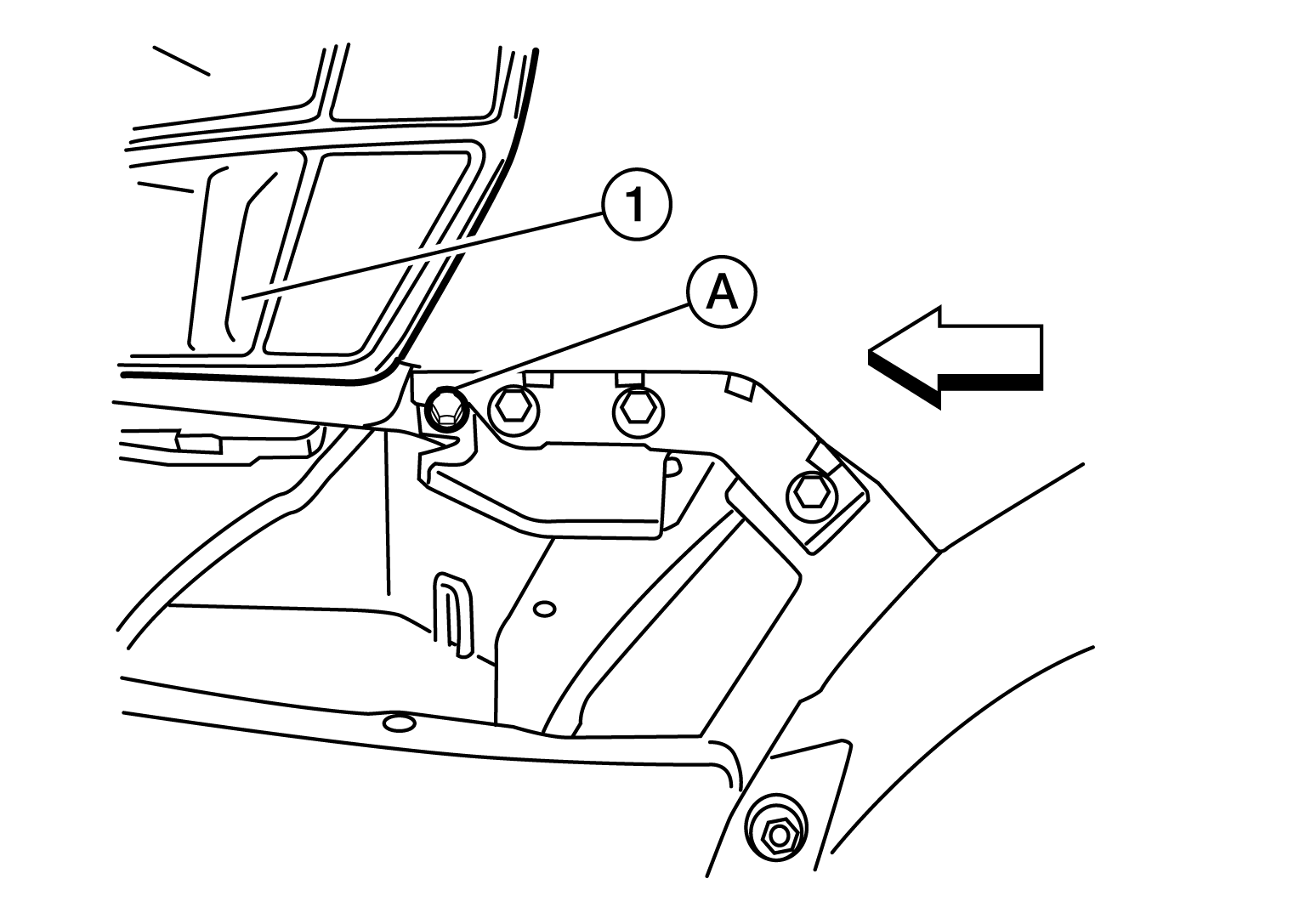

  3. Remove the front combination lamp lower screw (A).
    GNSALLIA0983Z-983Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

  4. Disconnect the harness connector from front combination lamp (1) and remove.
