Headlamp Bulb

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Release the locking tab, then disconnect the harness connector from the headlamp bulb.

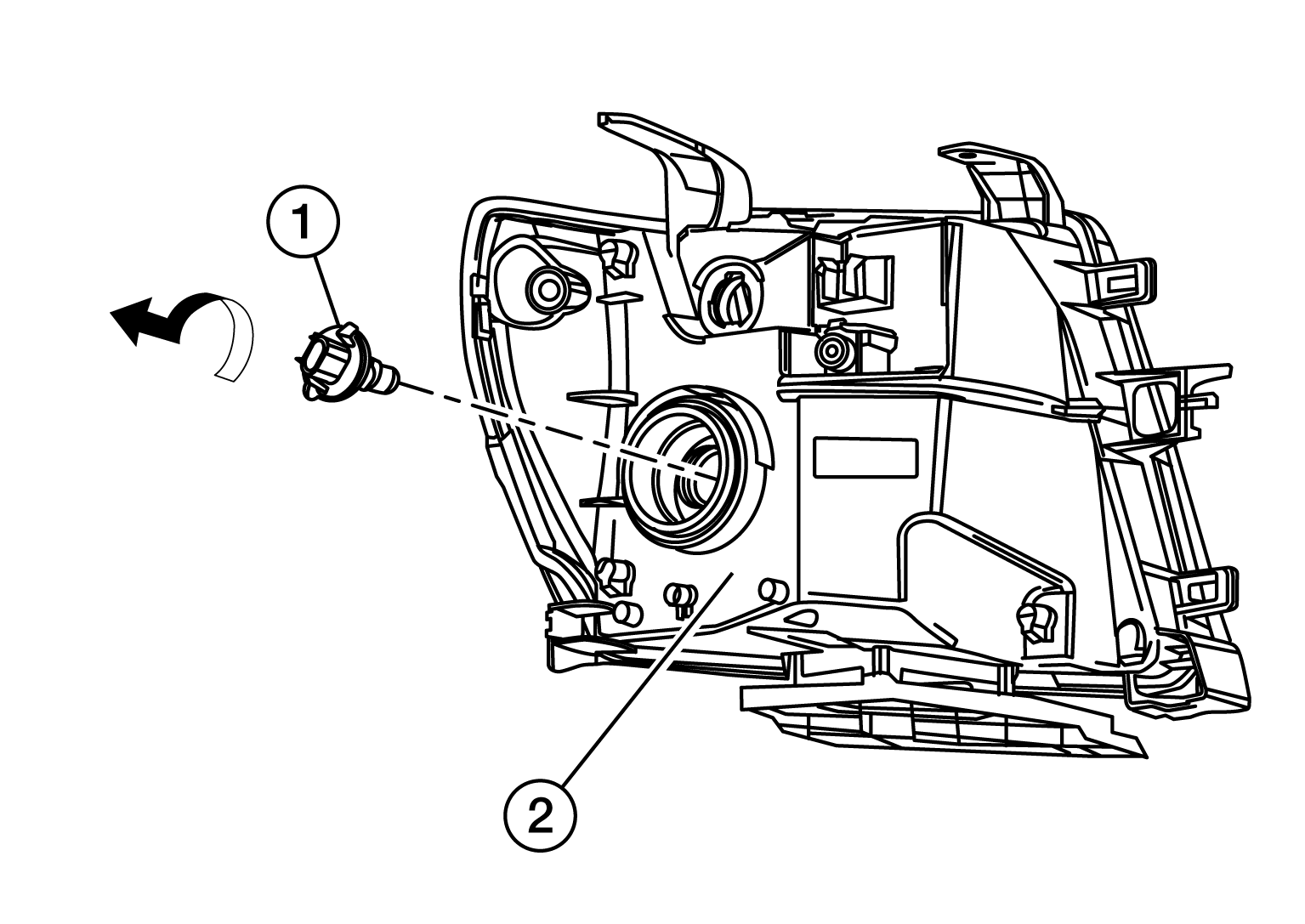

Rotate the headlamp bulb (1) counterclockwise and remove from front combination lamp (2).

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Illustration shows the front combination lamp removed for clarity. It is not necessary to remove the front combination lamp when replacing the bulb.

Installation

Installation is in the reverse order of removal.
