Front Turn Signal Bulb

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Removal

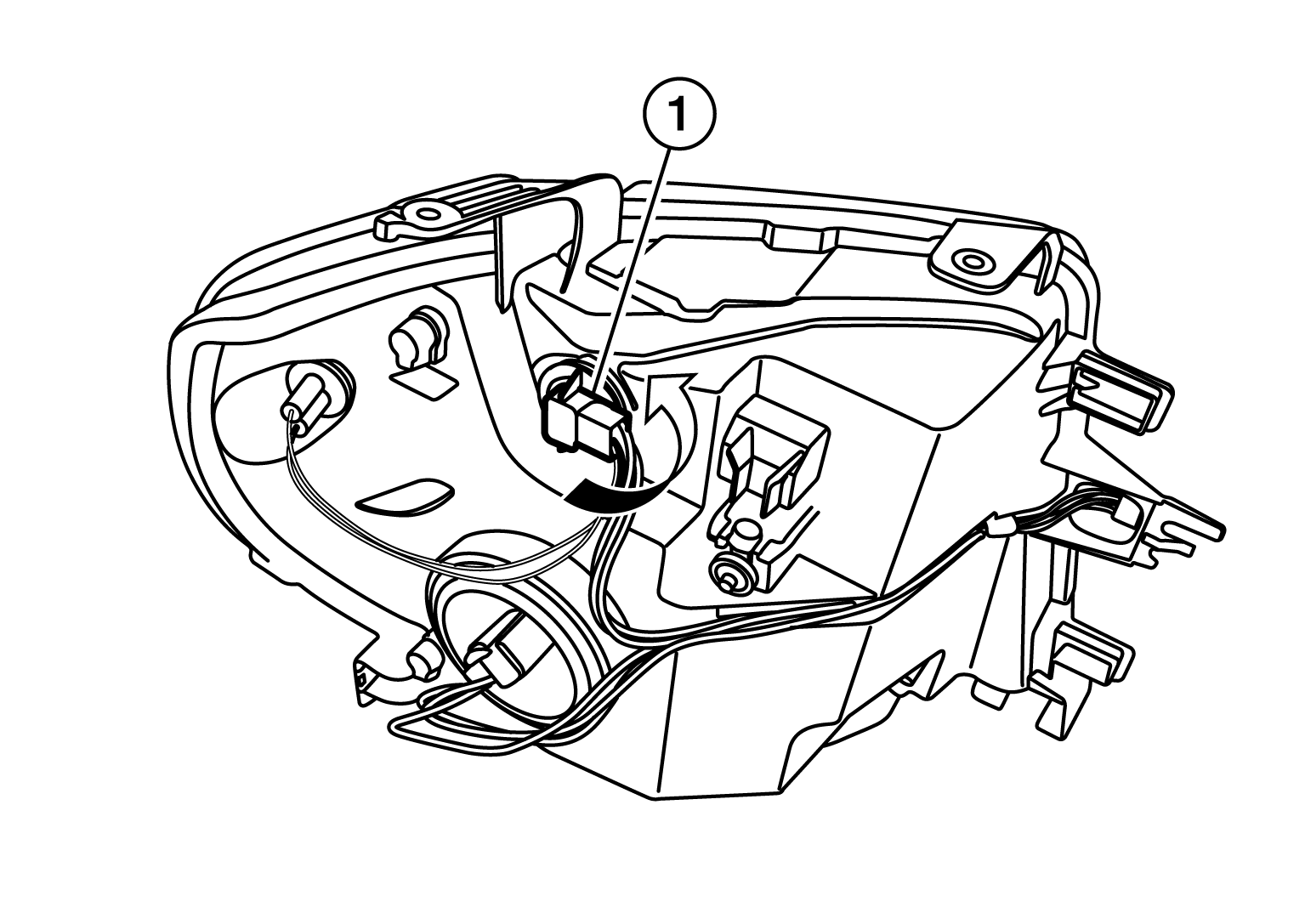

Rotate the front turn signal bulb socket (1) counterclockwise and remove.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Illustration shows the front combination lamp removed for clarity. It is not necessary to remove the front combination lamp when replacing the bulb.
Remove front turn signal bulb from bulb socket.

Installation

Installation is in the reverse order of removal.
