Aiming Adjustment Screw

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

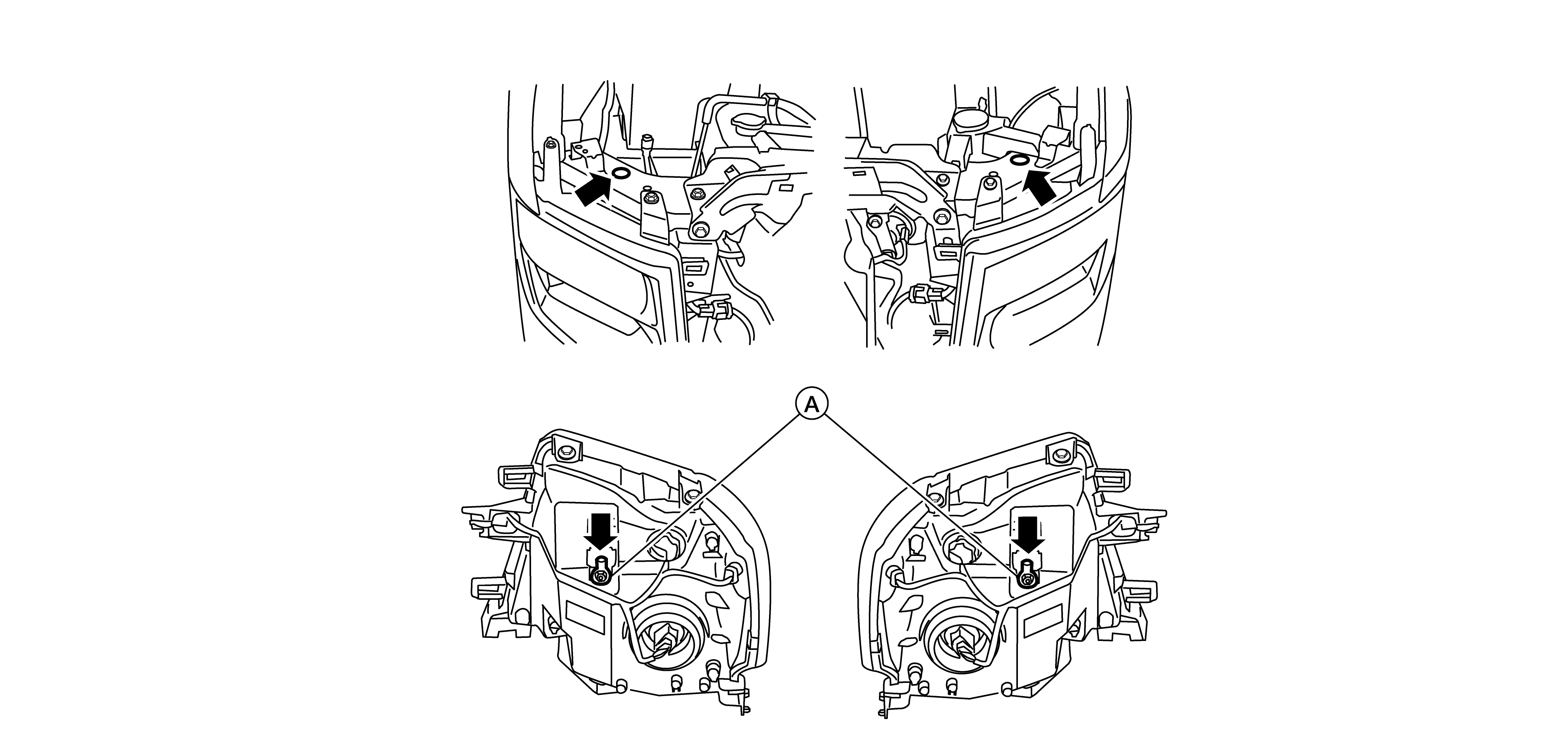

A.	Headlamp (UP/DOWN) adjusting screw

Rotate the headlamp (UP/DOWN) adjustment screw to raise or lower the headlamp vertical beam pattern, using a suitable tool.

Courtesy of NISSAN NORTH AMERICA, INC.

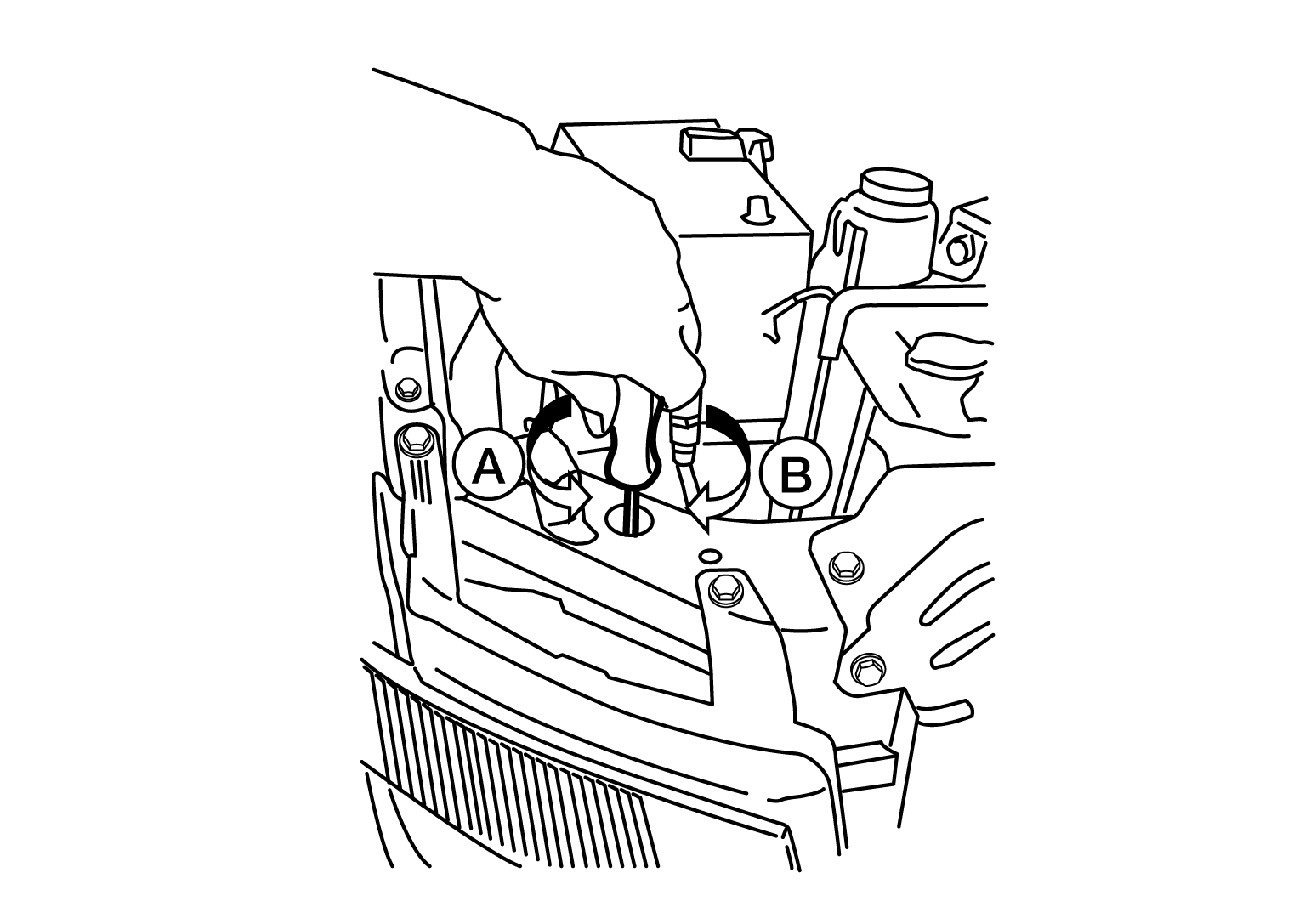

A: Rotate counterclockwise to lower beam pattern (DOWN).

B: Rotate clockwise to raise beam pattern (UP).

CAUTION: Do not rotate headlamp (UP/DOWN) adjustment screw beyond a torque of 1.67 N.m (17 kg-cm, 14.8 in-lb), or damage to the components may occur.
