Aiming Adjustment
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Check the following conditions before preforming the aiming adjustment.
- Keep all tires inflated to correct pressure.
- Place vehicle on level ground.
- See that vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tire, jack, and tools). Have the driver or equivalent weight placed in driver seat.
- When performing adjustment, if necessary, cover the headlamps and opposite fog lamp.

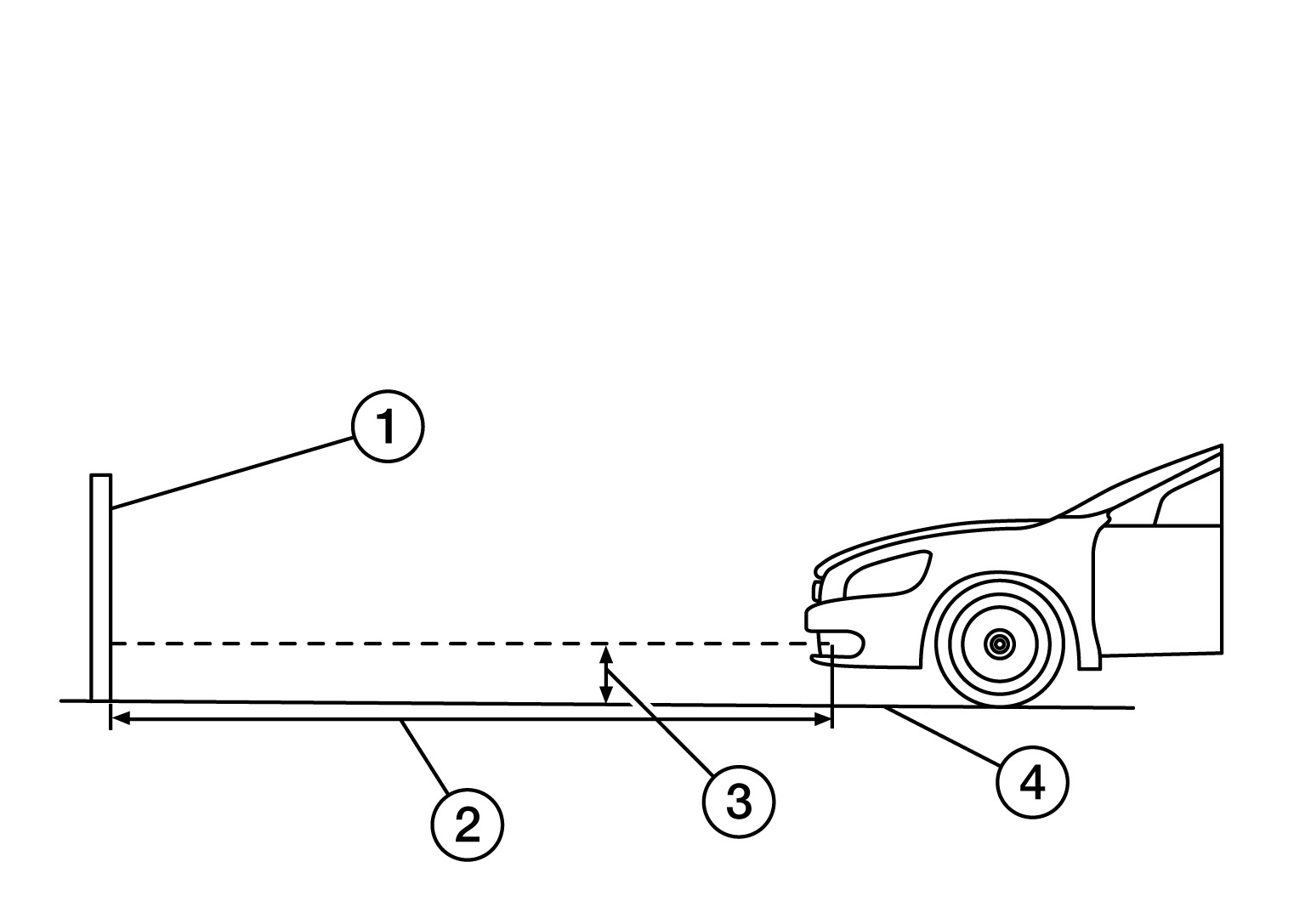

- Set the distance between the screen and the center of the fog lamp lens as shown.
(1) Aiming screen or a matte white surface
(2) 7.62 m (25 ft)
(3) Ground to center of fog lamp lens
(4) Ground
- Turn front fog lamps ON.

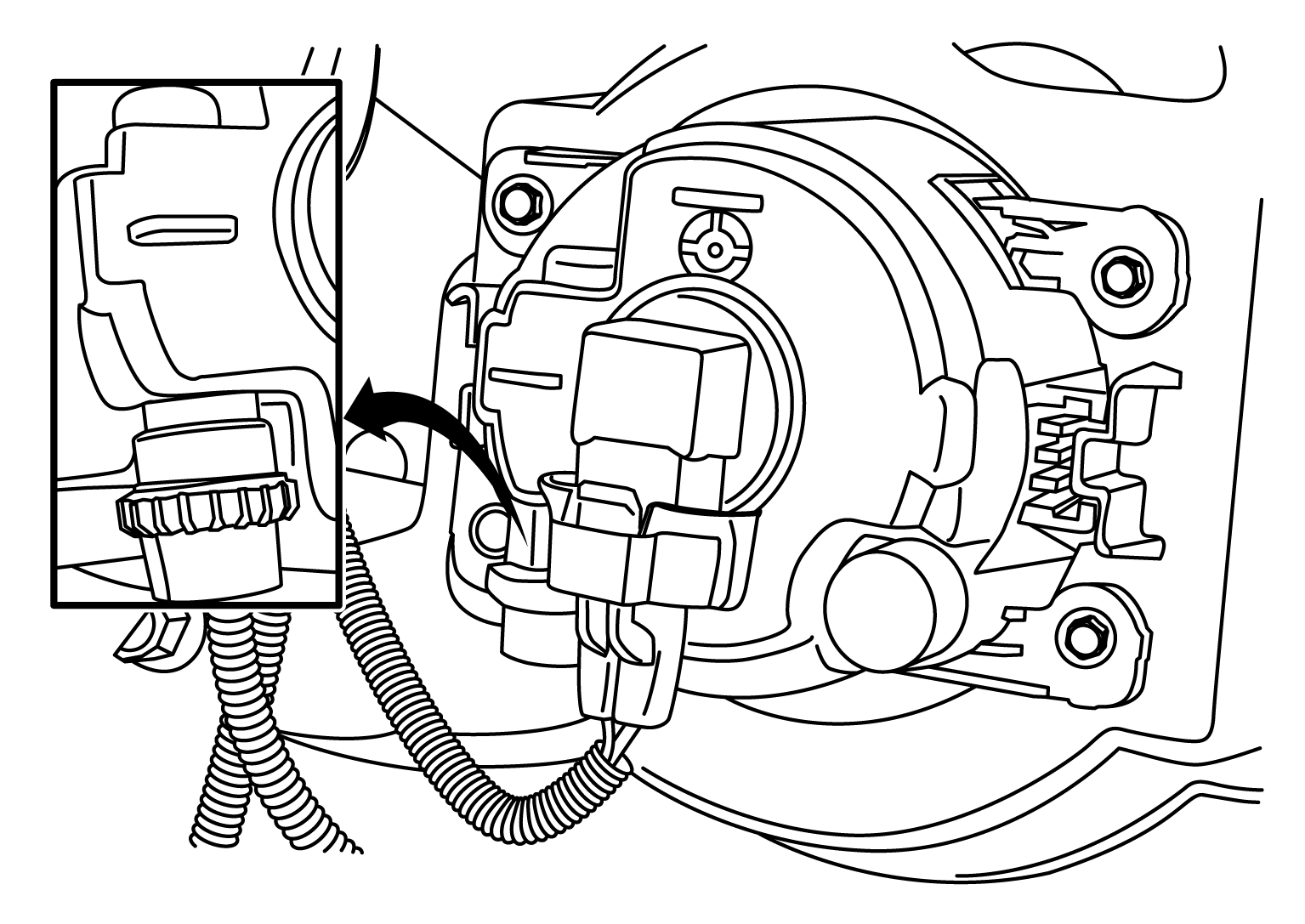

- Using a suitable tool to adjust. Rotate screw clockwise to raise pattern and counterclockwise to lower pattern.

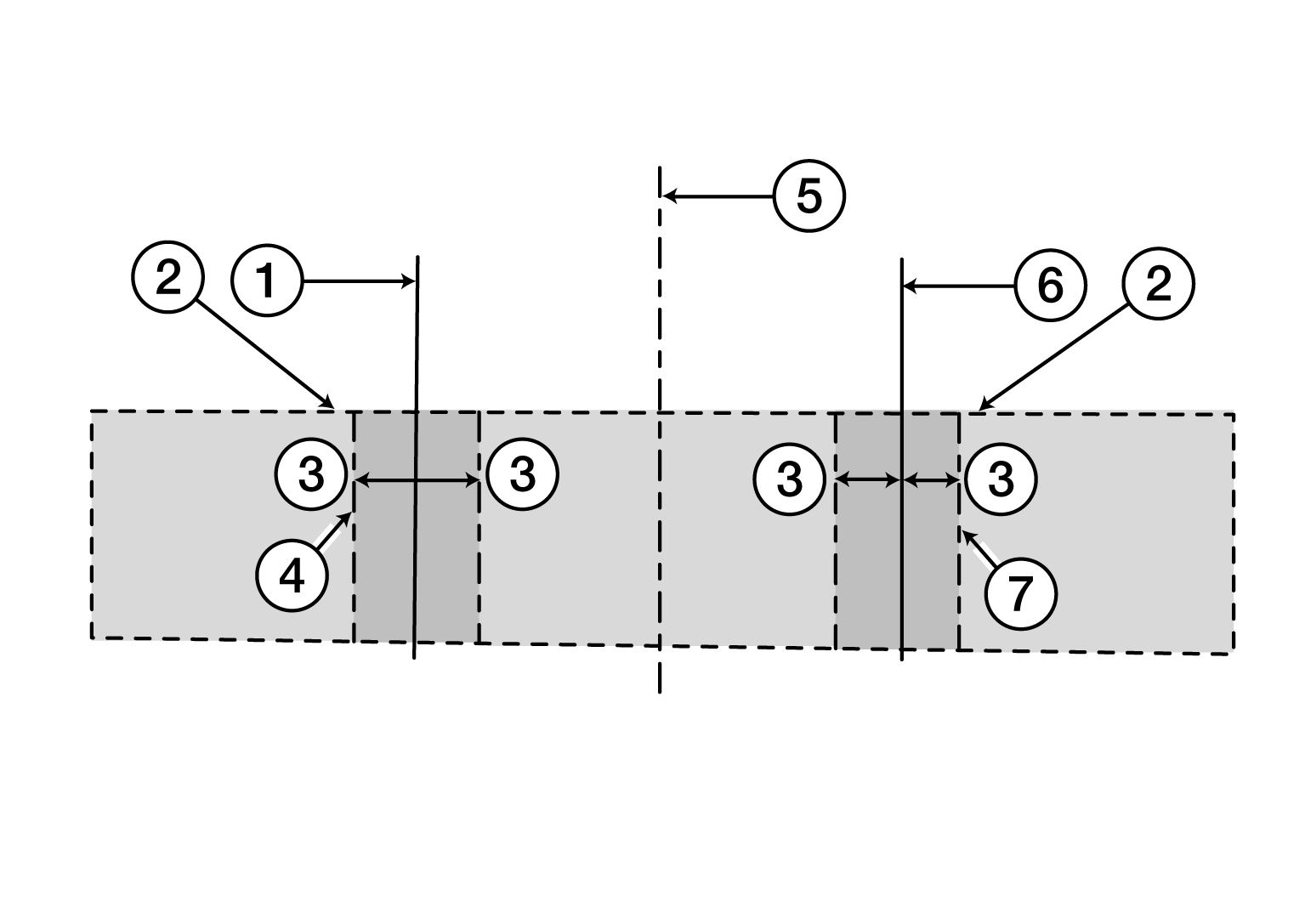

Adjust front fog lamps using adjusting screw so that the top edge of the high intensity zone is 100 mm (4 in) below the height of the fog lamp centers as shown.
NOTE: Access adjusting screw from underneath front bumper.(1) Vertical center line of left fog lamp
(2) Lamp center above ground
(3) 100 mm (4 in) (0.76 deg) below lamp center above ground
(4) Left fog lamp high intensity area
(5) Vehicle center axis
(6) Vertical center line of right fog lamp
(7) Right fog lamp high intensity area
