Component Parts Location

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

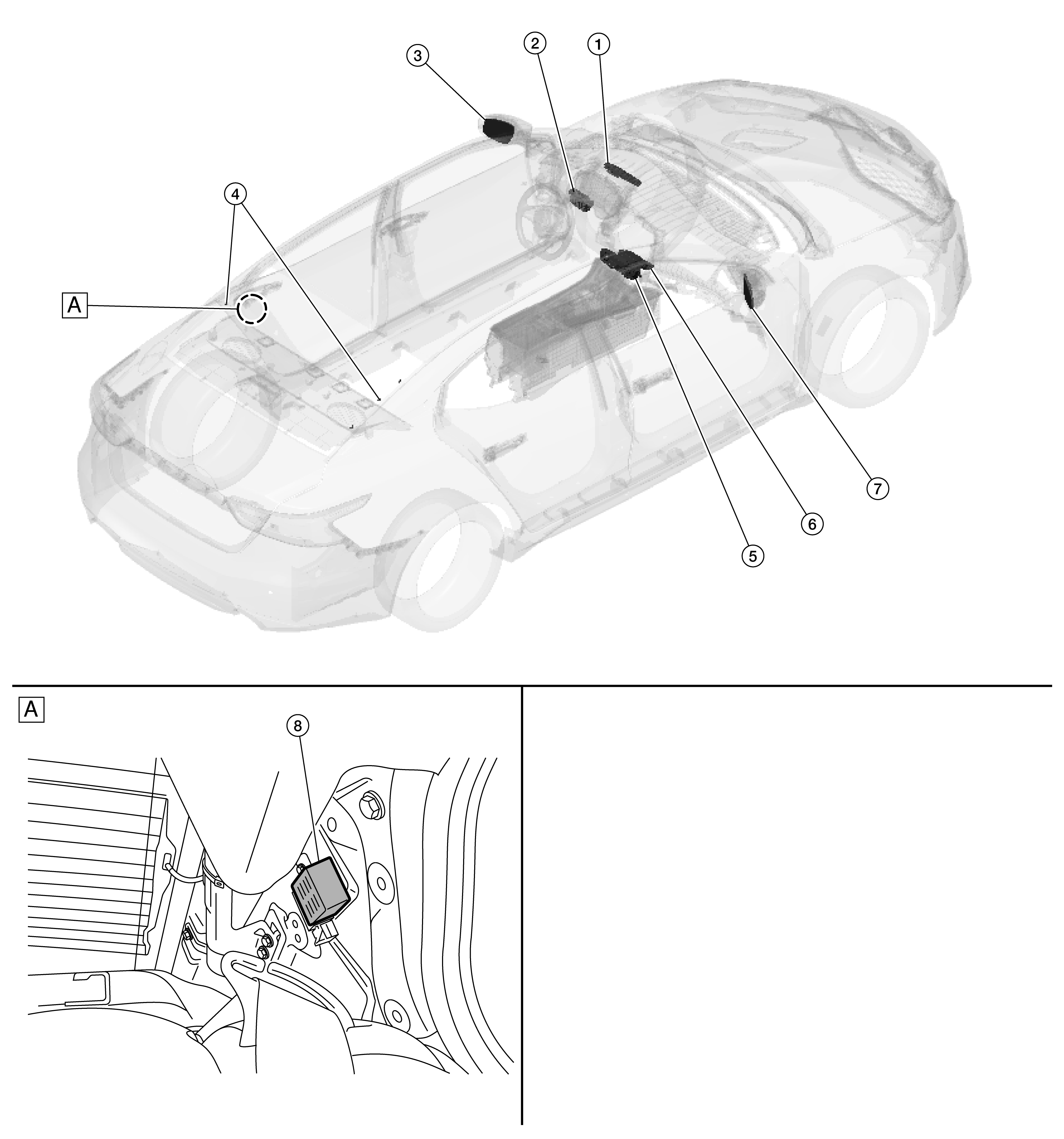

A.	Behind left rear pillar finisher

No.	Component	Function
1.	BCM	Operates the rear window defogger with the operation of rear window defogger switch. Performs the timer control for rear window defogger. Refer to Component Parts Location for detailed installation location.
2.	Fuse block (J/B) (Rear window defogger relay)	Operates the rear window defogger and the door mirror defogger with the control signal from BCM.
3.	Door mirror LH	Refer to Door Mirror Defogger .
4.	Rear window defogger	Refer to Rear Window Defogger .
5.	A/C switch assembly (rear window defogger switch)	Transmits rear window defogger switch ON signal. Turns the indicator lamp ON when detecting the operation of rear window defogger. Refer to Component Parts Location for detailed installation location.
6.	A/C auto amp.	Transmits rear window defogger switch ON signal to the BCM. Transmits the indicator lamp ON signal when detecting the operation of rear window defogger. Refer to Component Parts Location for detailed installation location.
7.	Door mirror RH	Refer to Door Mirror Defogger .
8.	Rear window defogger condenser	Removes the noise that is generated when the rear window defogger turns ON/OFF.
