Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear pillar finisher LH. Refer to Removal and Installation .
  2. Remove the headlining. Refer to Removal and Installation .

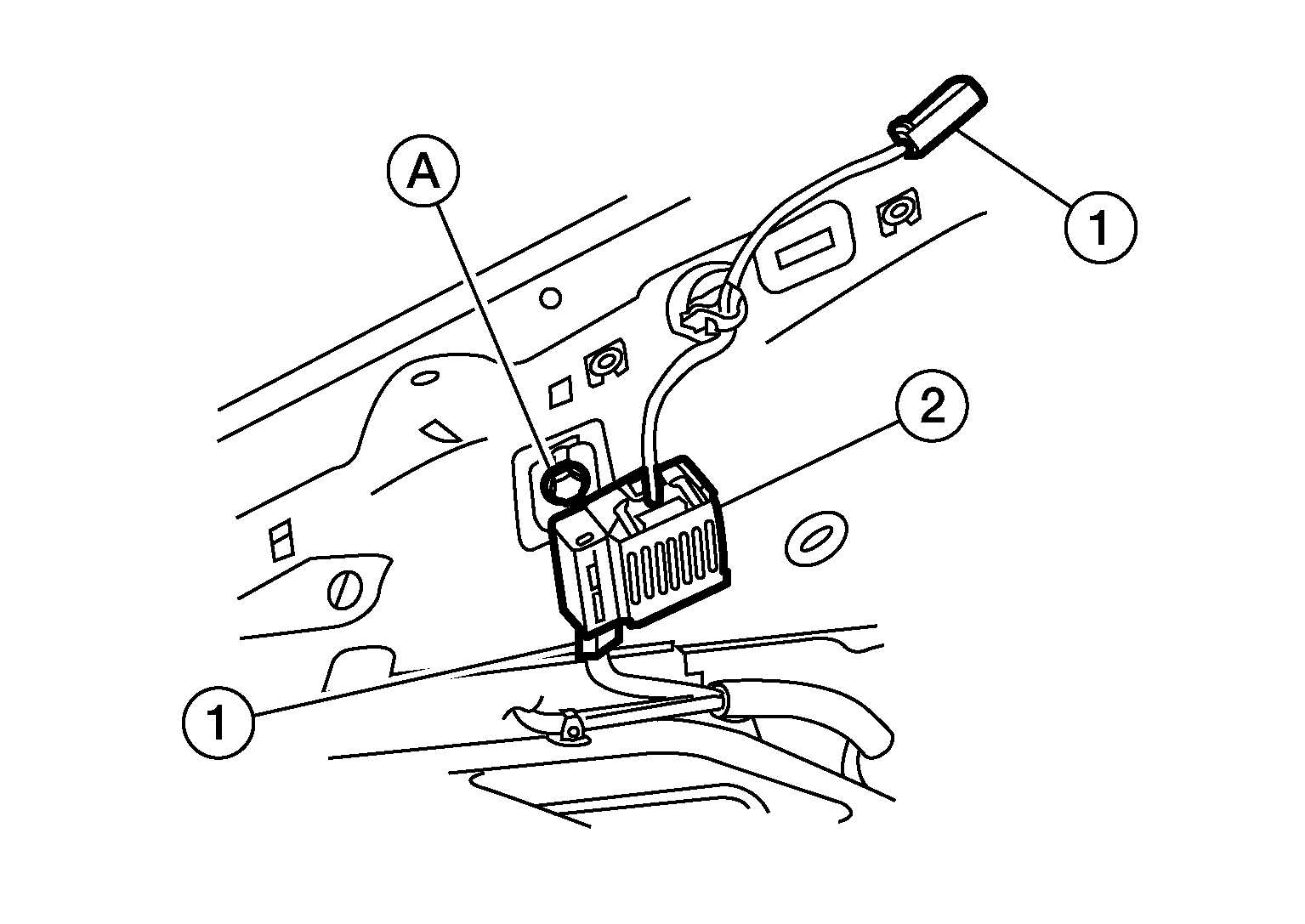

  3. Disconnect the harness connectors (1) from the rear window defogger condenser (2).
    GNSAWLIA2626Z-626Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove bolt (A) and rear window defogger condenser.
