Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the front wheels in the straight-ahead position.
  2. Remove the driver air bag module. Refer to Removal and Installation .
  3. Disconnect steering wheel switches (if equipped).
  4. Remove the steering wheel center nut.
  5. Remove the steering wheel using suitable tools.
    CAUTION: Place a piece of tape across the spiral cable so it will not be rotated out of position.
  6. Inspect the steering wheel near the puller holes for damage. If damaged, replace the steering wheel.

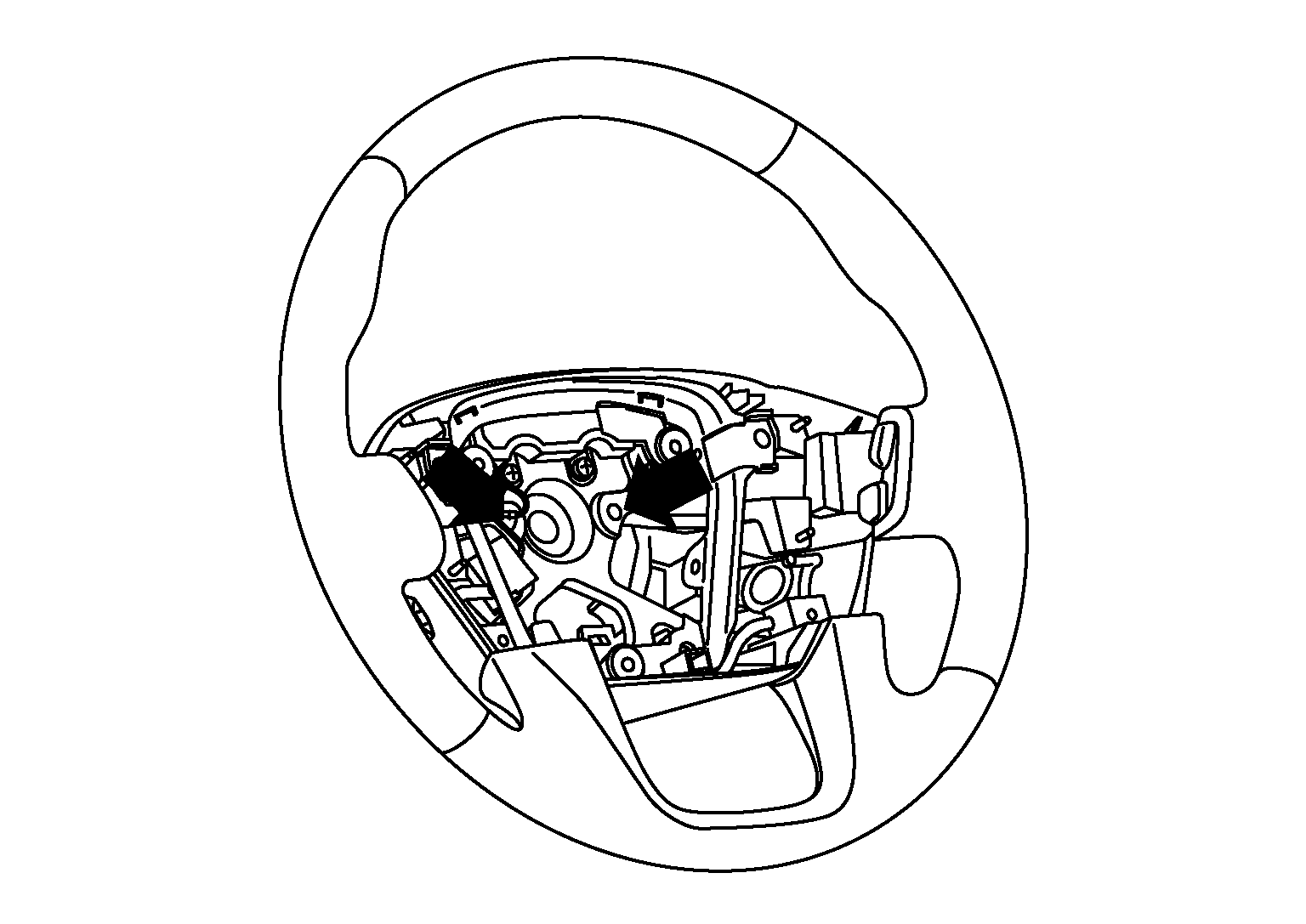

    GNSALGIA0020Z-020Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove steering wheel rear cover and steering wheel switches, if required. Refer to Removal and Installation (DISPLAY AUDIO), Removal and Installation (NAVIGATION).
