Exploded View - Steering Gear

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

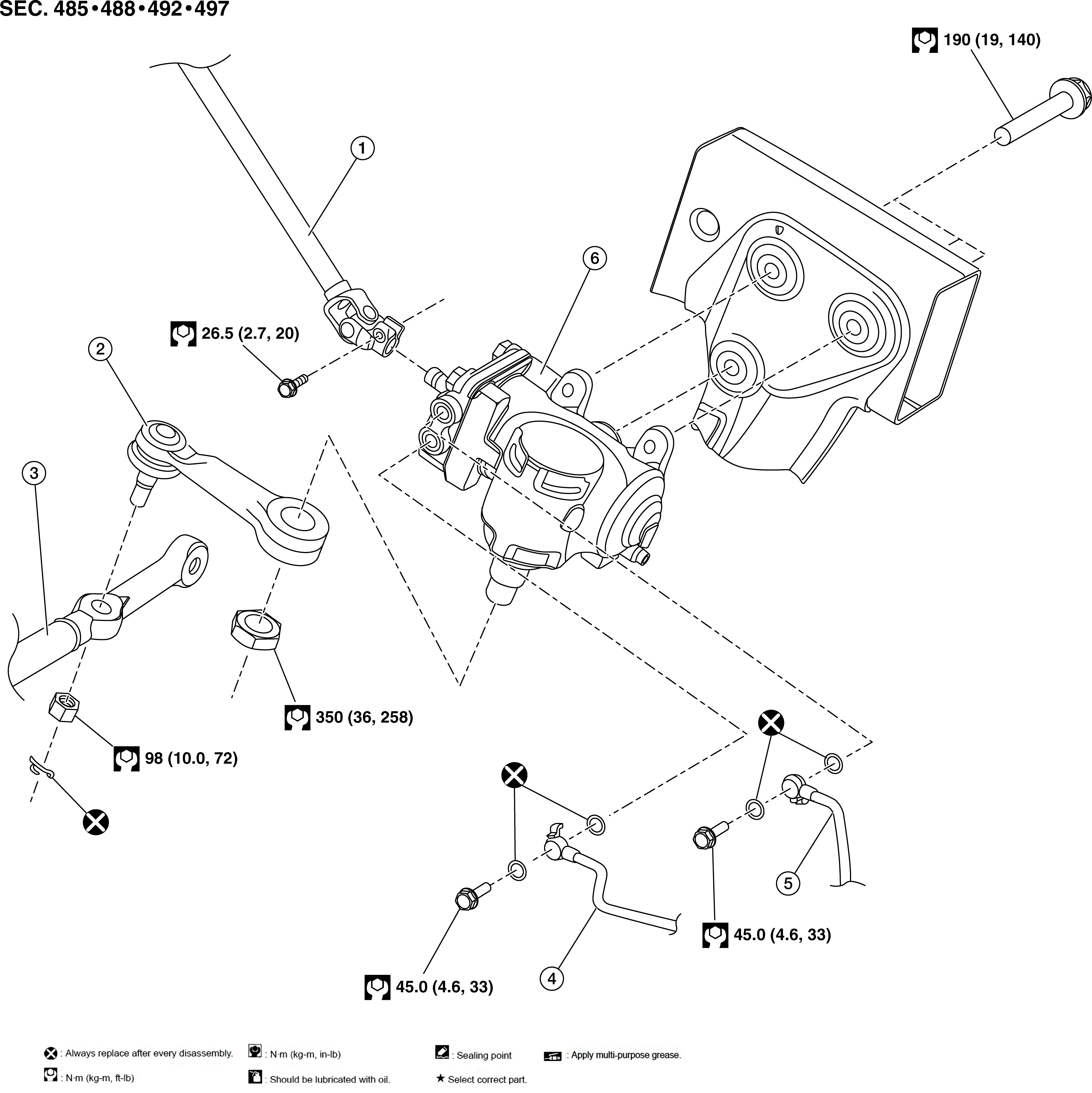

Fig 1: Steering Gear With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering lower joint	2.	Pitman arm	3.	Relay rod
4.	Power steering return line	5.	Power steering pressure line	6.	Steering gear
