Power Steering Oil Pump Bracket (VQ40DE)

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Remove the power steering oil pump.
Remove the bolts and the power steering oil pump bracket.

Installation

Position the bracket and install the bracket to block bolts finger tight.

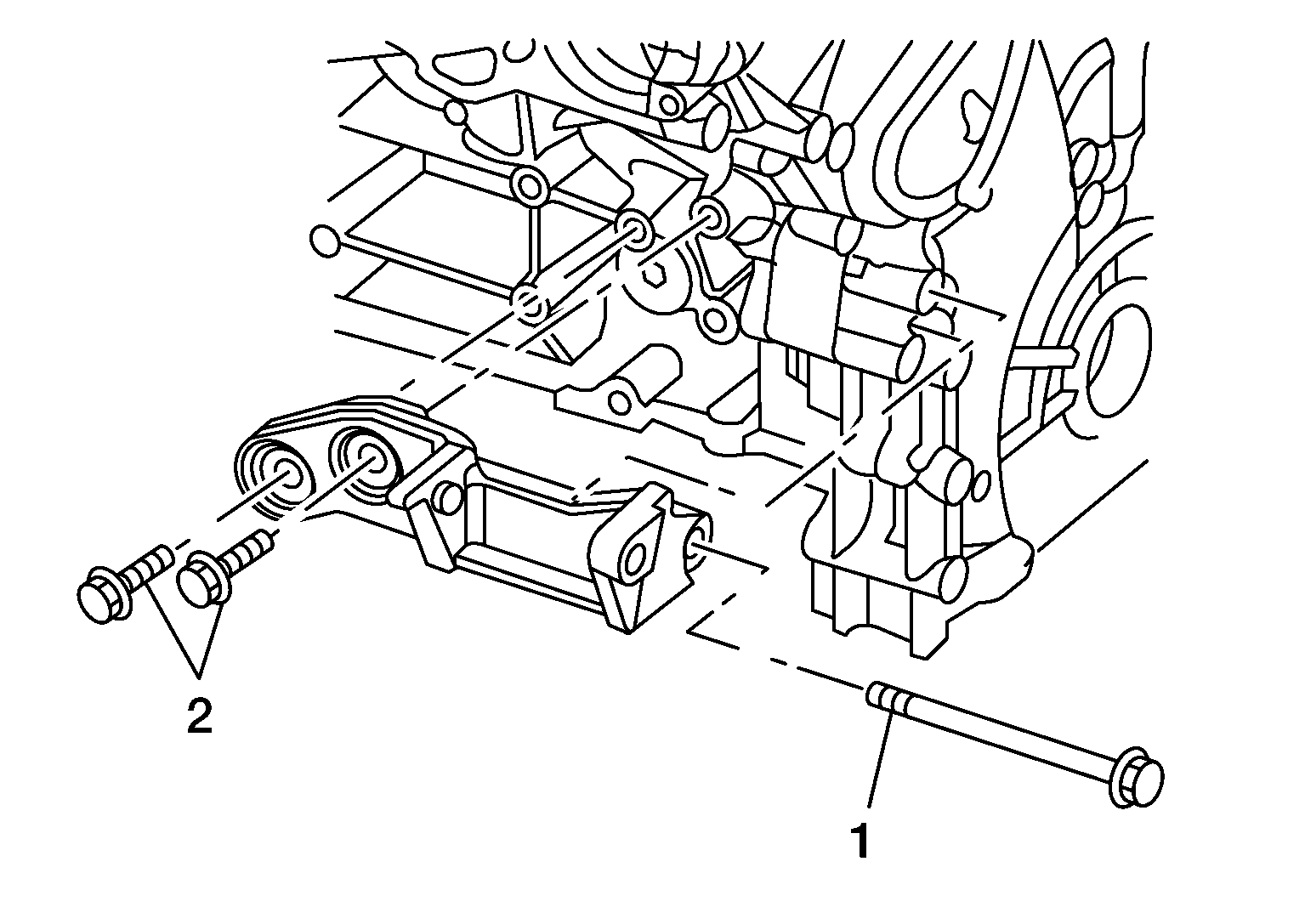

Tighten the bolts to specification in order as shown.

Courtesy of NISSAN NORTH AMERICA, INC.

Bracket to front of block bolt (1)	: 61.3 N.m (6.3 kg-m, 45 ft-lb)
Bracket to side of block bolt (2)	: 61.3 N.m (6.3 kg-m, 45 ft-lb)

Install the power steering oil pump.
