Removal and Installation - VQ40DE: Installation

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

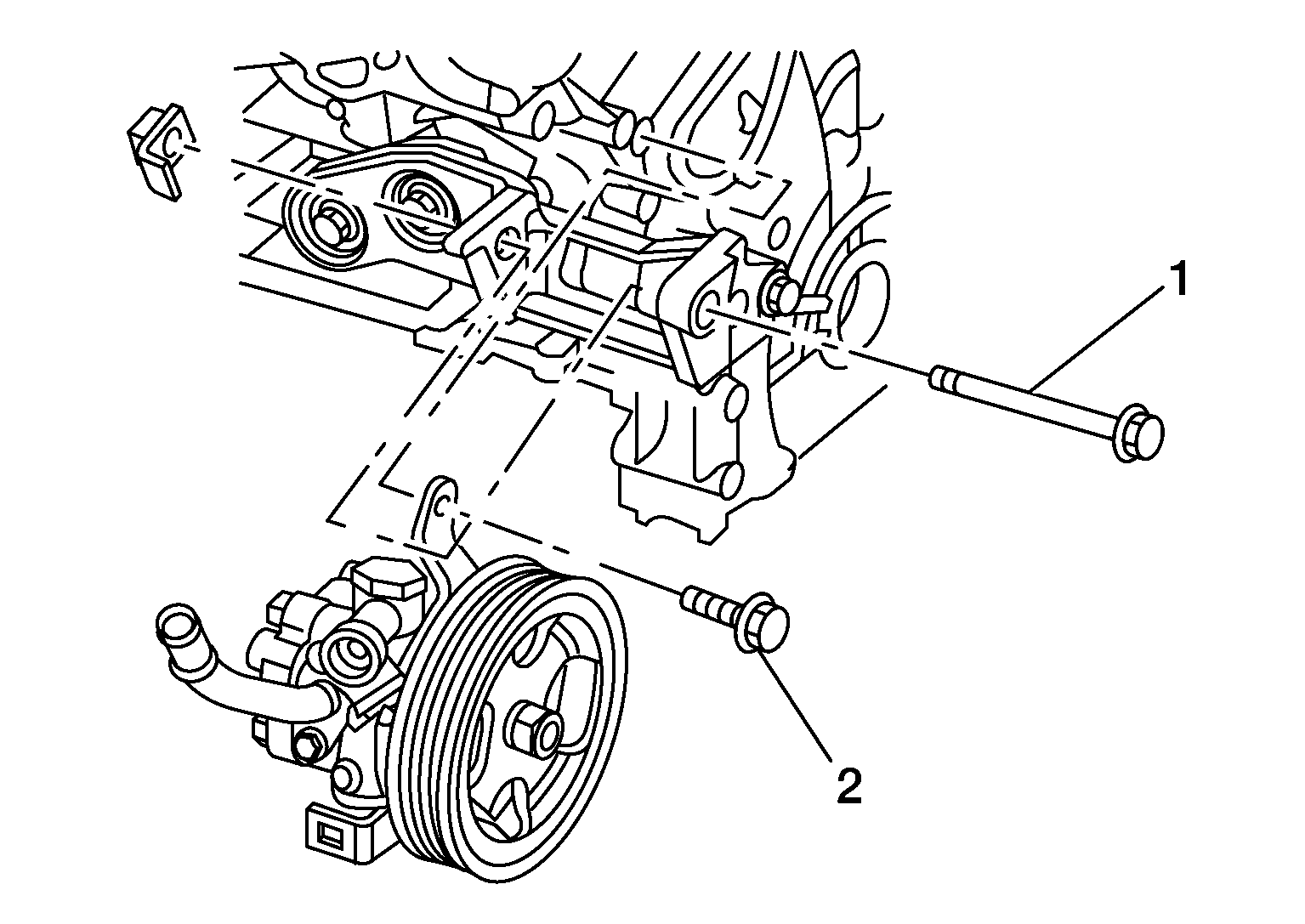

Install the bolts hand tight, then tighten to specification in the order shown.

Courtesy of NISSAN NORTH AMERICA, INC.

Power steering pump to bracket bolt (1)	: 64.7 N.m (6.6 kg-m, 48 ft-lb)
Power steering pump to block bolt (2)	: 28 N.m (2.9 kg-m, 21 ft-lb)

After installation, bleed air. Refer to Refilling and Air Bleeding Hydraulic System .

CAUTION: Do not reuse copper sealing washers.

NOTE: Belt tension is automatic and requires no adjustment.
