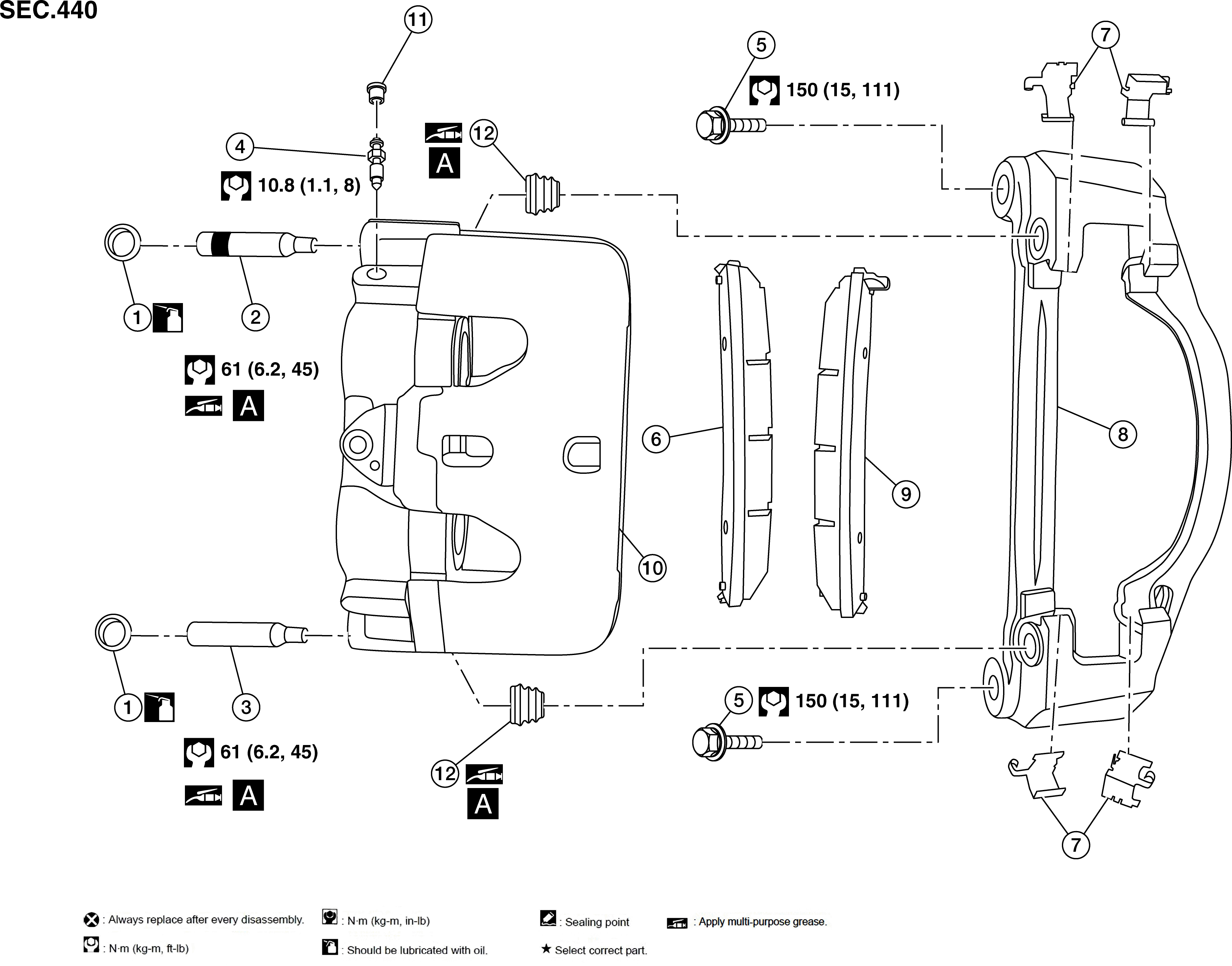

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Guide pin cap
|
2.
|
Upper guide pin
|
3.
|
Lower guide pin
|
|
4.
|
Bleeder valve
|
5.
|
Torque member bolts
|
6.
|
Inner pad
|
|
7.
|
Pad retainer
|
8.
|
Torque member
|
9.
|
Outer pad
|
|
10.
|
Cylinder body
|
11.
|
Bleeder cap
|
12.
|
Guide pin boots
|
|
A.
|
Rubber grease
|
