Removal and Installation of Brake Pads: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove brake fluid reservoir cap.
  2. Remove the wheel and tire assembly using power tool. Refer to Adjustment .
  3. Remove torque member bolts and suspend the caliper assembly with suitable wire so that the brake hose will not stretch.
  4. Remove the brake pads from the caliper assembly.
    CAUTION:
    • Do not damage the piston boot.
    • Do not drop the brake pads.
    • Remember each position of the removed brake pads.

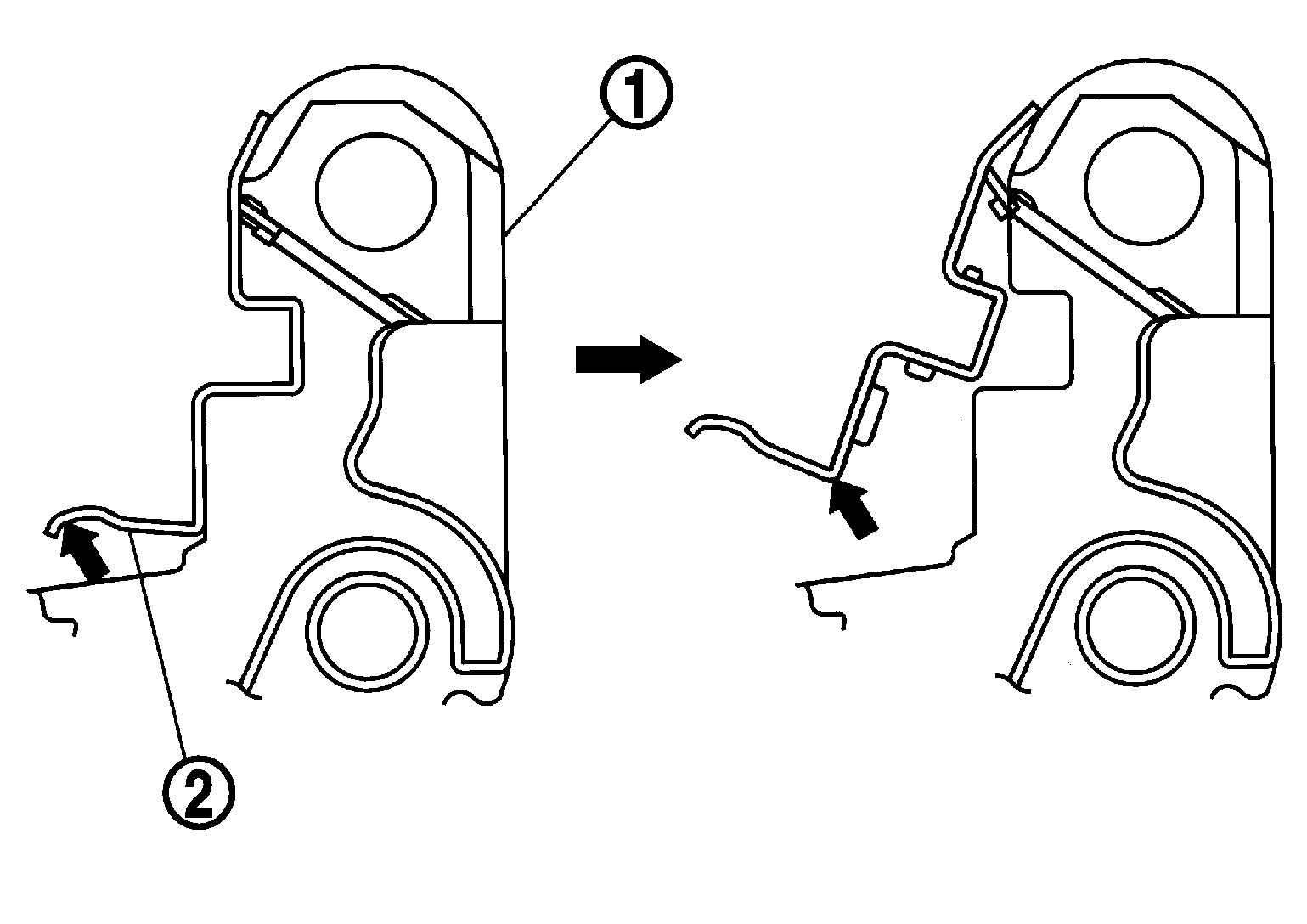

  5. Remove the brake pad retainers (2).
    GNSJPFIA0118Z-118Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not deform the pad retainer when removing the pad retainers (2) from the torque member (1).
  6. Perform inspection after removal. Refer to Inspection Brake Pads .
