Removal and Installation: Notes
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|

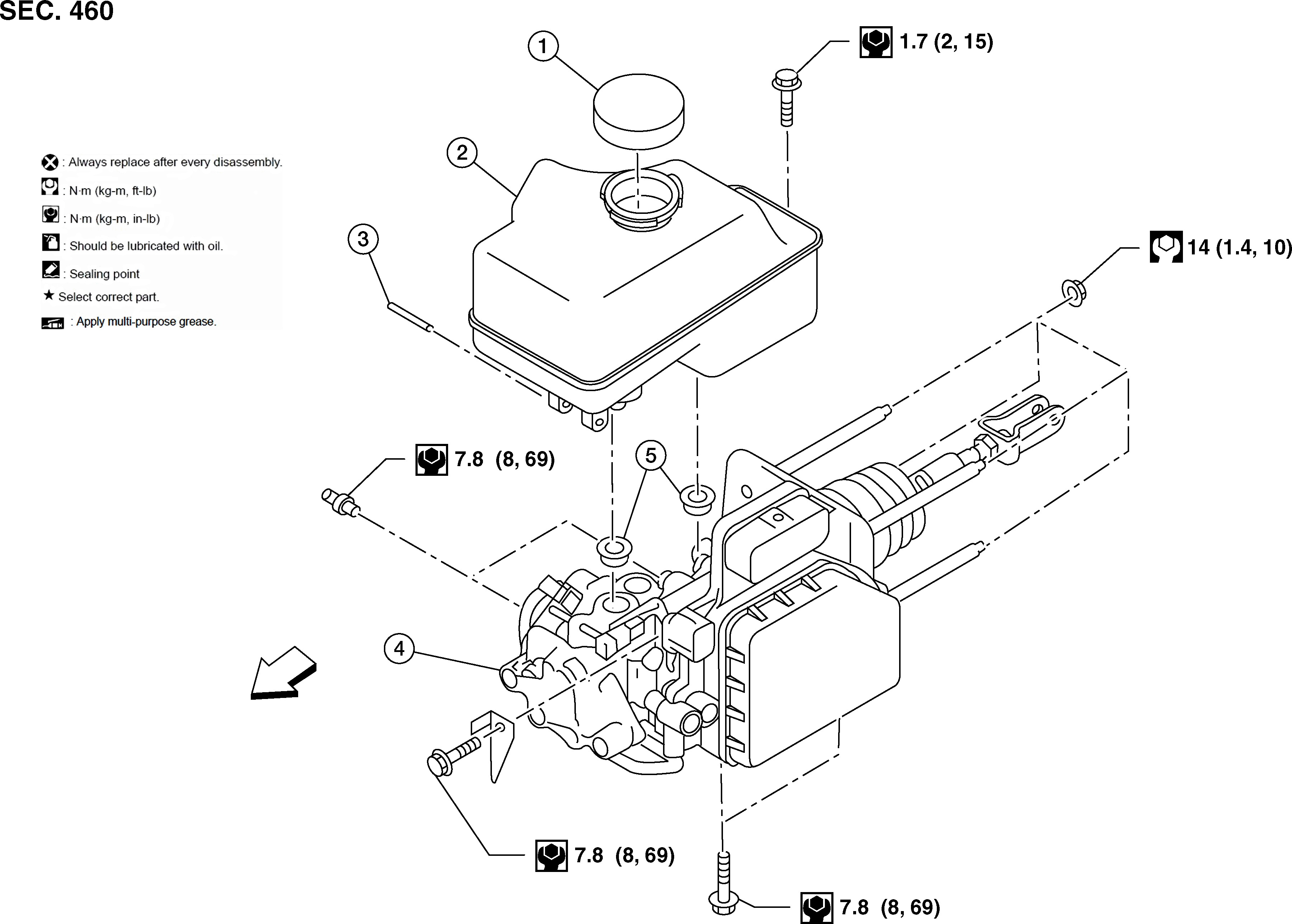

1. |
Reservoir cap |
2. |
Reservoir tank |
3. |
Pin |
|
4. |
Hydraulic booster assembly |
5. |
Grommet |
|
Front |
CAUTION:
Do not spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it off immediately and wash with water if it gets on a painted surface.
NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
