Adjustment Before Installation

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Input Rod Length adjustment

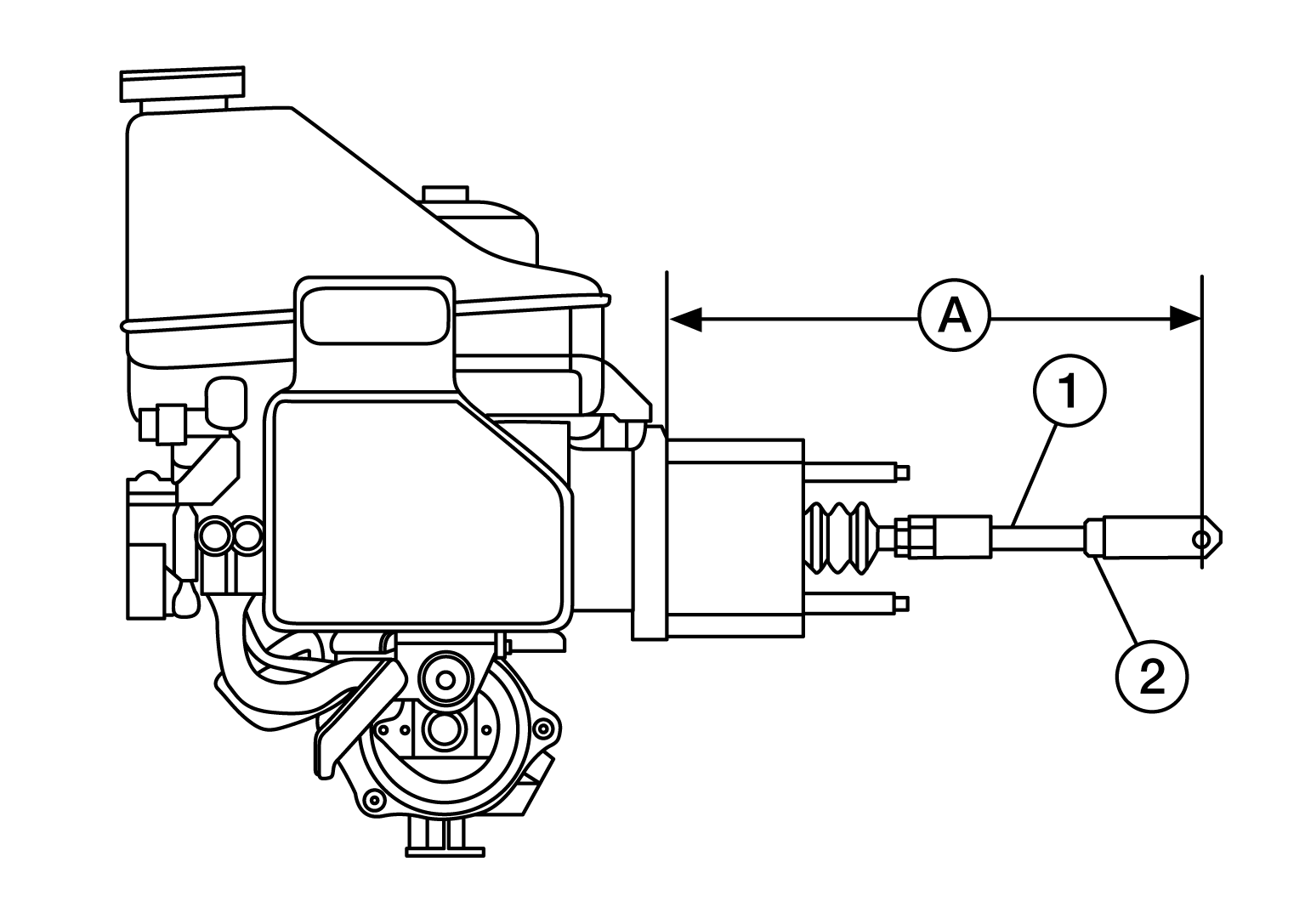

Loosen the lock nut (2) and adjust the input rod (1) to the specified length (A).

Courtesy of NISSAN NORTH AMERICA, INC.

Input rod length (A)

: Refer to Brake Booster .

Tighten the lock nut to the specified torque.
