Hydraulic Booster Assembly: Disposal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

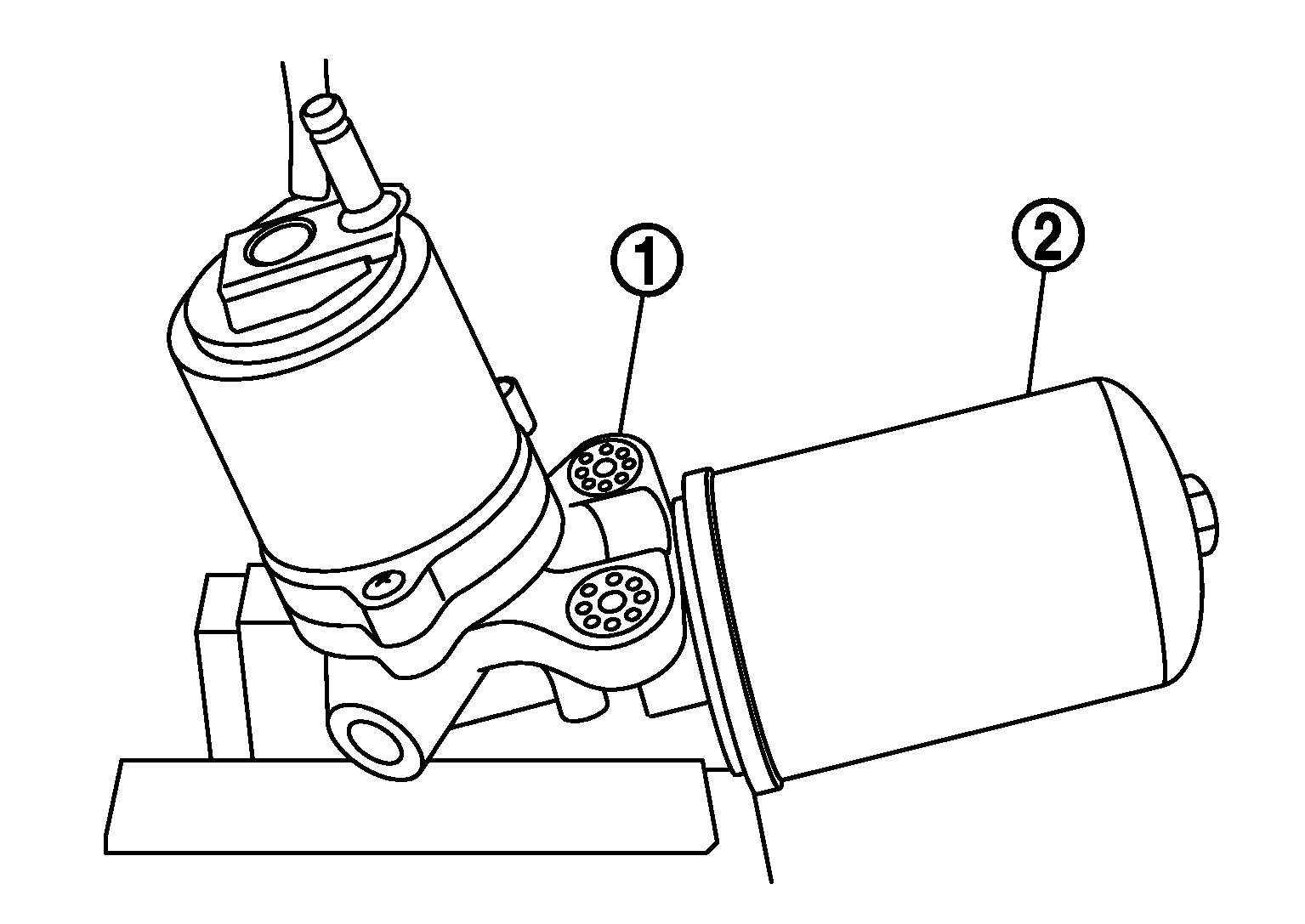

Remove accumulator (2) from motor/accumulator assembly (1).

Courtesy of NISSAN NORTH AMERICA, INC.

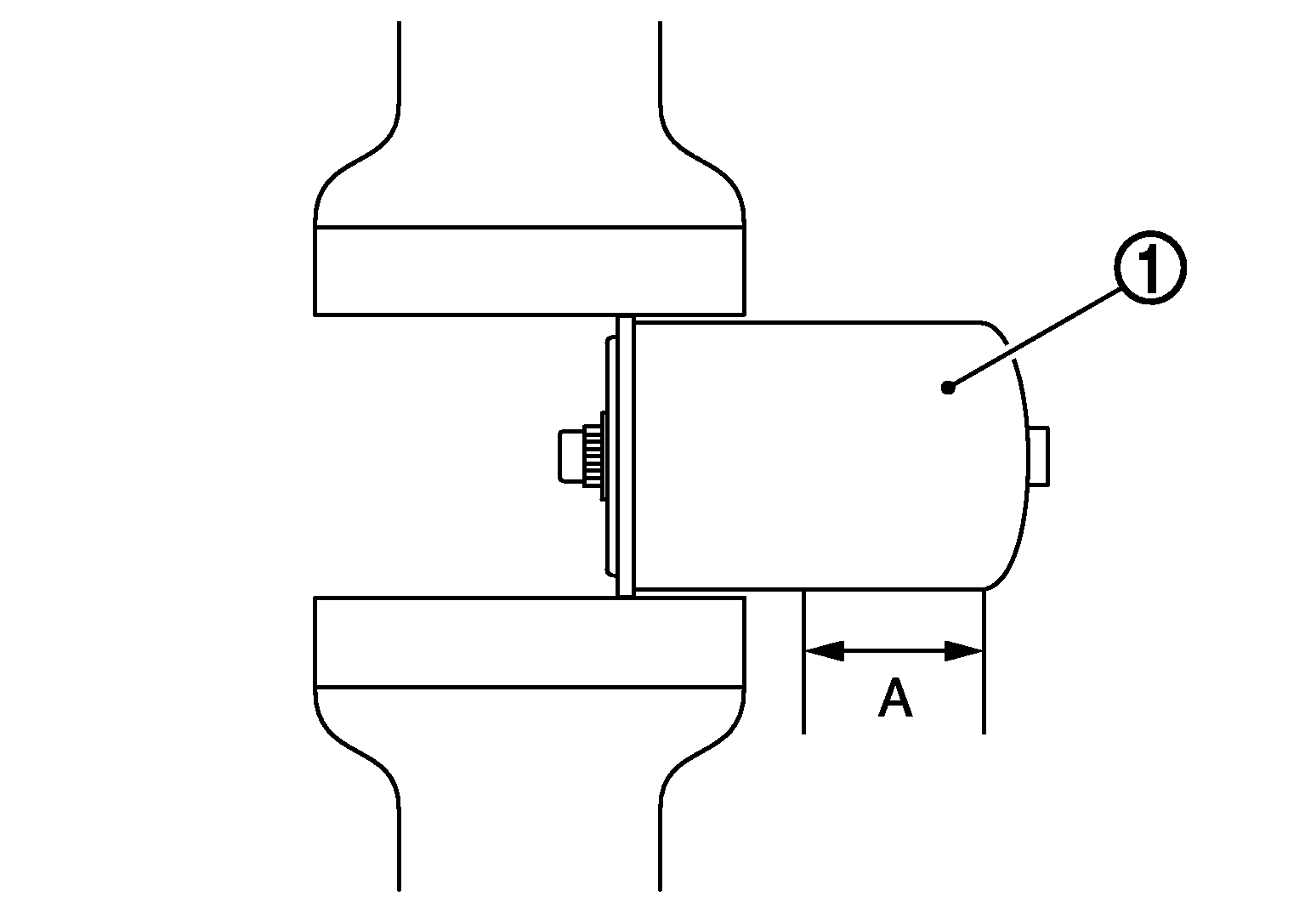

Secure the accumulator (1) to a vise.

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Always set copper plates or cloth between vise grips when securing the accumulator to a vise.
- Do not overtighten the vise.
Make a slit in the area (A) with a saw to release filler gas.

Area (A)

: 50 mm (1.97 in)
WARNING:
- Wear eye protection (safety glasses).
- Wear gloves.
CAUTION:
- A cut in the area must be made perpendicularly.
- Perform the procedure slowly.
- Cover with cloth to avoid sawdust to spatter.
NOTE: The gas is clear colorless, odorless, and harmless.
