Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire assembly using power tool. Refer to Adjustment .
  2. Loosen the flare nut with a flare nut wrench and separate the brake tubes and the brake hoses.
    CAUTION:
    • Do not scratch the flare nut and the brake tube.
    • Do not bend sharply, twist or strongly pull out the brake hose or brake tube.
    • Cover open end of brake hose or brake tube when disconnecting to prevent entrance of dirt.

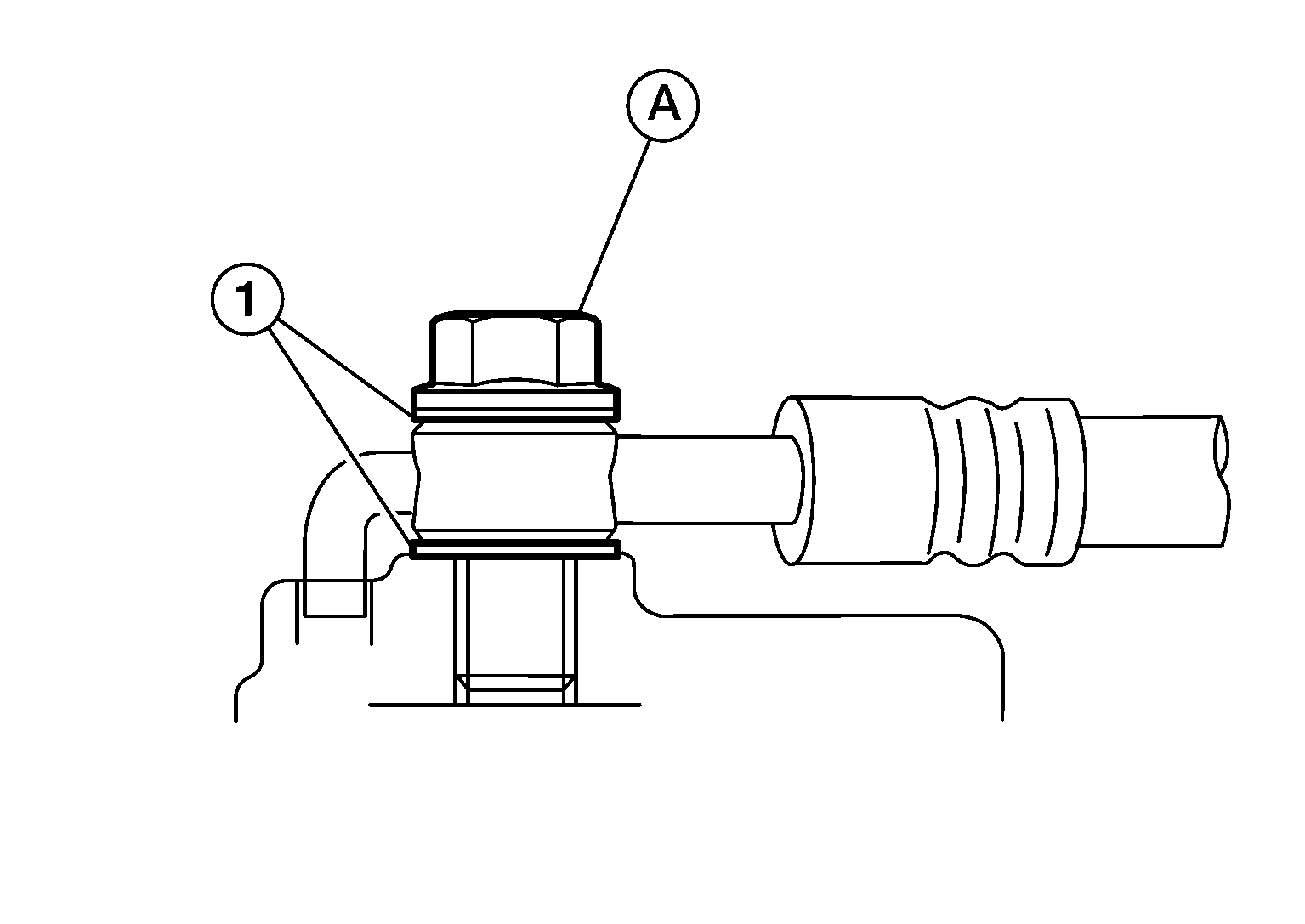

  3. Remove the union bolt (A) and copper sealing washers (1), and remove the brake hose from the brake caliper assembly.
    GNSAWFIA0795Z-795Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse copper sealing washers.
  4. Remove brake hose connector nut.
  5. Remove the lock plate and remove the brake hose from the bracket.
