Inspection and Adjustment: Inspection

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

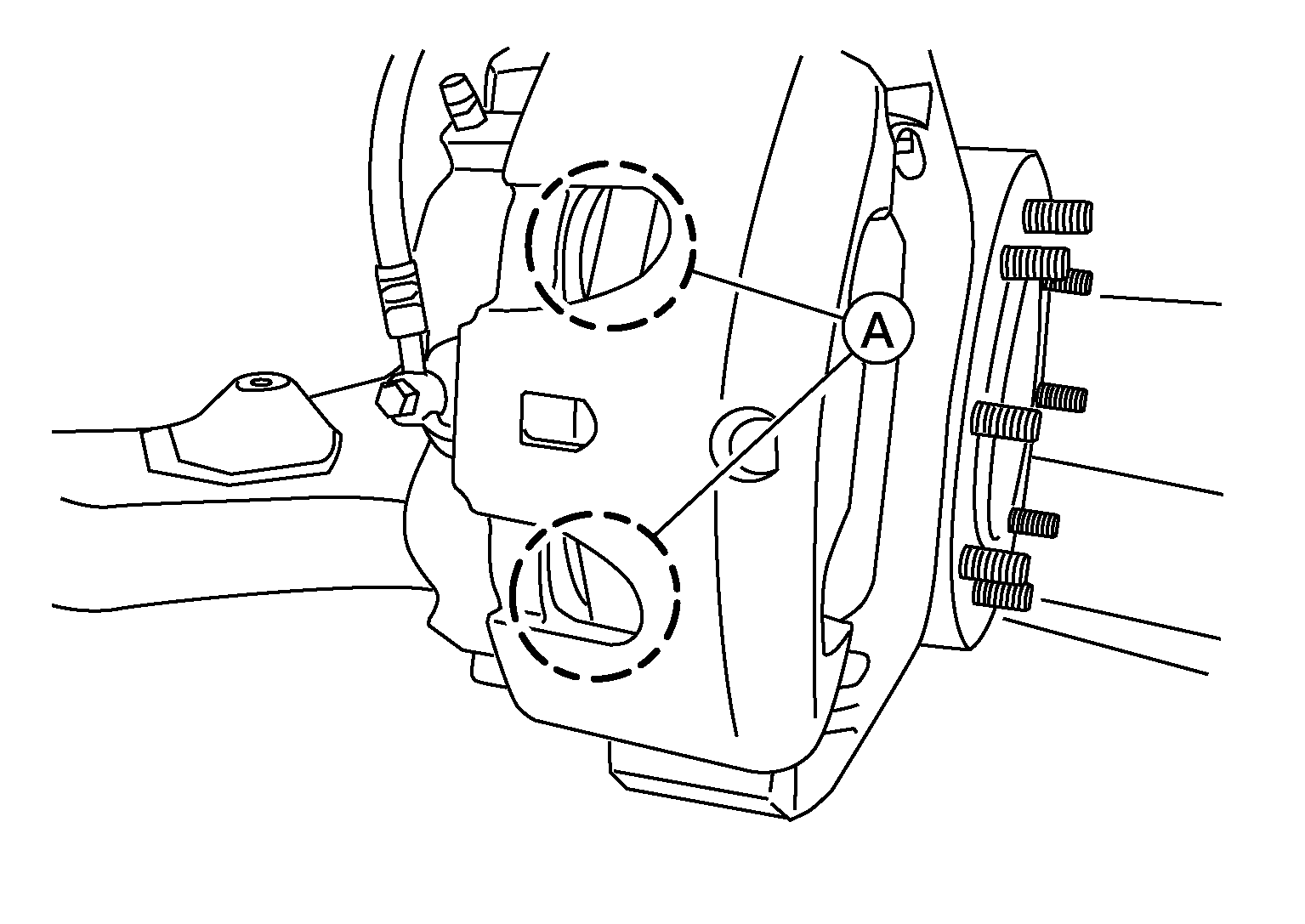

Check the thickness of brake pad using the inspection hole (A) on brake caliper assembly. Check using a scale if necessary.

GNSALFIA0202Z-202Courtesy of NISSAN NORTH AMERICA, INC.

Wear thickness

: Refer to Front Disc Brake .
