Stabilizer Bar Connecting Rod
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
Removal

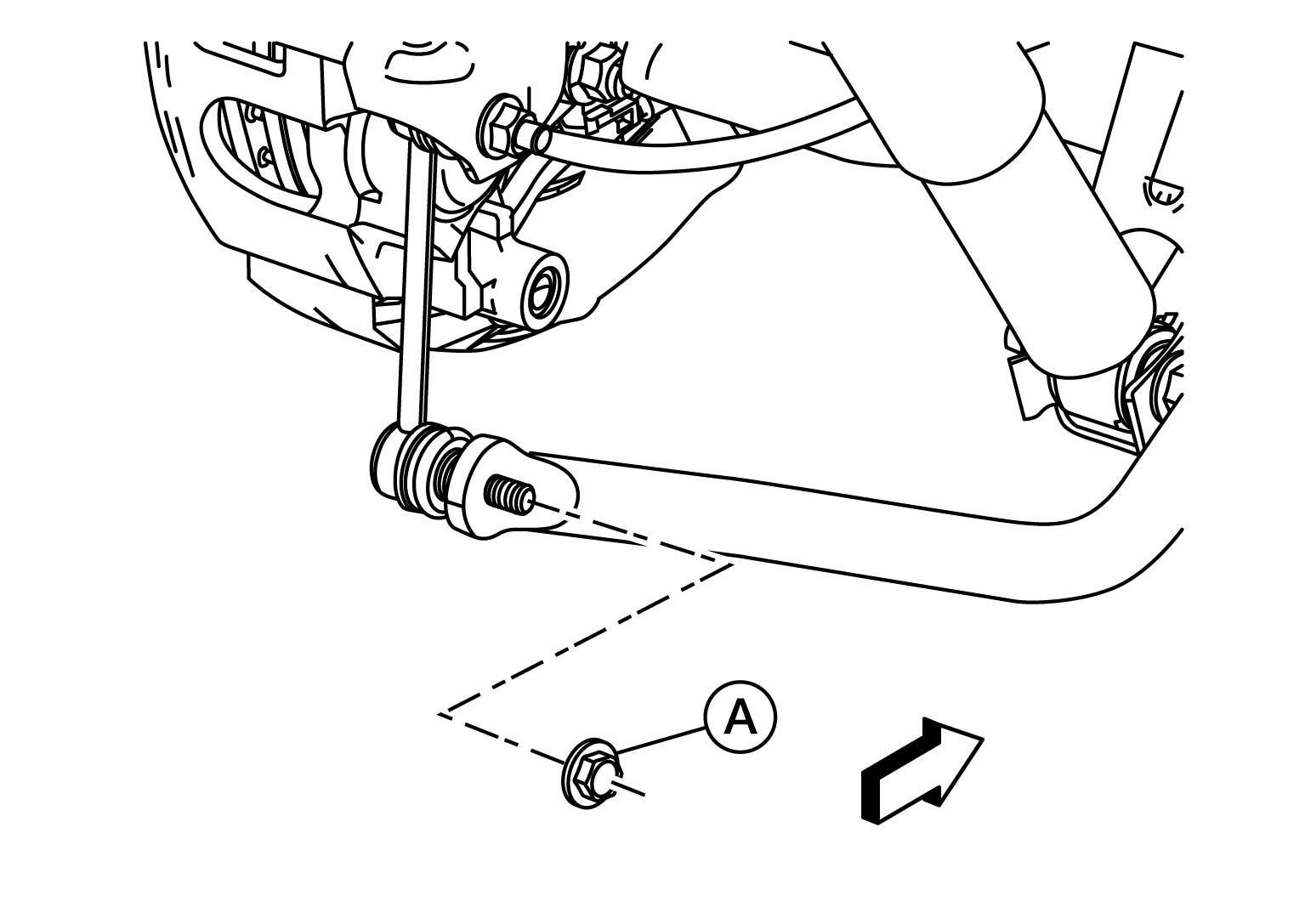

- Remove the connecting rod lower nut (A) from the end of the stabilizer bar.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
: Front

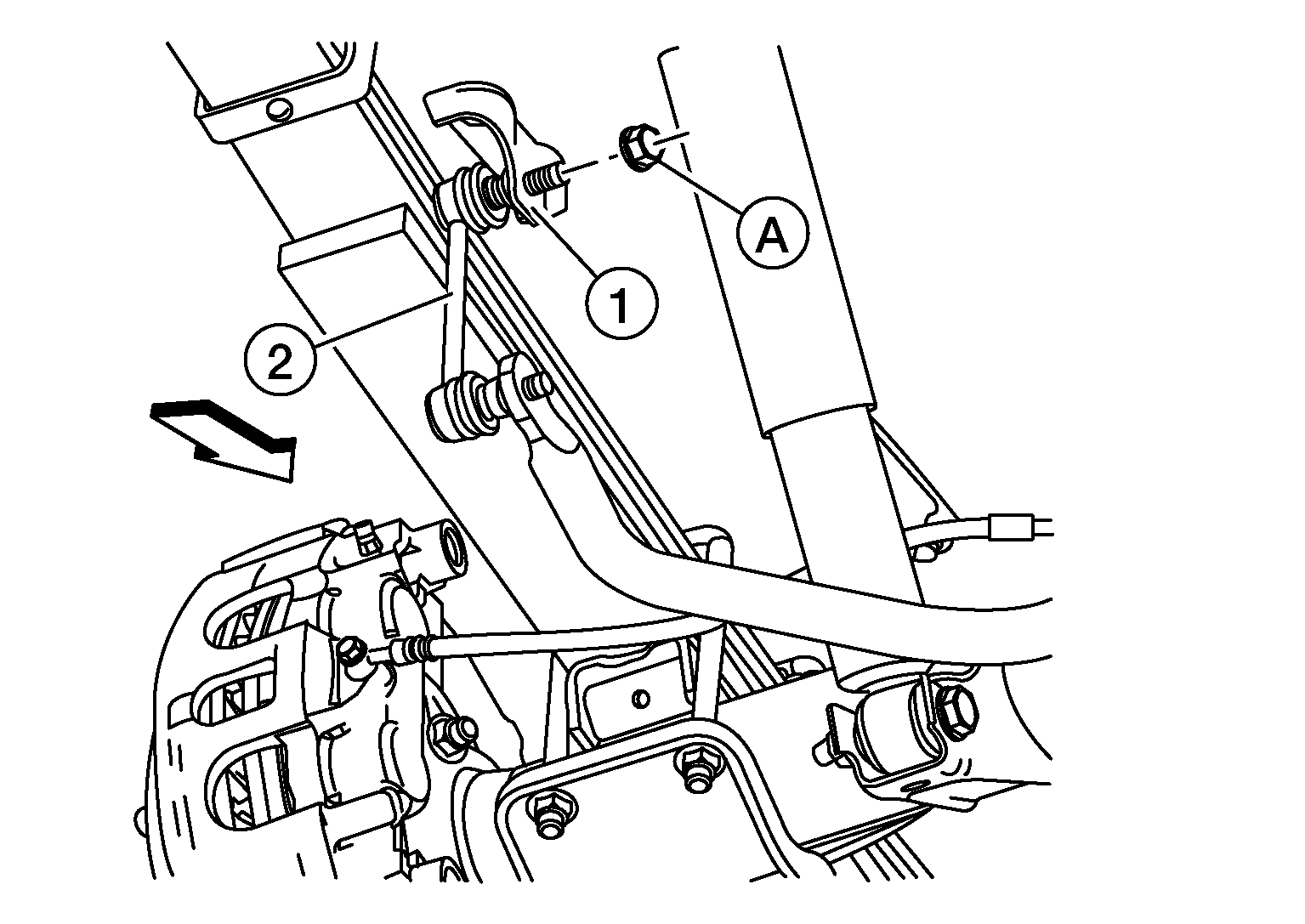

- Remove the connecting rod upper nut (A) from the connecting rod bracket (1).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
: Front
- Remove the connecting rod (2).
Installation
Installation is in the reverse order of removal.

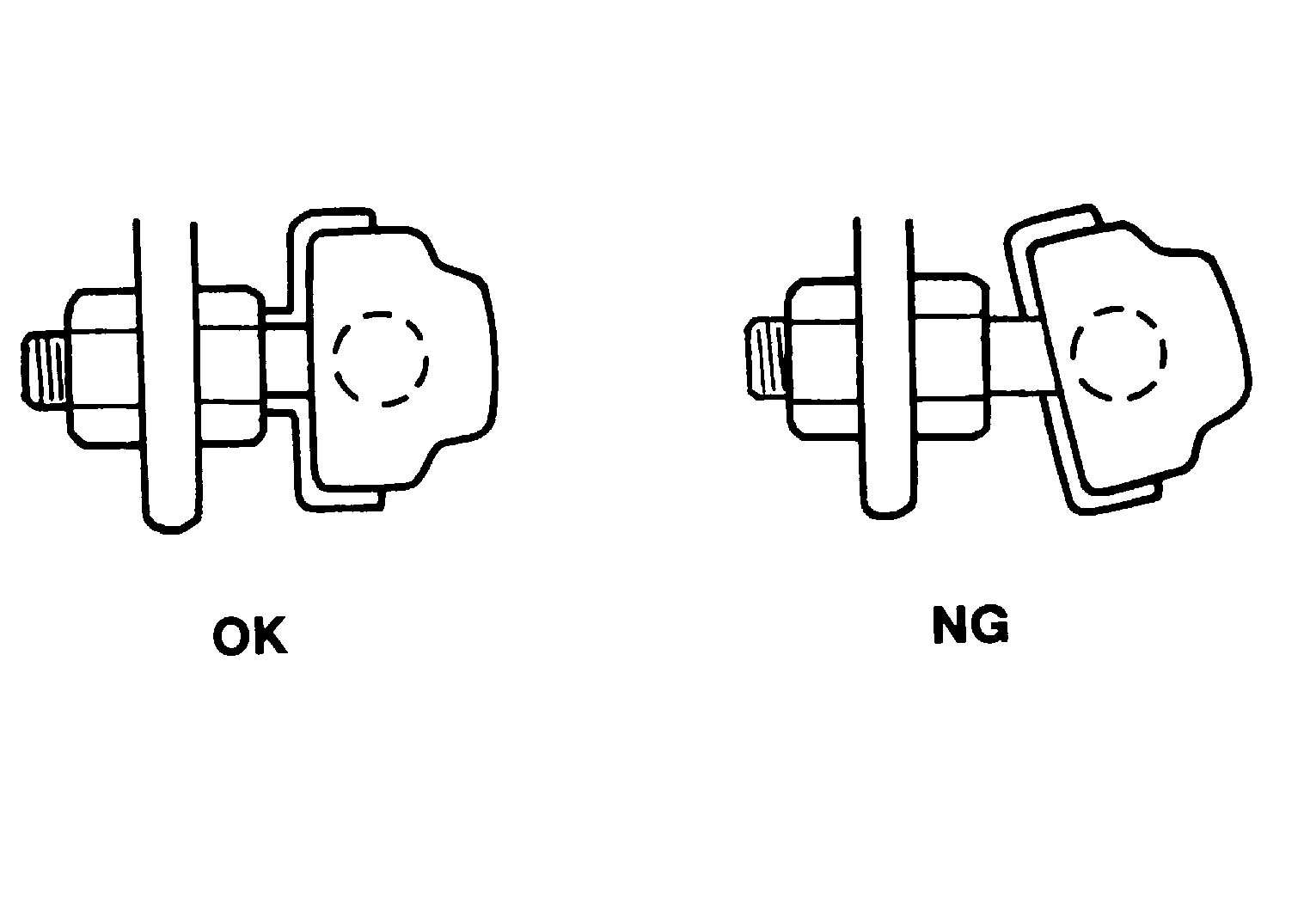

- Install the stabilizer bar with the ball joint sockets properly aligned.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
