Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

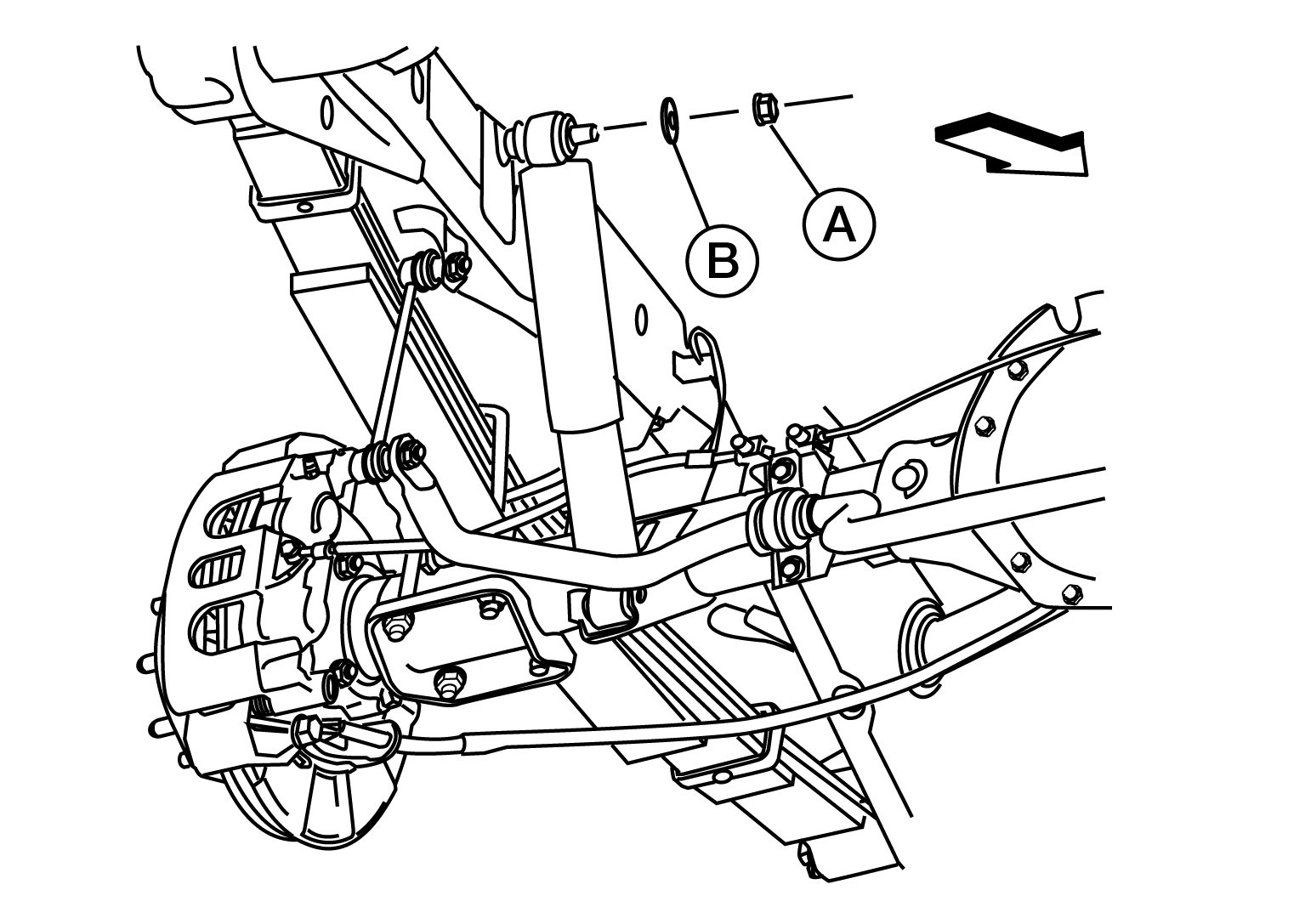

  1. Remove the shock absorber upper nut (A) and washer (B) using power tool.
    GNSALEIA0088Z-088Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

  2. Remove the shock absorber lower nut (A), and bolt (B) using power tool.
    GNSALEIA0089Z-089Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

  3. Remove the shock absorber.
