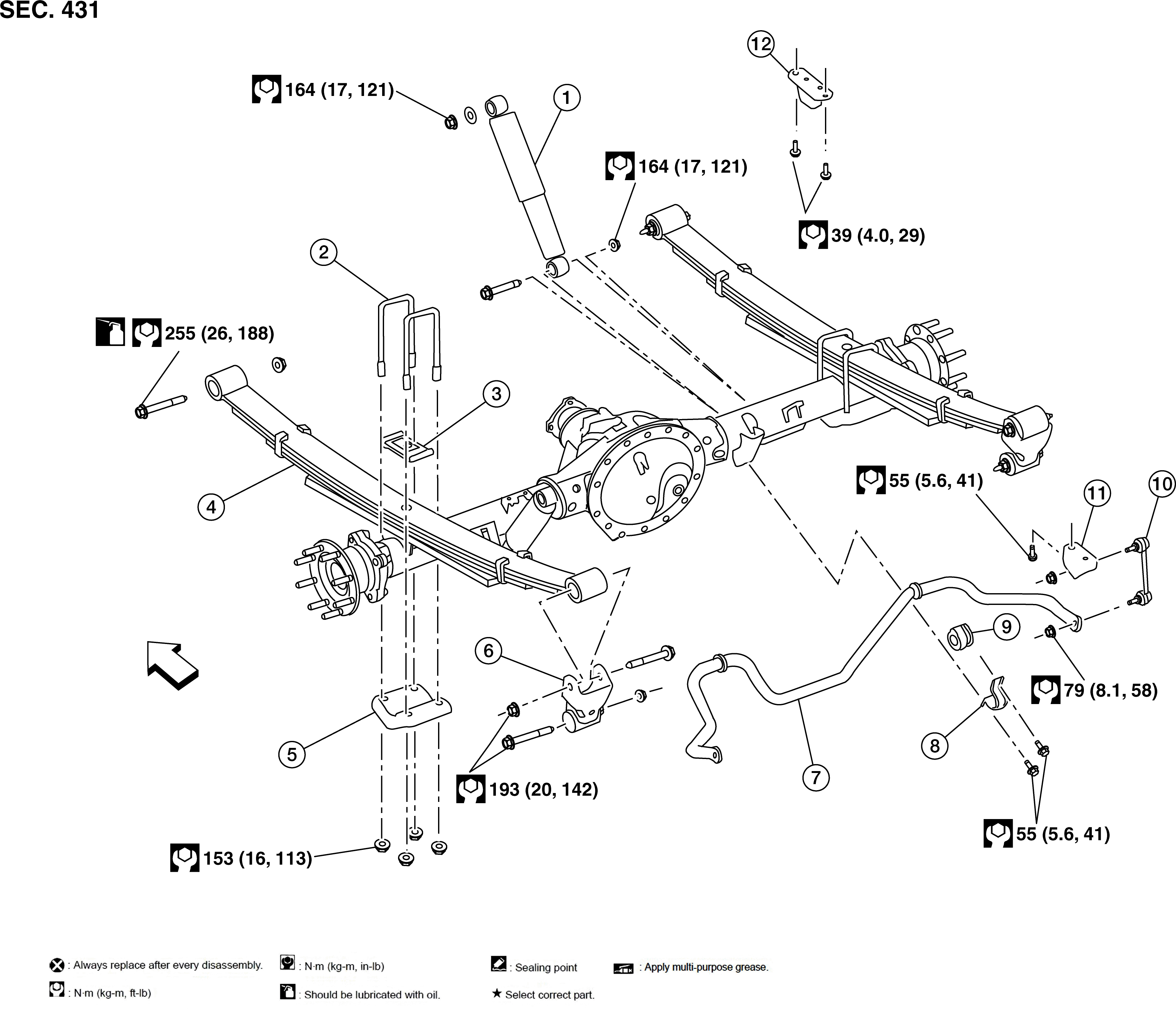

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Shock absorber |
2. |
Rear spring U-bolts |
3. |
Rear spring upper seat |
|
4. |
Rear leaf spring |
5. |
Rear spring lower seat |
6. |
Shackle assembly |
|
7. |
Stabilizer bar |
8. |
Stabilizer bar clamp |
9. |
Stabilizer bar bushing |
|
10. |
Connecting rod |
11. |
Connecting rod bracket |
12. |
Bumper assembly |
|
|
Front |
CAUTION:
When installing the components with rubber bushings, the final nut tightening must be carried out under unladen* conditions with the tires on level ground.
* (Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.)
