Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire assembly using power tool. Refer to Adjustment .
  2. Remove the upper fender protector to access upper link. Refer to Removal and Installation .
  3. Remove and discard the nut (A); position the brake hose aside.

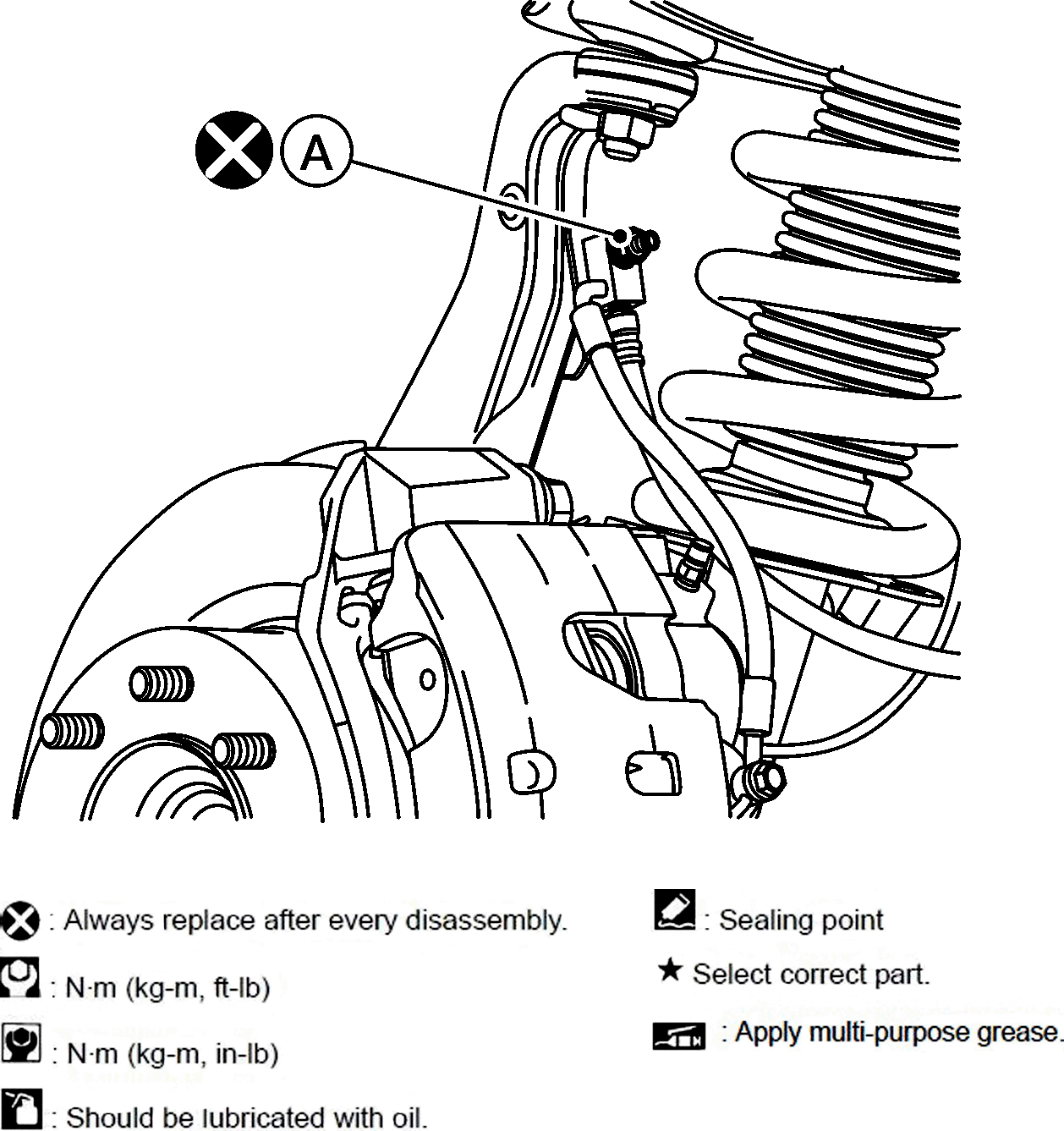

    GNSAWEIA0360Z-360Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse nut.
  4. Remove cotter pin (A) and nut (B) from upper link ball joint.
    GNSALEIA0096Z-096Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse cotter pin.
  5. Support the knuckle and lower link using a suitable jack.
  6. Separate upper link ball joint stud from steering knuckle using suitable tool.
  7. Remove upper link nuts (A), bolts (B) and the upper link (1).

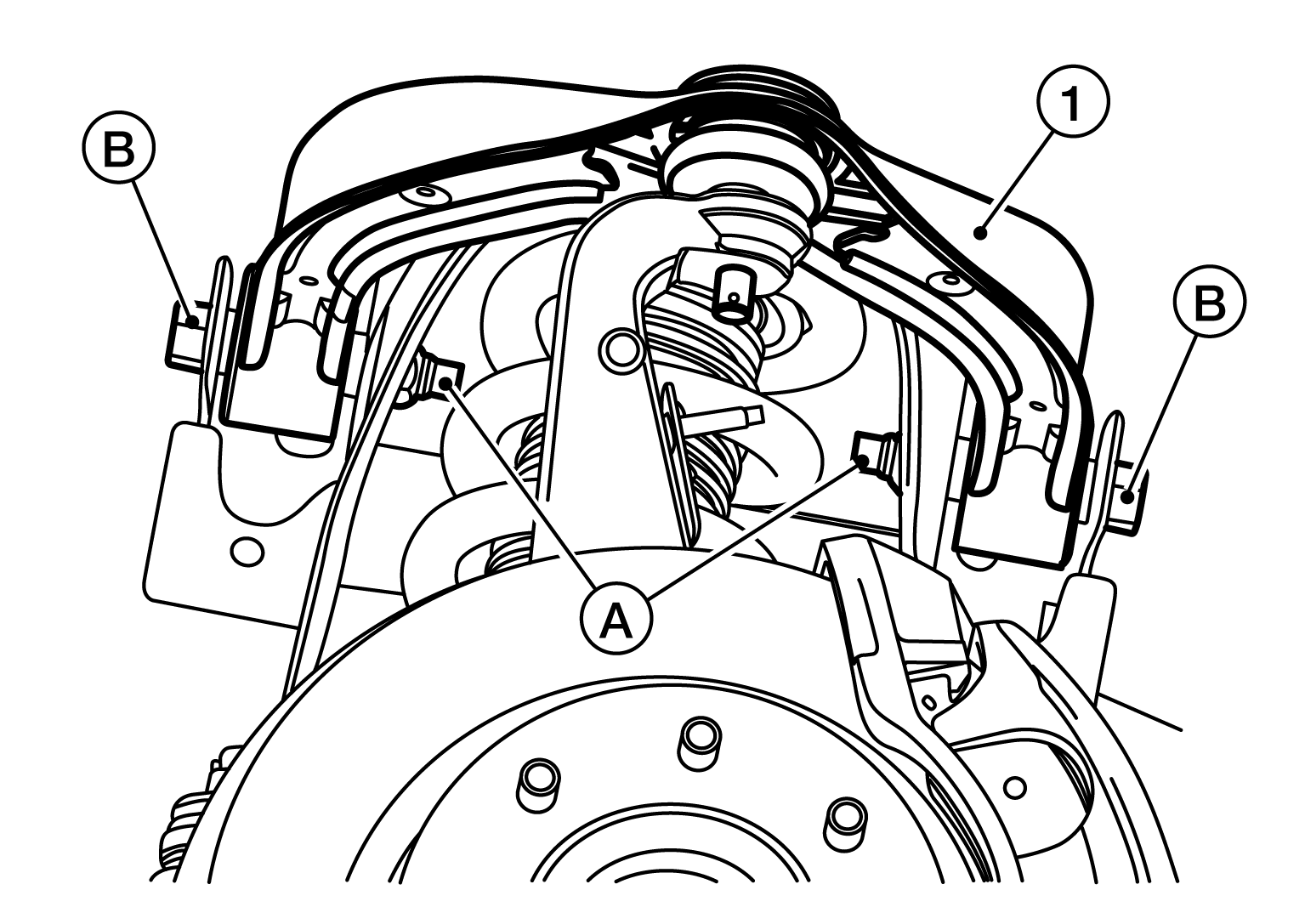

    GNSDB115411Courtesy of NISSAN NORTH AMERICA, INC.
