Exploded View

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

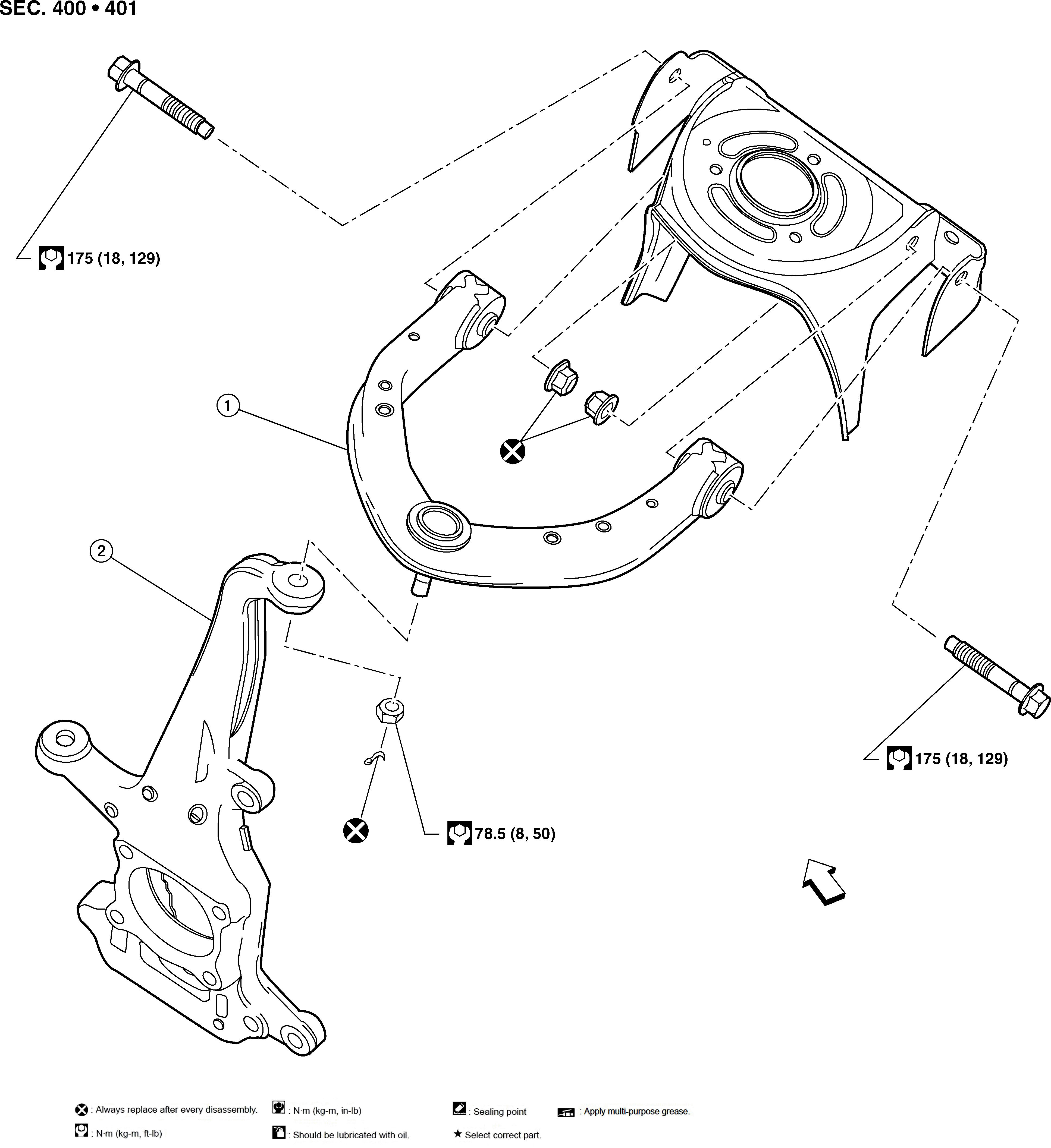

Fig 1: Upper Link With Torque Specifications
GNSALEIA0119GB-119Courtesy of NISSAN NORTH AMERICA, INC.

1.

Upper link

2.

Steering knuckle

SYMBOL

Front
