Stabilizer Bar Connecting Rod
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|

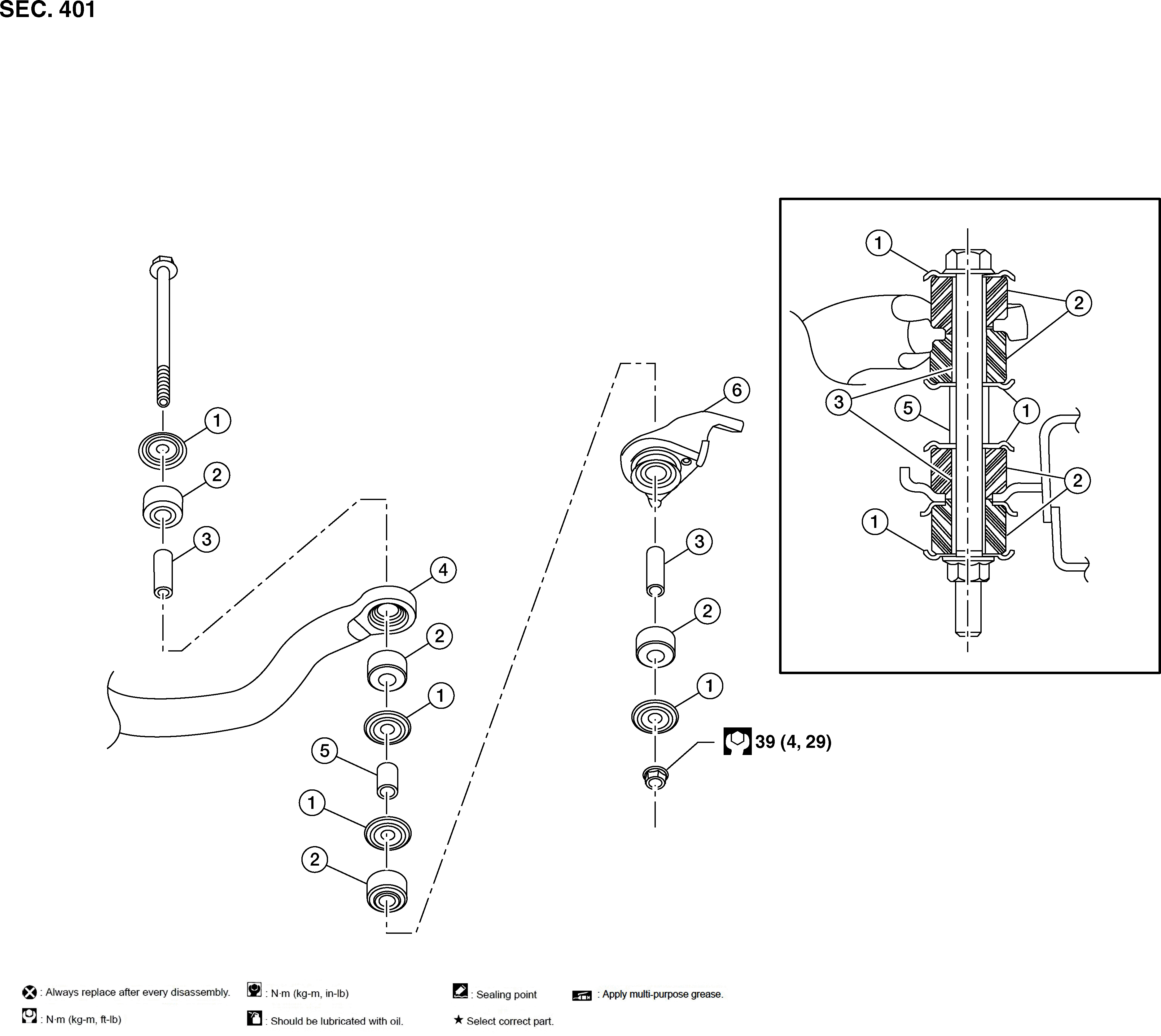

1. |
Washer |
2. |
Bushing |
3. |
Collar-Outer |
|
4. |
Stabilizer bar |
5. |
Collar-inner |
6. |
Lower link |
Removal
- Remove the connecting rod nut and bolt.
- Remove the washers, bushings inner and outer collars.
Installation
Installation is in the reverse order of removal.
CAUTION:
Do not reuse connecting rod nut.
- Tighten the nut and bolt to specification.
