Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Remove wheel hub and bearing assembly. Refer to Removal and Installation .
- Disconnect the harness connector from the wheel sensor.
  CAUTION: Do not remove wheel sensor from wheel hub and bearing assembly for this procedure.

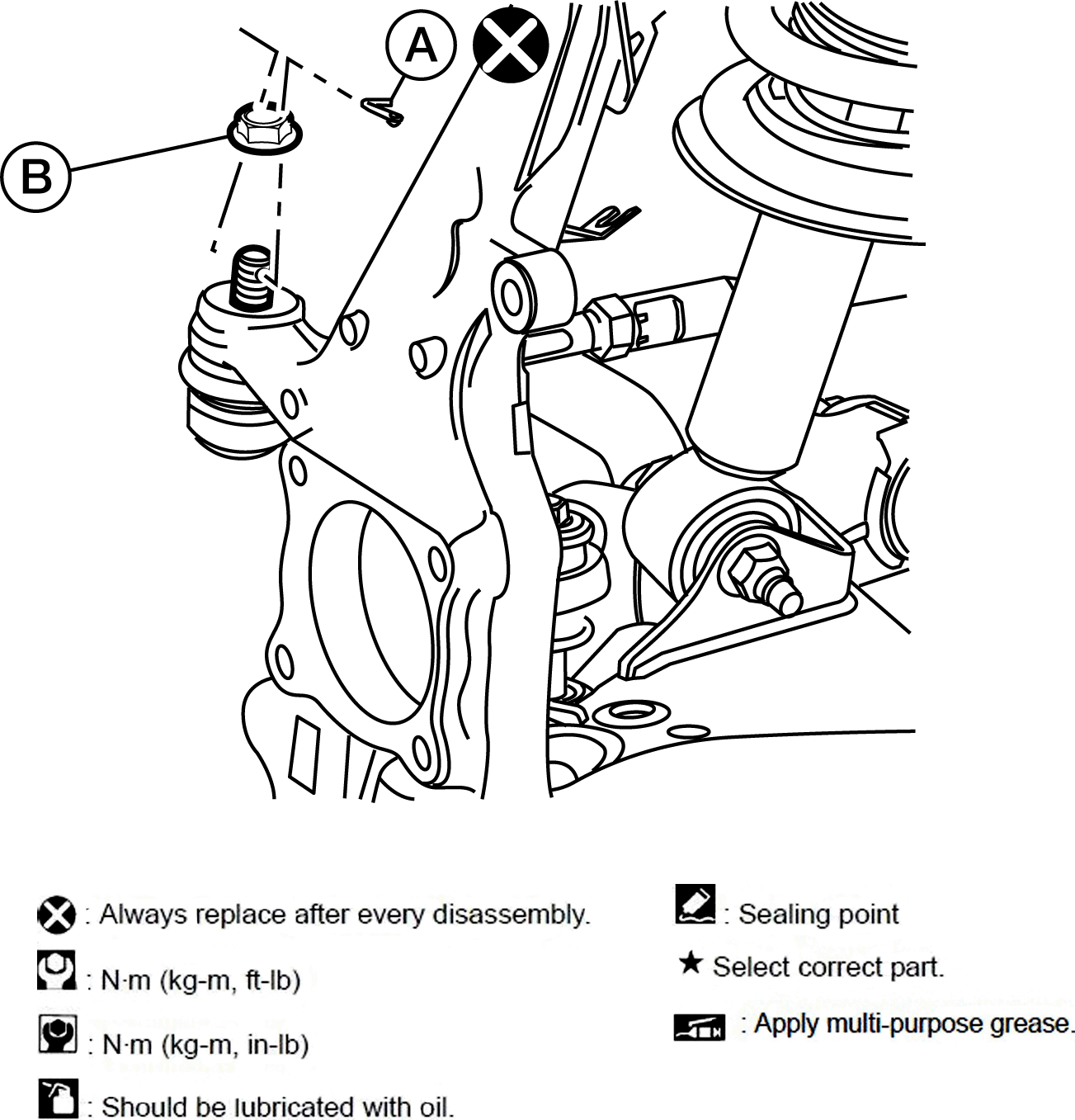

Remove the cotter pin (A) and nut (B) from the outer socket and discard the cotter pin. Separate the outer socket from the steering knuckle using suitable tool.

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Be careful not to damage the outer joint boot.
- Do not reuse cotter pin.

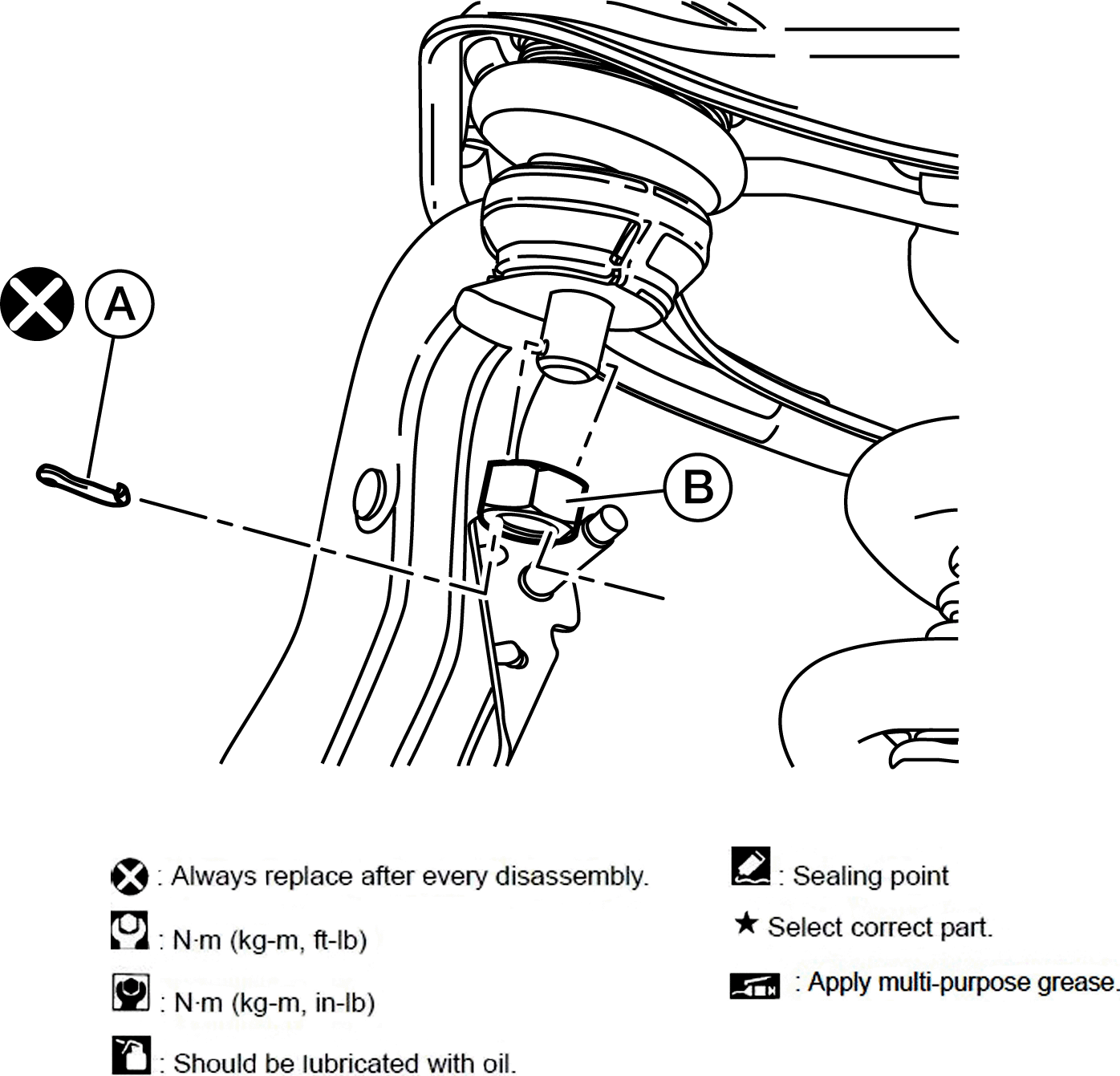

Remove cotter pin (A) and nut (B) from upper link ball joint and discard the cotter pin. Separate the upper link ball joint from the steering knuckle using suitable tool.

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Be careful not to damage the upper link ball joint boot.
- Do not reuse cotter pin.

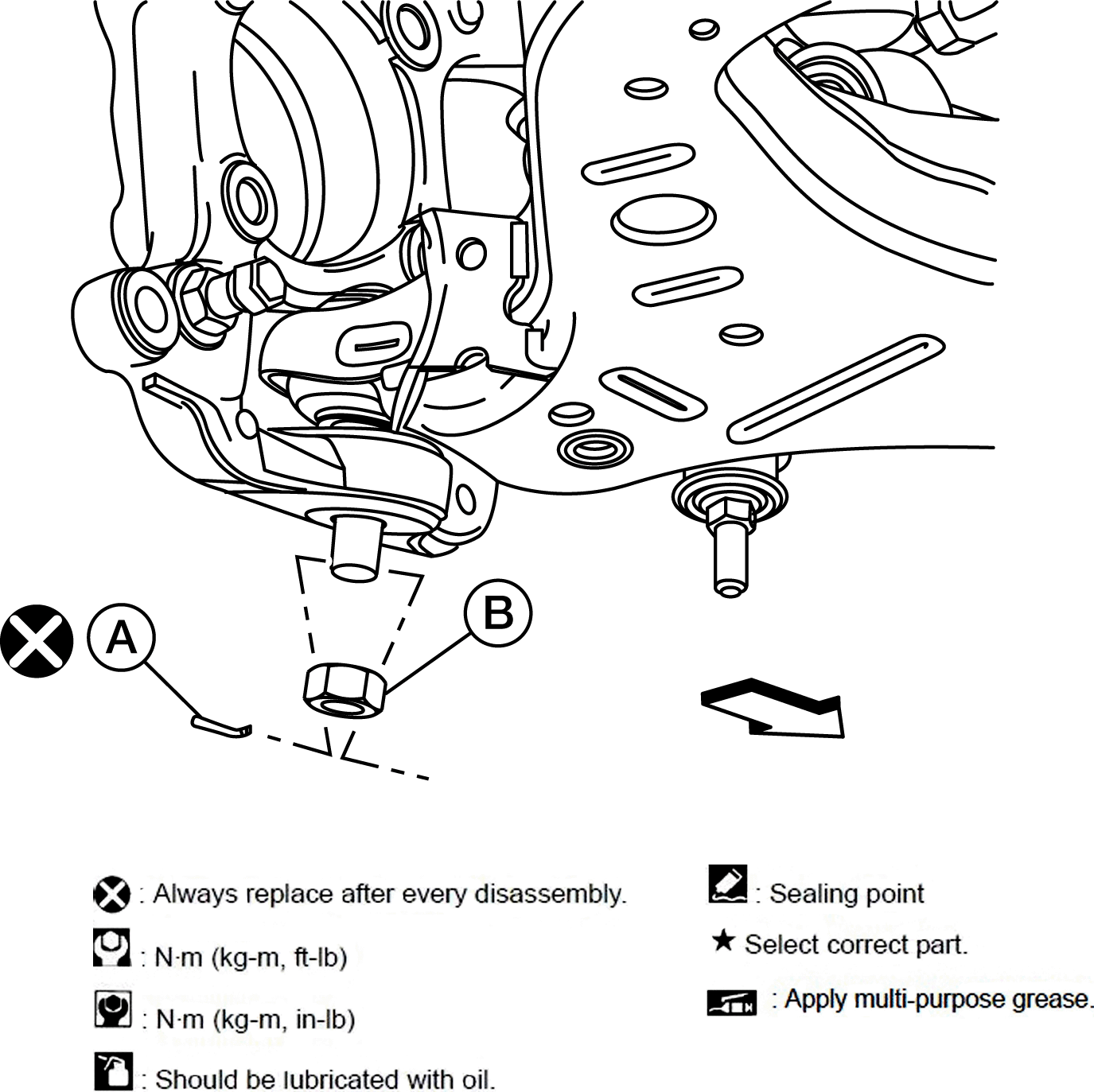

Remove the cotter pin (A) and nut (B) from the lower link ball joint and discard the cotter pin. Separate the lower link ball joint from steering knuckle using suitable tool.

Courtesy of NISSAN NORTH AMERICA, INC.

: Front
CAUTION:
- Be careful not to damage the upper link ball joint boot.
- Do not reuse cotter pin.
Remove steering knuckle from vehicle. Transfer the following components if necessary.
- Wheel sensor bracket
- Brake hose bracket
- Steering stopper bolt
