Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

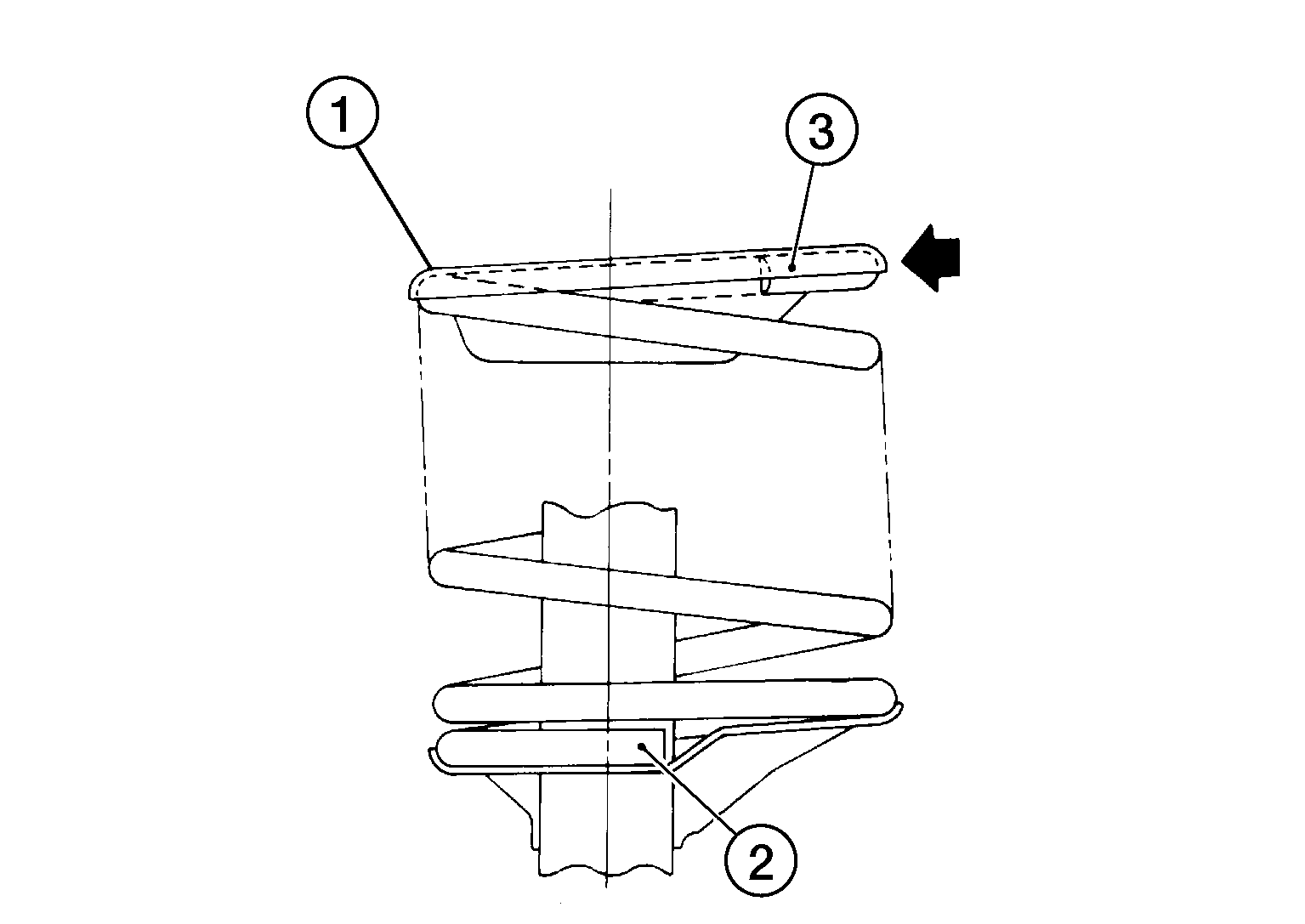

  1. When installing coil spring on shock absorber, the lower end (2) and upper end (3) must be positioned as shown.
    G04134539Courtesy of NISSAN NORTH AMERICA, INC.
    • Shock absorber mounting insulator (1)
    • SYMBOL : Flat tail

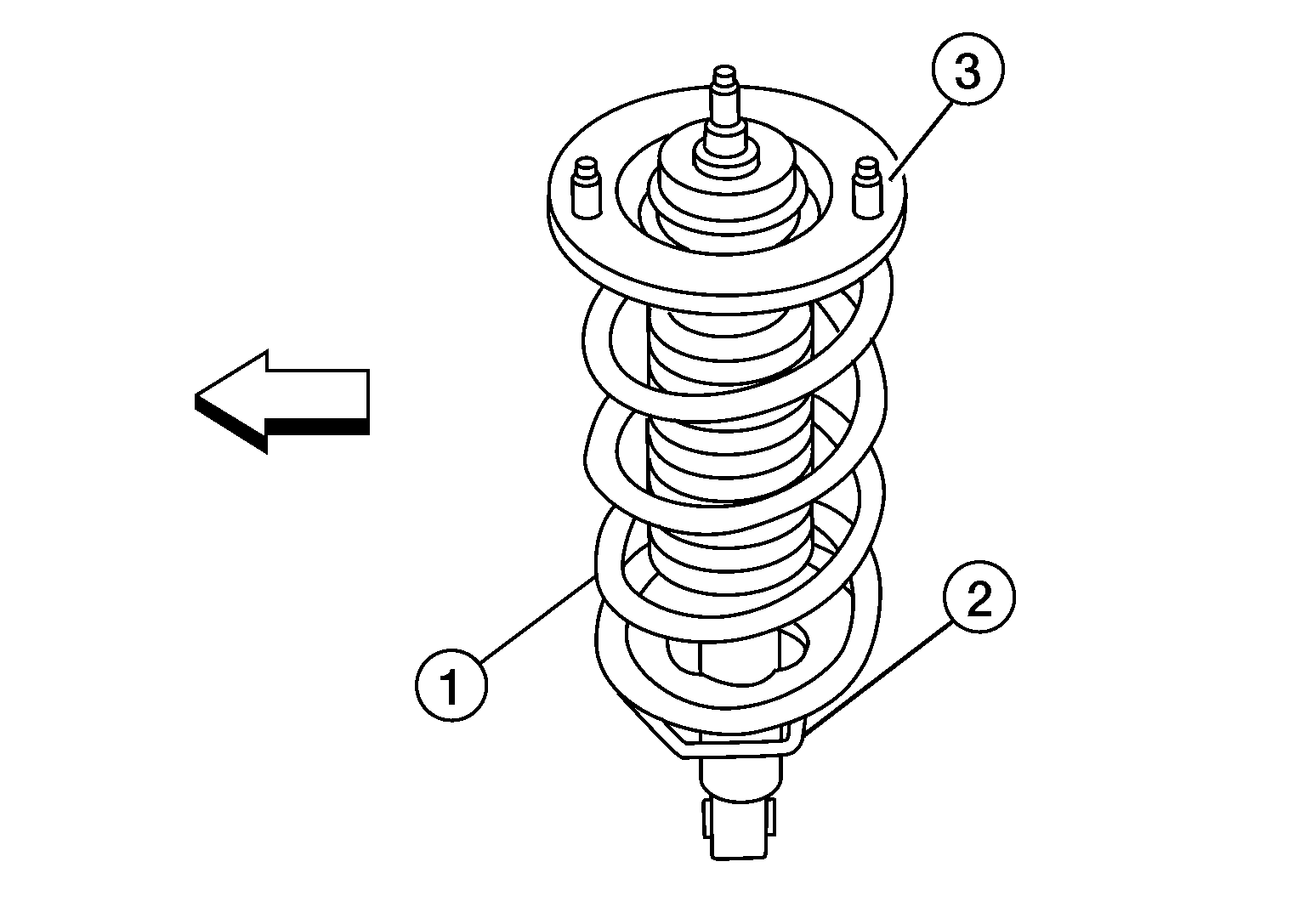

  2. Install upper spring insulator (3) with studs located in line with lower shock absorber mount and in lower seat step (2). The lower seat step (2) in the shock absorber assembly (1) faces inside of vehicle.
    G04134536Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

  3. Tighten the new piston rod lock nut to specification. Refer to Exploded View .
    CAUTION: Do not reuse the piston rod lock nut.
