Commercial Service Tool

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Tool name	Description
Attachment wheel alignment	Courtesy of NISSAN NORTH AMERICA, INC.	Measure wheel alignment a: Screw M24 x 1.5 pitch b: 35 mm (1.38 in) dia. c: 65 mm (2.56 in) dia. d: 56 mm (2.20 in) e: 12 mm (0.47 in)

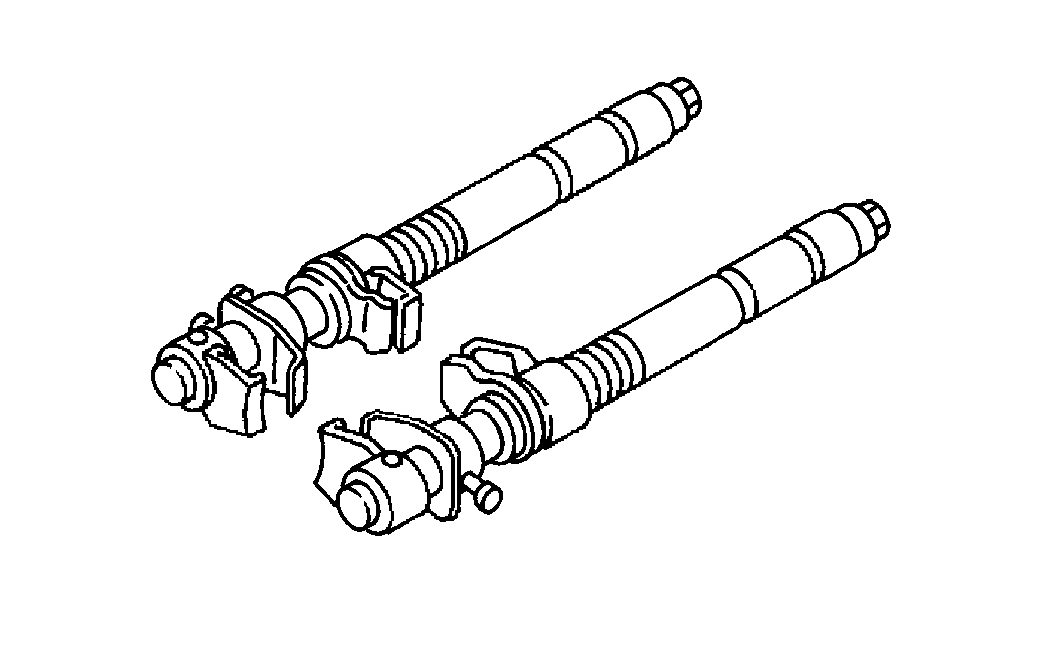

Spring compressor	Courtesy of NISSAN NORTH AMERICA, INC.	Removing and installing coil spring
Power tool	Courtesy of NISSAN NORTH AMERICA, INC.	Loosening nuts, screws and bolts

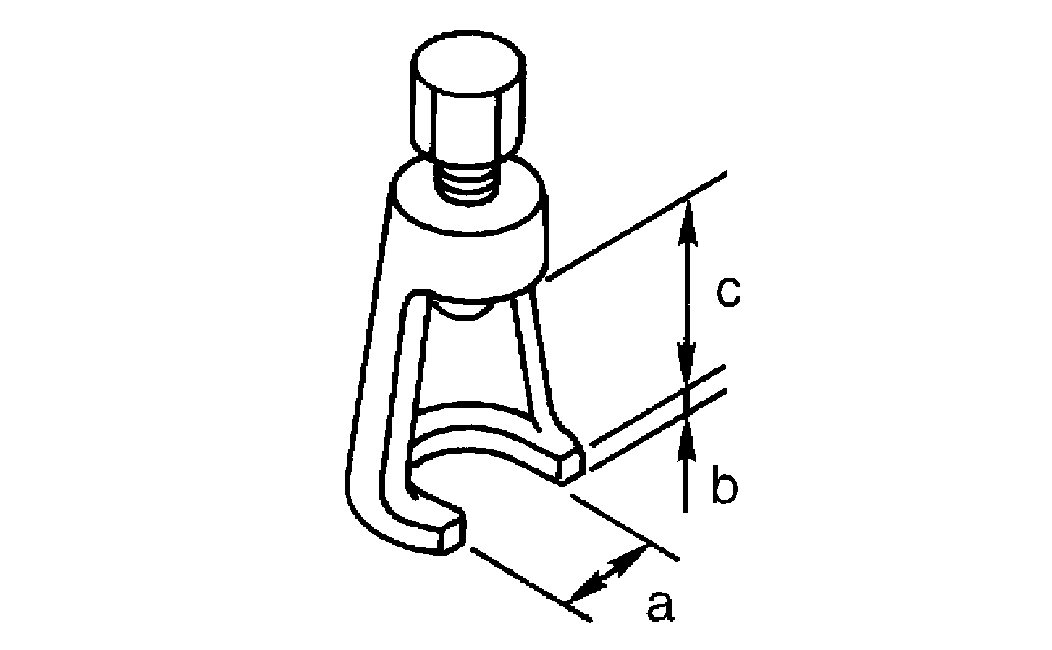

Gear arm puller	Courtesy of NISSAN NORTH AMERICA, INC.	Removing ball joint for steering knuckle a: 34 mm (1.34 in) b: 6.5 mm (0.256 in) c: 61.5 mm (2.421 in)

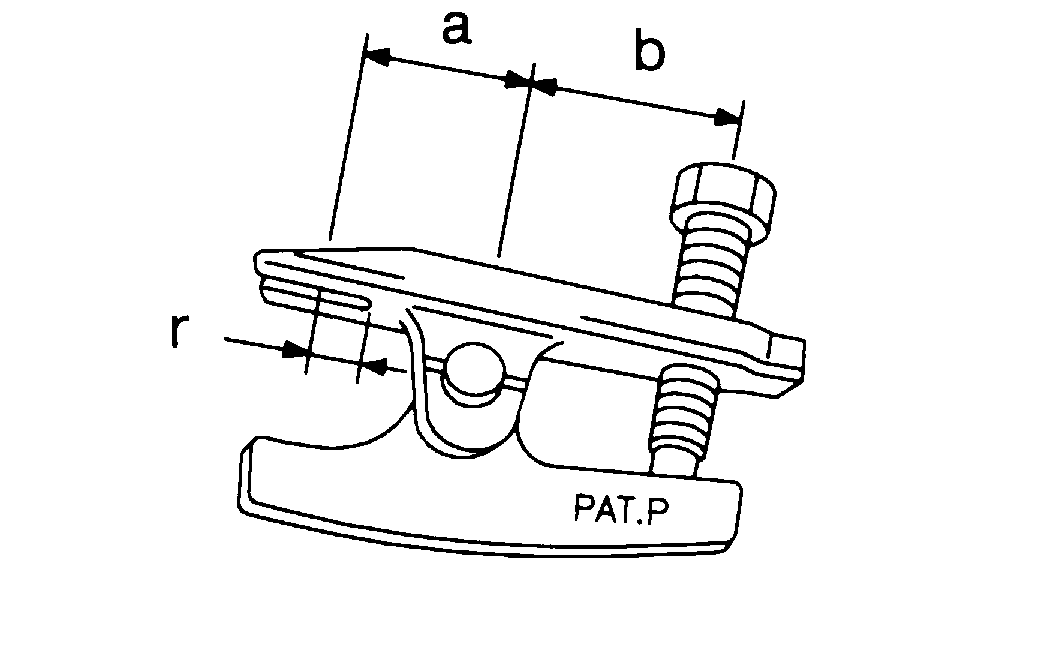

Ball joint remover	Courtesy of NISSAN NORTH AMERICA, INC.	Removing tie-rod outer end a: 33 mm (1.30 in) b: 50 mm (1.97 in) r: 11.5 mm (0.453 in)
