Side Air Bag Satellite Sensor
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

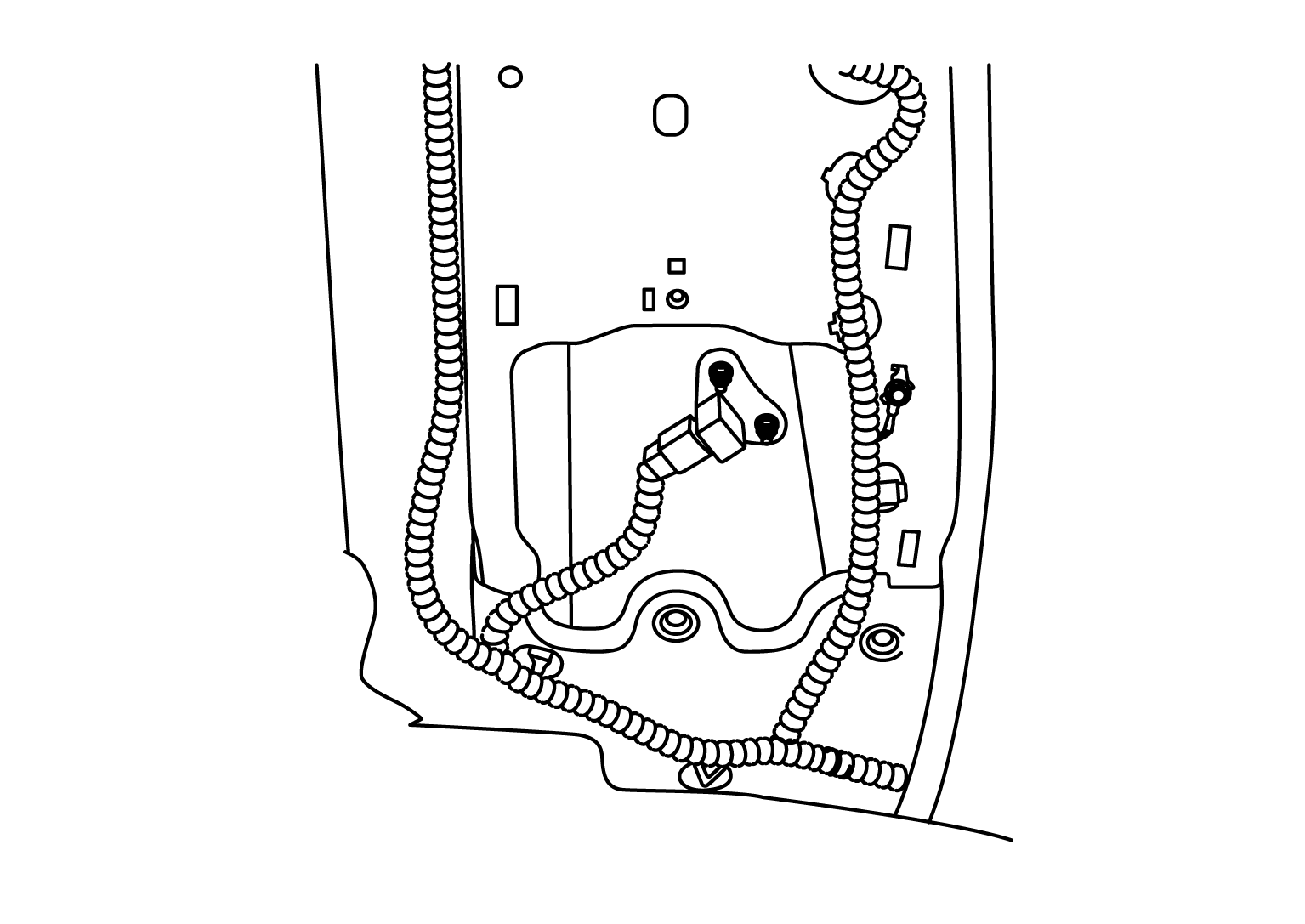

The front side air bag satellite sensors are located on the B-pillar LH (shown) and RH behind the seat belt pretensioners. The rear side air bag satellite sensors are located on the C-pillar LH and RH. The side air bag satellite sensors send signals to the air bag diagnosis sensor unit during a side collision. These sensors may be identified by yellow connectors.
